17 22 010 Removing and installing/replacing heat exchanger for automatic transmission
WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools Required:
NOTE:
For special tools, refer to COOLING SYSTEM - SPECIAL TOOLS - 325i, 325Ci, 325xi (M54/E46)
.
- 17 0 030
Necessary Preliminary Tasks:
- After completing this operation, check transmission fluid level.
- Drain off and top up coolant.
Recycling
Catch and dispose of escaping transmission fluid.
Observe country-specific waste-disposal regulations.

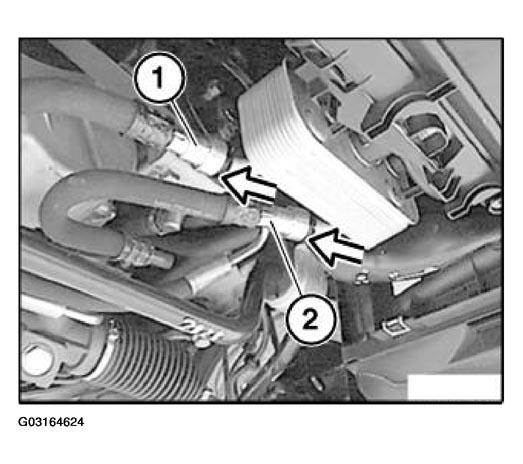

Unlock lines (1 and 2) with special tool 17 0 030 and detach.
Catch and dispose of escaping transmission fluid.

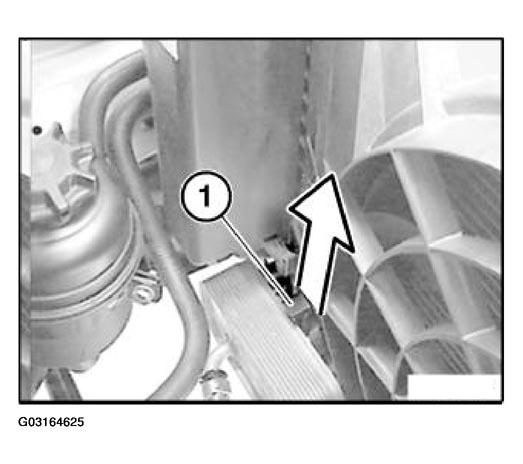

Pull lock (1) upwards and detach heat exchanger towards rear.
Installation:
Press lock (1) downwards before pushing on heat exchanger. The lock must snap audibly into place when the heat exchanger is forced on.

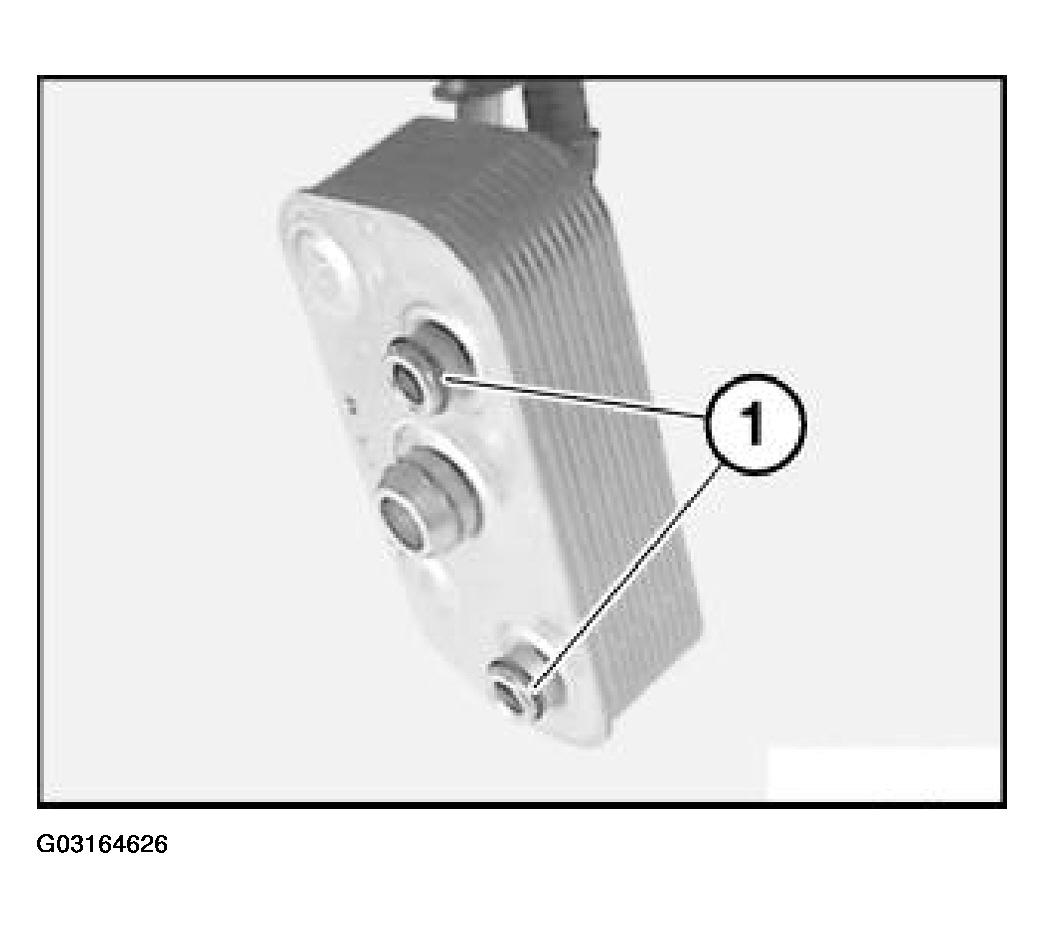

Check sealing rings (1), replace if necessary.
