Arrangement Of Flushing Device For Transmissions A5S 310Z, A5S 560Z, A5S 360R/390R, A4S 200R, A5S 325Z, GA6HP26Z
WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

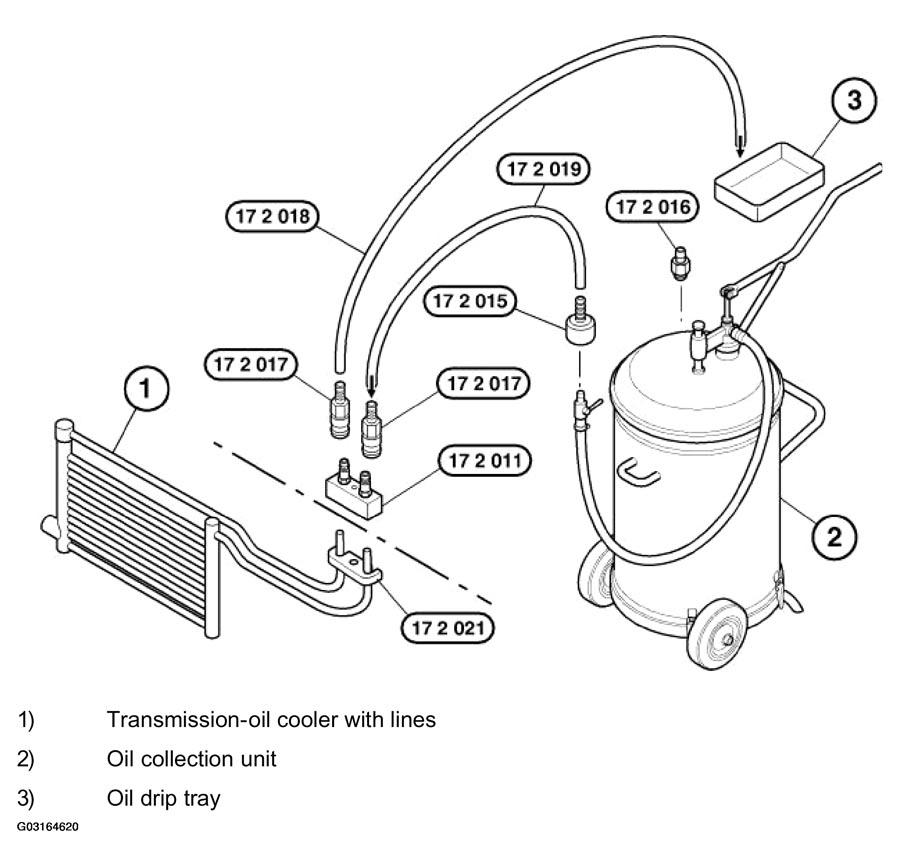

Fig 1: Identifying Arrangement Of Flushing Device For Transmissions A5S 310Z, A5S 560Z, A5S 360R/390R, A4S 200R, A5S 325Z, GA6HP26Z
17 2 011 Adapter for connecting transmission-side oil cooler lines (1).
17 2 015 Connection for oil collection unit (2), manufacturer: Deutsche Tecalemit or 17 2 016 Connection for oil collection unit (2), manufacturer: Horn.
17 2 017 Quick-release coupling (2 pieces).
17 2 018 Hose to oil drip tray (3).
17 2 019 Hose to oil collection unit (2).
17 2 021 Mounting plate for adapter 17 2 011 for transmissions A5S 325Z, GA6HP26Z.
