13 63 590 Replacing fuel pump relay

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

Turn off ignition.

Remove glovebox on right. See 51 16 360 REMOVING AND INSTALLING RIGHT GLOVE BOX

Unclip glovebox light (1) in opening (2).

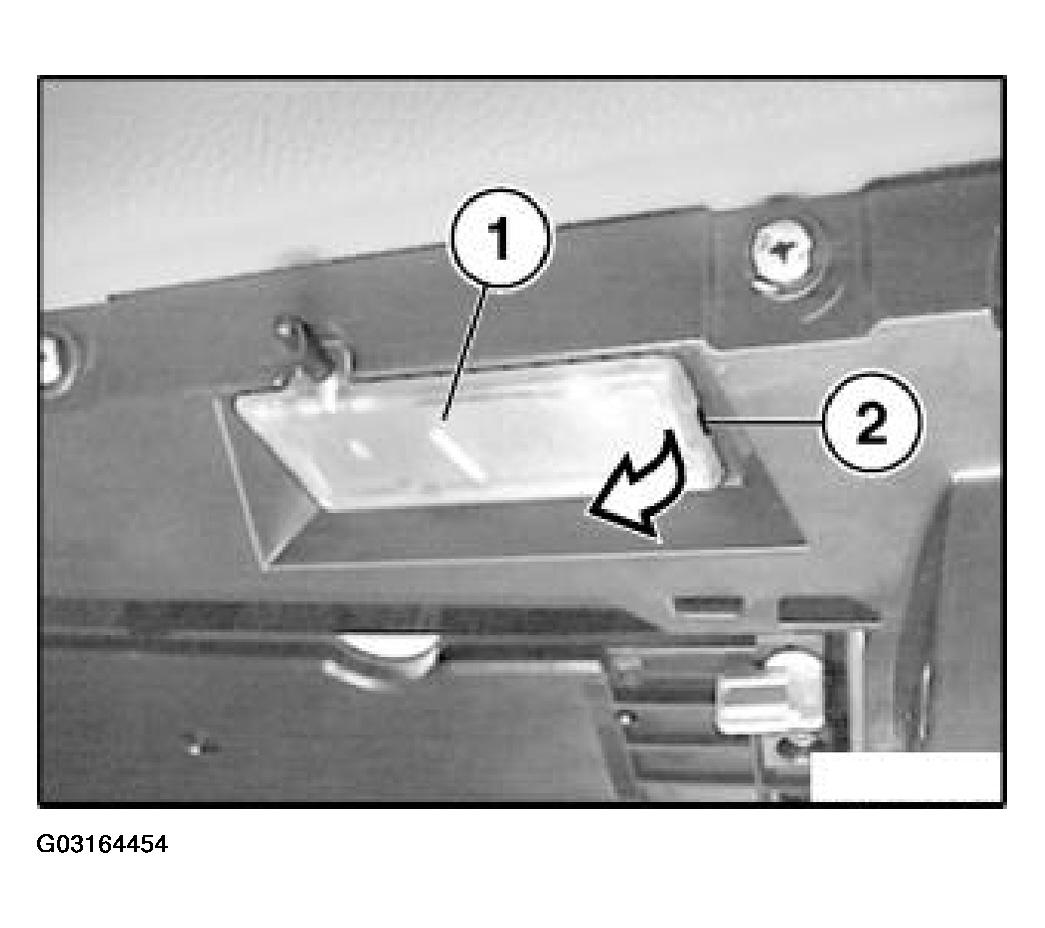

Fig 1: Uncliping Glovebox Light

G03164454

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection of glovebox light and remove light.

Release screws (1) and pin (2).

Remove insert (3) downwards.

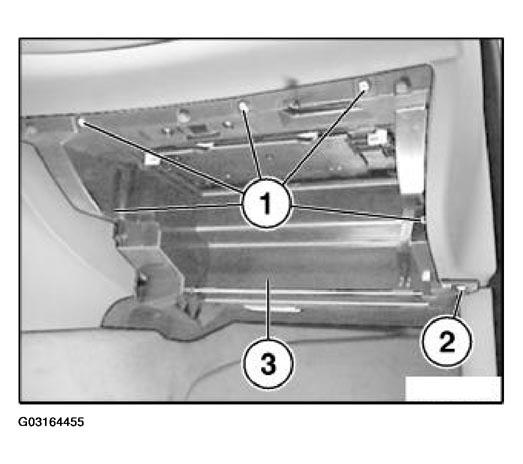

Fig 2: Releasing Screws, Pin And Insert

G03164455

Courtesy of BMW OF NORTH AMERICA, INC.

Feed out wire (1) for glovebox light from guides (2).

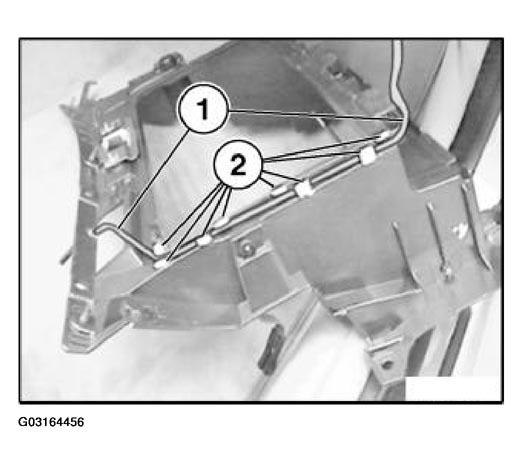

Fig 3: Feeding Out Wire For Glovebox Light From Guides

G03164456

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connections (1 and 2) on general module.

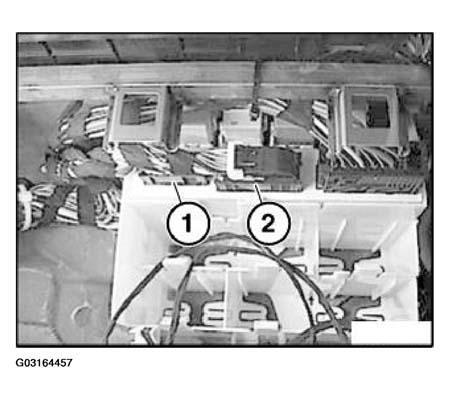

Fig 4: Disconnecting Plug Connections On General Module

G03164457

Courtesy of BMW OF NORTH AMERICA, INC.

Pull fuel pump relay (1) out of pin base.

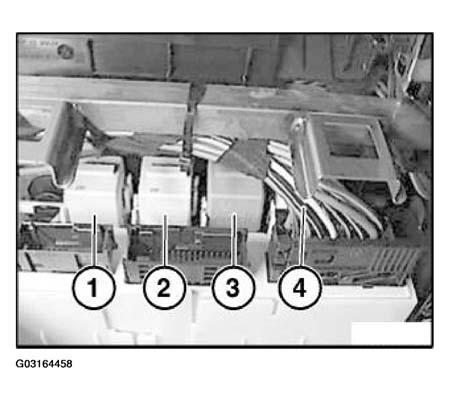

Fig 5: Pulling Fuel Pump Relay Out Of Pin Base

G03164458

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Interrogate fault memory of DME control unit. Check stored fault messages. Rectify faults. Then clear fault memory.

For additional instructions on troubleshooting, refer to DIS.
