13 53 540 Replacing, sealing fuel hoses: Recycling

Catch and dispose of escaping fuel.

Observe country-specific waste-disposal regulations.

Version With Hose Clamps:

Release hose clamps.

Remove hoses (1) and (2).

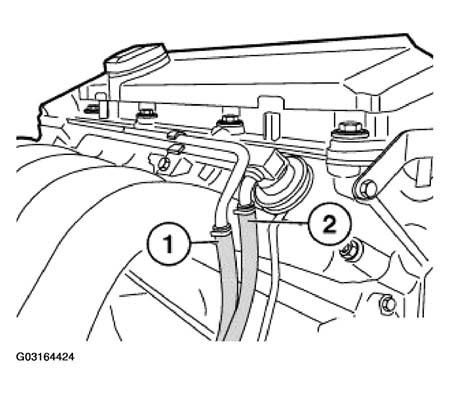

Fig 1: Removing Hoses

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

1. Fuel hoses and hose clamps must be replaced each time they are removed!

Version With Compressed Air Connection:

Blow fuel back into tank with a short blast of compressed air (max. 3 bar) at compressed air connection (1).

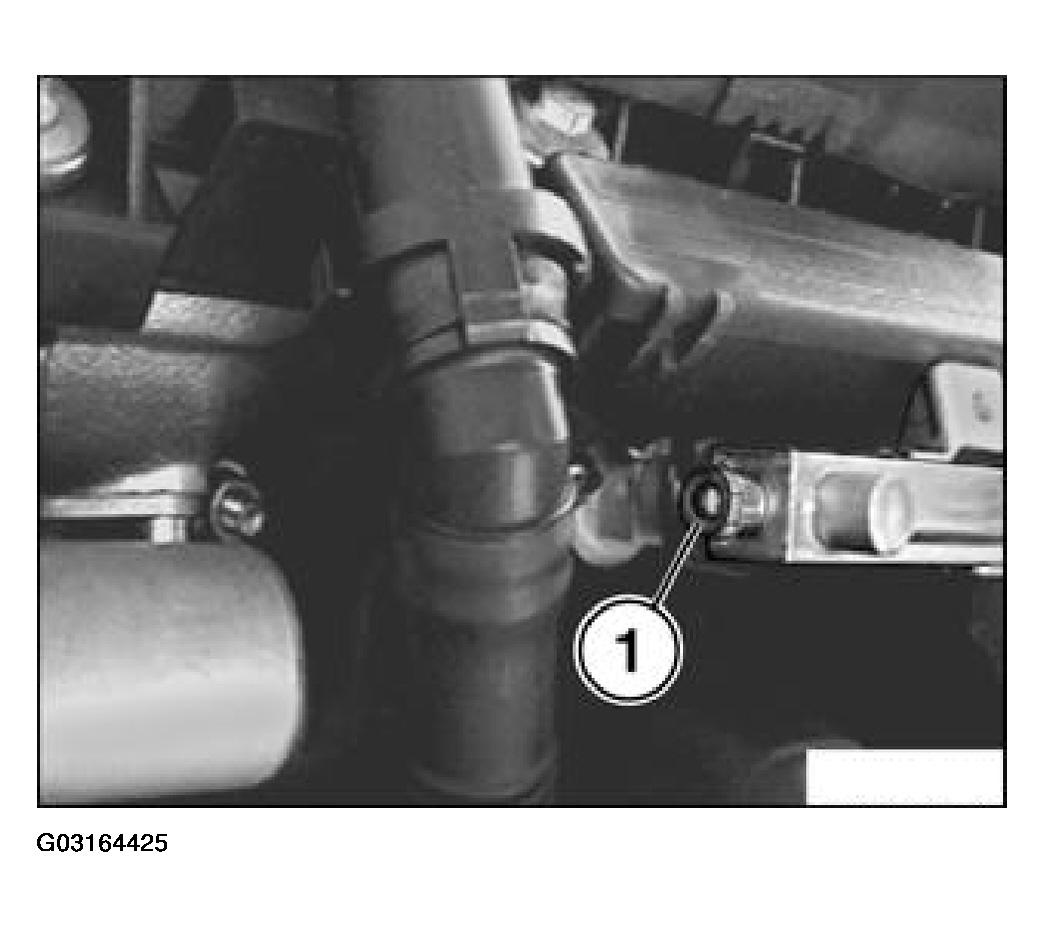

Fig 2: Identifying Compressed Air Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Version, Fuel Hoses Without Integrated Unlocking Facility:

Unlock fuel hoses with special tool 16 1 050 and detach hoses.

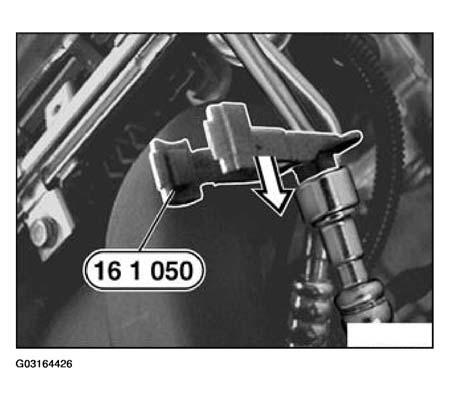

Fig 3: Unlocking Fuel Hoses With Special Tool 16 1 050

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

1. Check O-ring in fuel hose and sealing surfaces on fuel lines for damage; replace components if necessary.
2. Coat O-ring for assembly with antifriction agent.

Version, Fuel Hoses With Integrated Unlocking Facility:

Press fuel hose (1) downwards and keep pressed.

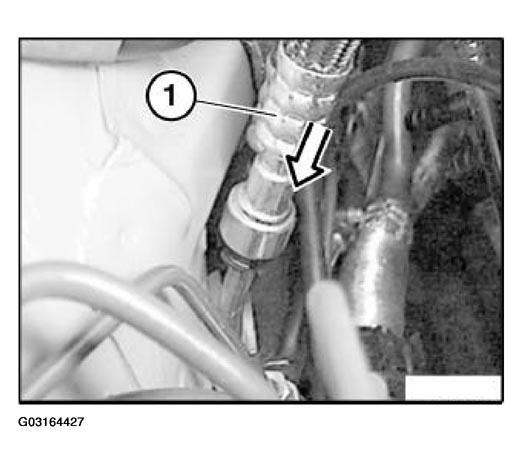

Fig 4: Pressing Fuel Hose Downwards

Courtesy of BMW OF NORTH AMERICA, INC.

Press unlocking ring (2) upwards, keep pressed and detach fuel hose (1).

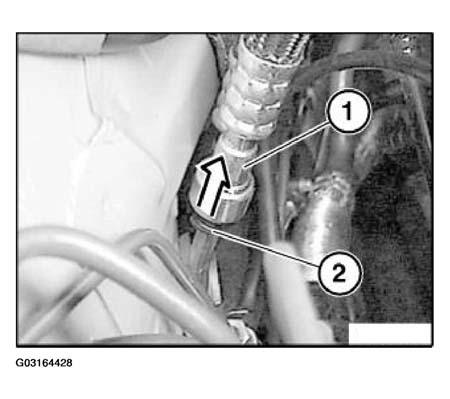

Fig 5: Pressing Unlocking Ring (2) Upwards, Keeping Pressed And Detach Fuel Hose (1)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

1. Check O-ring in fuel hose and sealing surfaces on fuel lines for damage; replace components if necessary.
2. Coat O-ring for assembly with antifriction agent.

Fuel Hoses With Quick-Release Couplings:

Seal fuel hoses (1) with special tool 13 5 281.

Seal fuel lines (2) with special tool 13 5 282.

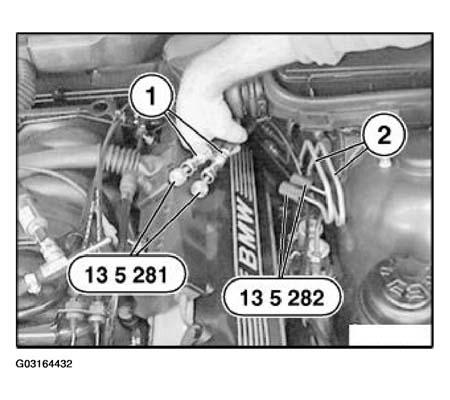

Fig 6: Seal fuel hoses with special tools 13 5 281 And 13 5 282

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

1. Check O-ring in fuel hose and sealing surfaces on fuel lines for damage; replace components if necessary.
2. Coat O-ring for assembly with antifriction agent.
