13 90 500 Replacing tank venting valve (M52TU, M54)

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

Turn off ignition.

Location:

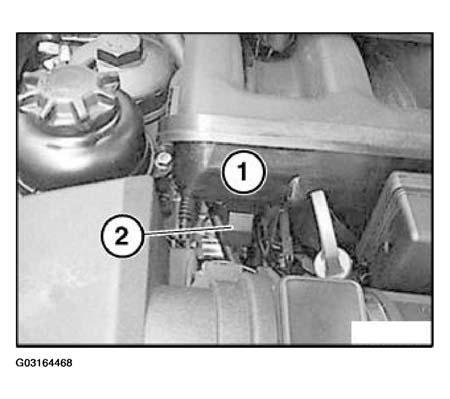

Tank venting valve (2) is fitted at front below intake air manifold (1).

Fig 1: Identifying Tank Venting Valve Location

G03164468

Courtesy of BMW OF NORTH AMERICA, INC.

Remove intake filter housing, refer to 13 71 000 REMOVE AND INSTALLING INTAKE FILTER HOUSING (M52TU, M54) .

Remove intake hose, refer to 13 54 250 REPLACING INTAKE HOSE (BETWEEN AIR-MASS FLOW SENSOR AND CONNECTING PIECE) (M54) or 13 54 251 REPLACING INTAKE HOSE (BETWEEN CONNECTING PIECE AND THROTTLE ASSEMBLY) (M54) .

Z3, E39, E46 and E53:

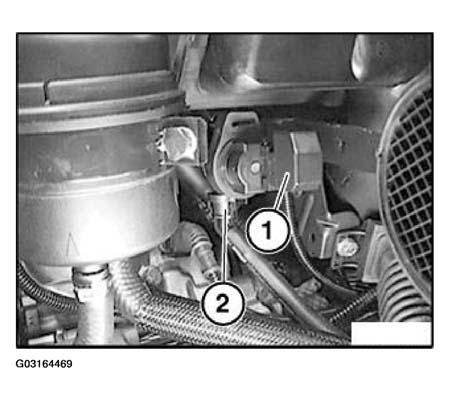

Disconnect plug connection (1).

Fig 2: Disconnecting Plug Connection

G03164469

Courtesy of BMW OF NORTH AMERICA, INC.

Release vent hose (2). To do so, press locking bar and detach vent hose.

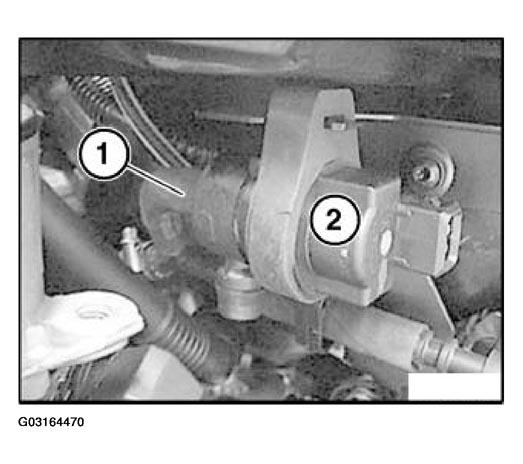

Detach hose (1) from tank venting valve (2).

NOTE: Illustration shows removed supply tank for power steering.

Fig 3: Detaching Hose From Tank Venting Valve

G03164470

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Interrogate fault memory of DME control module. Check stored fault messages. Rectify faults. Then clear fault memory.
