12 14 524 Replacing pulse generator on exhaust camshaft (M52TU, M54, M56)

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, 2004 BMW 325xi, and 2004 BMW 325i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Check stored fault messages.
Switch off ignition.

Location:

On cylinder head at front on exhaust side.

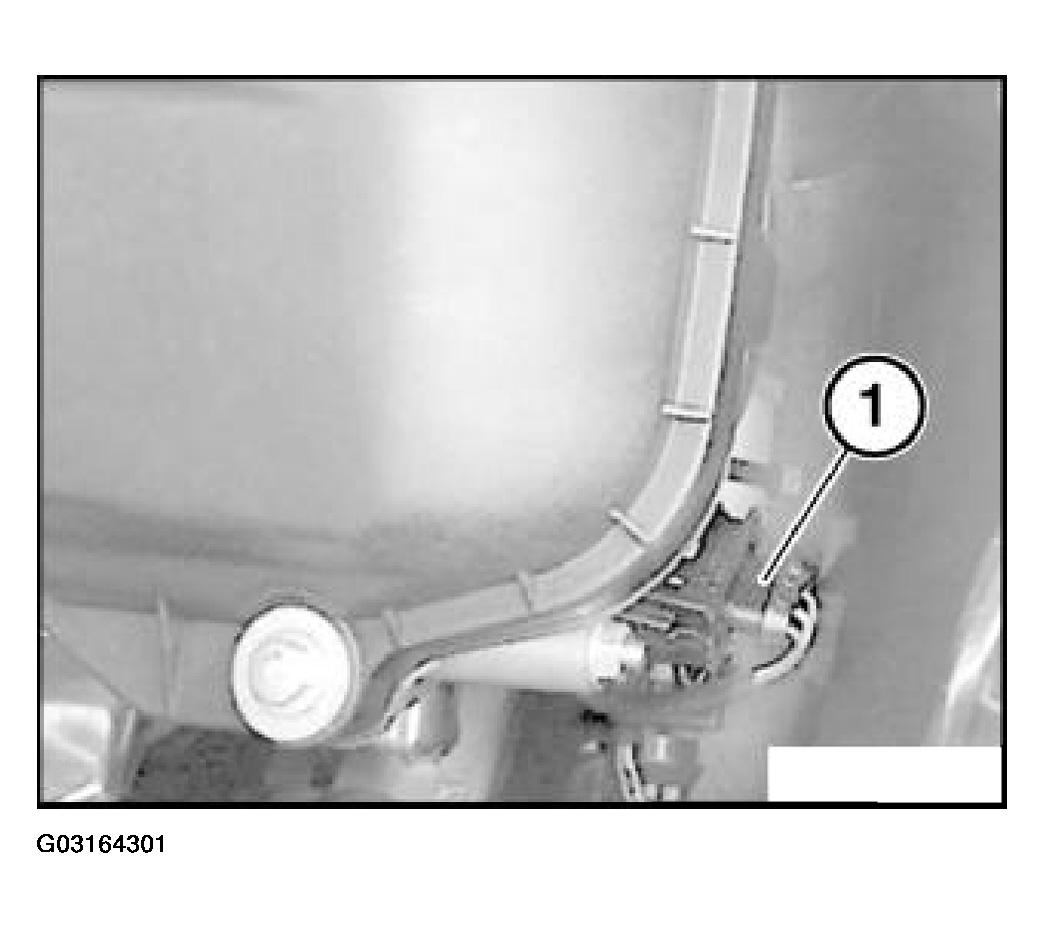

Unlock plug (1) and detach from pulse generator.

Fig 1: Unlocking Plug And Detach From Pulse Generator

Courtesy of BMW OF NORTH AMERICA, INC.

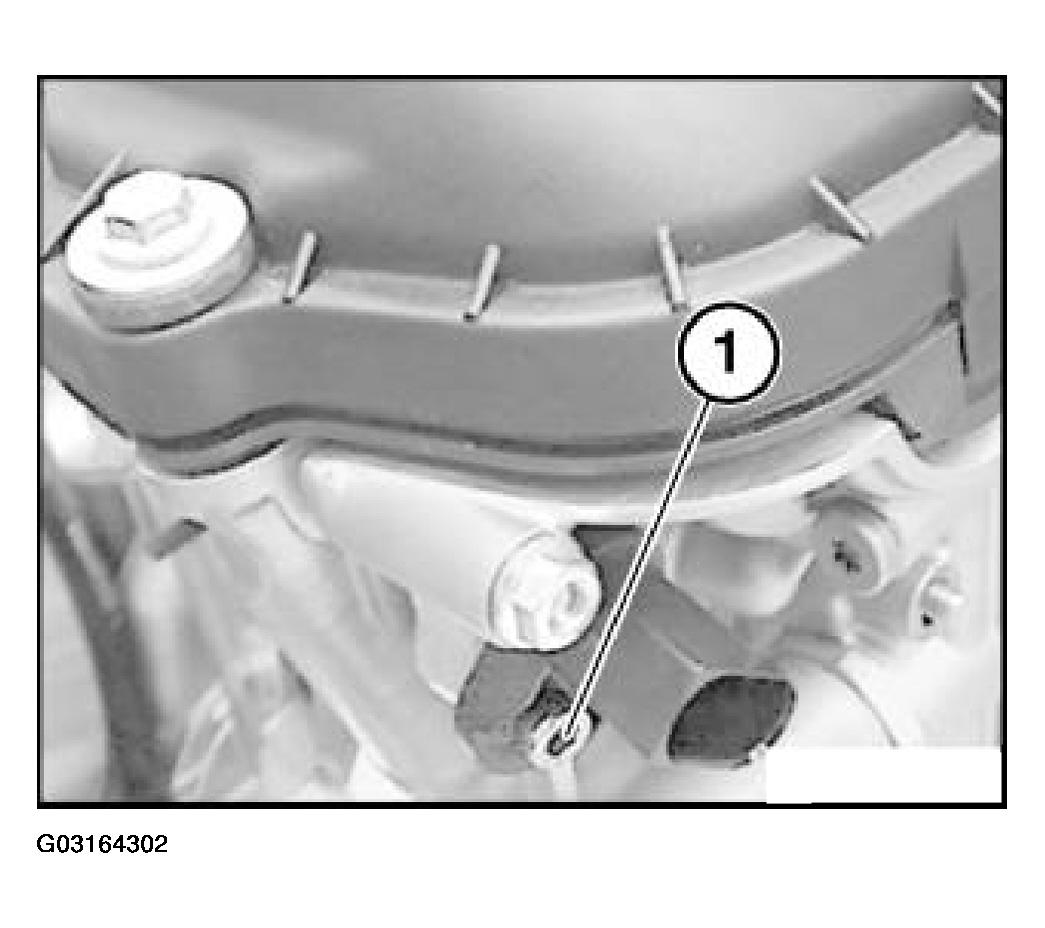

Release screw (1) on cylinder head.

Fig 2: Releasing Screw On Cylinder Head

Courtesy of BMW OF NORTH AMERICA, INC.

Remove pulse generator.

Installation:

Check sealing ring for possible damage, replace if necessary.

NOTE: Interrogate fault memory of DME control unit.
Rectify faults. Now clear the fault memory.
