Vibration damper and hub for vibration damper are one part:

Fig 1: Identifying Vibration Damper And Hub

G03163994

Courtesy of BMW OF NORTH AMERICA, INC.

Screw special tool 11 8 190 to special tool 11 8 200.

Fig 2: Identifying Special Tool 11 8 190 And 11 8 200

G03163995

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Special tool 11 8 200 must snap into place in openings (1).

Fig 1: Special Tool 11 8 200 Must Snap Into Place In Openings (1)

G03163996

Courtesy of BMW OF NORTH AMERICA, INC.

When releasing and tightening down central bolt, grip special tool 11 8 190 with assistance of a second person.

Insert special tool 11 8 200 in openings on vibration damper and turn counterclockwise so that counter-supports snap into place on vibration damper.

Release central screw (1).

Fig 1: Releasing Central Screw

G03163997

Courtesy of BMW OF NORTH AMERICA, INC.

Feed out special tools 11 8 190/11 8 200. Remove central screw and washer.

Carefully detach vibration damper (1) by hand.

Fig 1: Detaching Vibration Damper

G03163998

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: If vibration damper cannot be detached by hand: Insert special tool 11 8 200 in openings on vibration damper and turn clockwise so that counter-supports snap into place on vibration damper.

Fig 1: Identifying Special Tool 11 8 200

G03163999

Courtesy of BMW OF NORTH AMERICA, INC.

Screw out spindle (1) on special tool 11 8 210 as far as possible.

Z3 only:

Screw in spindle (1) on special tool 11 8 210 approx. 15 mm and screw out again only after installation between special tool 11 8 200 and cooler.

Fig 1: Screwing In Spindle

G03164000

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Risk of damage. Protect cooler against damage. Carefully install special tool 11 8 210.

Screw special tool 11 8 210 to special tool 11 8 200.

Detach vibration damper by turning spindle (1) on special tool 11 8 210.

Fig 1: Detaching Vibration Damper By Turning Spindle

G03164001

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check featherkey (1) for damage and correct installation position.

Fig 1: Checking Featherkey For Damage

G03164002

Courtesy of BMW OF NORTH AMERICA, INC.

Replace radial seal in lower timing case cover.

Installation:

Align groove (1) in vibration damper to featherkey.

Fit vibration damper.

Fig 1: Aligning Groove In Vibration Damper

G03164003

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

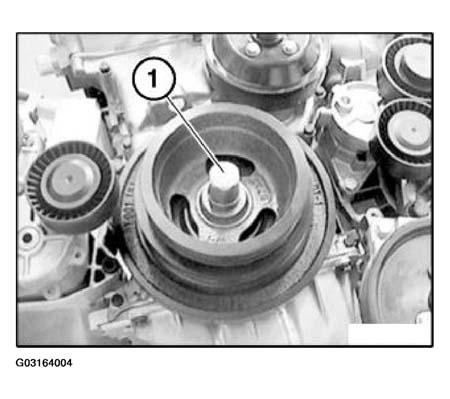

Replace central screw (1).

Install central screw and washer.

Fig 1: Replacing Central Screw

G03164004

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Screw special tool 11 8 190 to special tool 11 8 200.

Fig 1: Identifying Special Tool 11 8 190 And 11 8 200

G03164005

Courtesy of BMW OF NORTH AMERICA, INC.

Insert special tool 11 8 200 in openings on vibration damper and turn clockwise so that counter-supports snap into place on vibration damper.

Tighten down central screw (1).

Tightening torque, refer to 11 23 2AZ in ENGINE - TIGHTENING TORQUES .

Fig 1: Tightening Down Central Screw

G03164006

Courtesy of BMW OF NORTH AMERICA, INC.
