11 31 005 Checking camshaft timing (M52TU / M54 / M56)

Special tools required:

• 00 9 250
• 11 2 300
• 11 3 240
• 11 3 450
• 11 4 220

Necessary preliminary tasks:

• Remove fan impeller with fan clutch. See 11 52 020 Removing and installing/replacing fan clutch (S52 / S54 / M52 / M52TU / M54 / M56)
• E60: Remove fan cowl with electric fan
• Remove cylinder head cover. See 11 12 000 Removing and installing, sealing cylinder head cover (M52TU / M54 / M56)
• Remove all spark plugs. See 12 12 011 REPLACING ALL SPARK PLUGS

Detach cover for inlet camshaft.

Fig 1: Detaching Cover For Inlet Camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

Remove cylinder for chain tensioning piston.

Fig 2: Removing Cylinder For Chain Tensioning Piston

Courtesy of BMW OF NORTH AMERICA, INC.

Install special tool 11 4 220.

Fig 3: Installing Special Tool 11 4 220

Courtesy of BMW OF NORTH AMERICA, INC.

Fit adjusting screw to bow cover.

Preload tensioning rail with special tool 11 4 220 by rotating adjusting screw with special tool 00 9 250 or standard torque wrench to 0.7 Nm.

Fig 4: Identifying Special Tool 11 4 220 And 00 9 250

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew oil pressure pipe.

Fig 5: Unscrewing Oil Pressure Pipe

Courtesy of BMW OF NORTH AMERICA, INC.

Mount special tool 11 3 450 with banjo bolt of oil pressure line.

Fig 6: Mounting Special Tool 11 3 450

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 7: Identifying VANOS Adjustment Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Connect compressed air (2 to 8 bar).

Fig 8: Connecting Compressed Air

Courtesy of BMW OF NORTH AMERICA, INC.

With compressed air supply connected, crank engine at least two revolutions in direction of rotation until cam tips on inlet and exhaust camshafts on 1st cylinder face each other.

Fig 9: Identifying Cam Tips

Courtesy of BMW OF NORTH AMERICA, INC.

Pull dust guard out of the special tool bore.

Fig 10: Pulling Dust Guard

Courtesy of BMW OF NORTH AMERICA, INC.

Secure crankshaft with special tool 11 2 300 in TDC firing position of 1st cylinder.

Fig 11: Installing Special Tool 11 2 300

Courtesy of BMW OF NORTH AMERICA, INC.

Automatic transmissions only:

Illustration does not show automatic transmission.

Fig 12: Identifying Special Tool Bore And Large Bore

Courtesy of BMW OF NORTH AMERICA, INC.

If special tool 11 2 300 is secured in the correct bore (1), the engine can no longer be cranked at the central bolt.

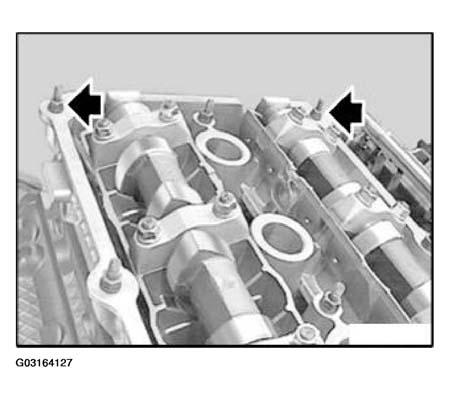

Unscrew studs.

Fig 13: Unscrewing Studs

Courtesy of BMW OF NORTH AMERICA, INC.

Place special tool 11 3 240 on camshafts.

Fig 14: Placing Special Tool 11 3 240

Courtesy of BMW OF NORTH AMERICA, INC.

The timing must be reset if the special tool 11 3 240 protrudes to the exhaust side.

Fig 15: Identifying Special Tool 11 3 240

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, adjust camshaft timing.

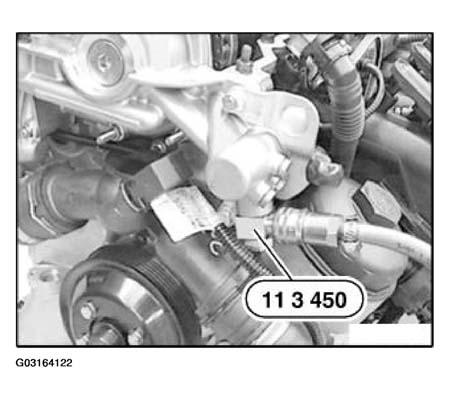

Detach compressed air connection. Remove special tool 11 3 450.

Fig 16: Detaching Compressed Air Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Fit oil pressure line with new seals.

Fig 17: Fitting Oil Pressure Line With New Seals

Courtesy of BMW OF NORTH AMERICA, INC.

Tightening torque, refer to 11 36 2AZ in ENGINE - TIGHTENING TORQUES .

Remove special tool 11 3 240.

Fig 18: Removing Special Tool 11 3 240

Courtesy of BMW OF NORTH AMERICA, INC.

Remove special tool 11 2 300.

Install dust guard from inspection bore.

Fig 19: Installing Dust Guard From Inspection Bore

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten and remove special tool 11 4 220.

Fig 20: Unfastening And Removing Special Tool 11 4 220

Courtesy of BMW OF NORTH AMERICA, INC.

Install cylinder for chain tensioning piston.

Fig 21: Identifying Cylinder For Chain Tensioning Piston

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
