67 62 050 Removing and installing/replacing drive unit for rear left or right hinged window

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Remove trim on side section of rear seat backrest, refer to 51 43 ... REMOVING AND INSTALLING/REPLACING TRIM ON REAR SEAT BACKREST SIDE SECTION (COUPE) .

Unfasten screws.

NOTE: Grip cover (1) and drive unit (2) firmly.

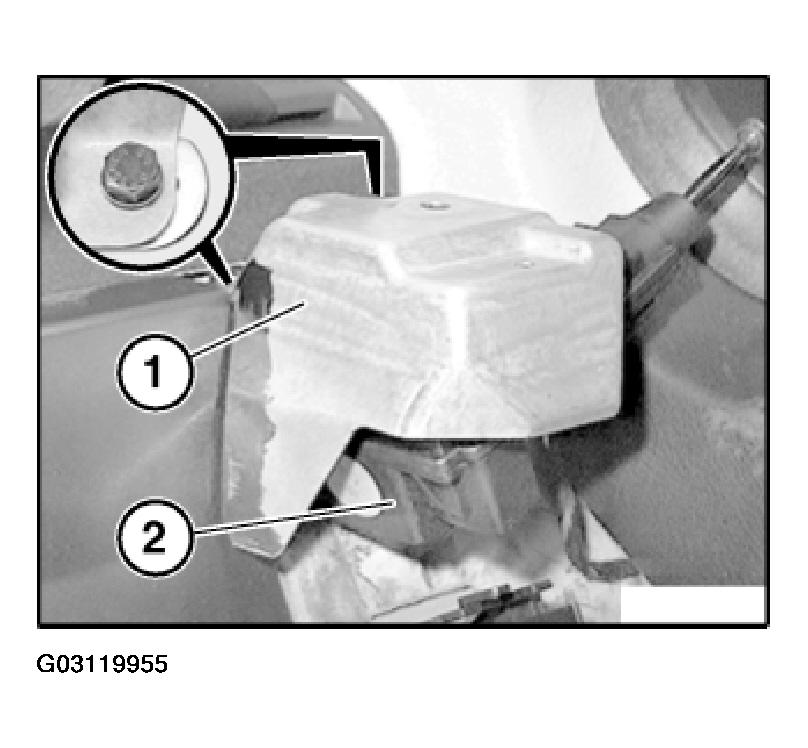

Fig 1: Locating Cover And Drive Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1) and remove drive unit (2).

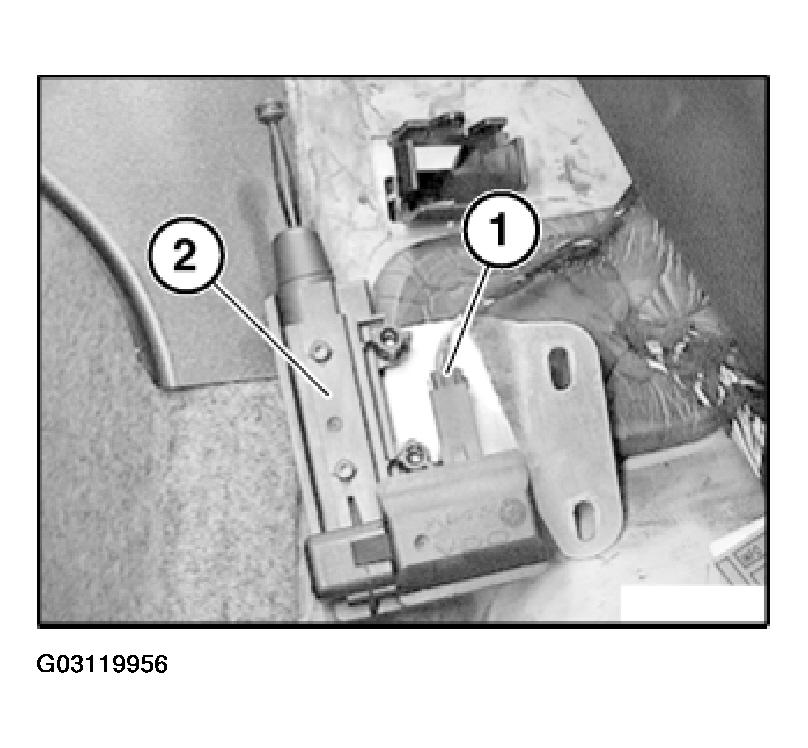

Fig 2: Removing Drive Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Slide cover (1) in direction of arrow.

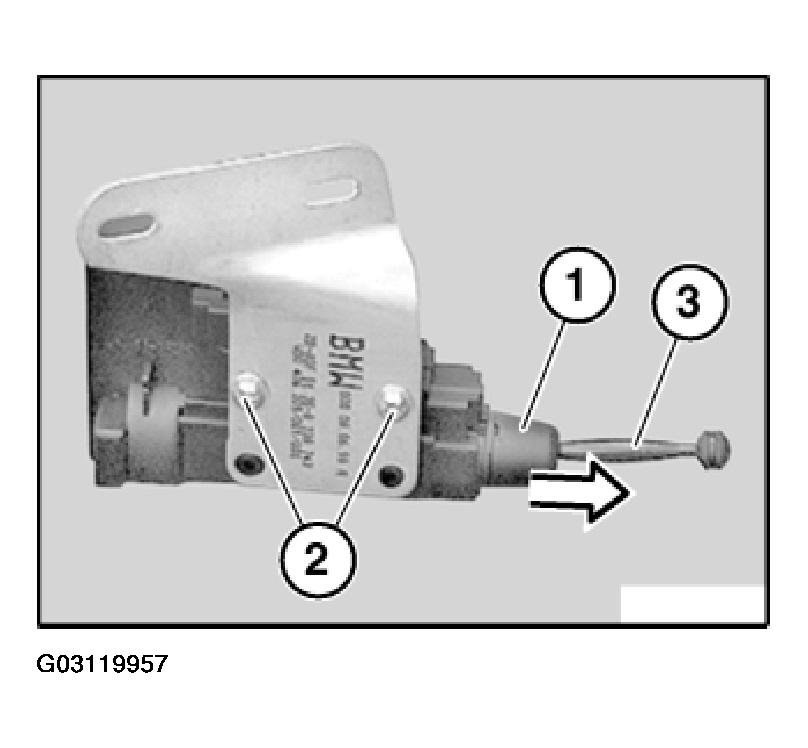

Fig 3: Removing Connecting Rod

Courtesy of BMW OF NORTH AMERICA, INC.

Remove connecting rod (3). If necessary, replace O-rings.
Release screws (2) and remove holder.
