67 62 000 Removing and installing / replacing flat motor for front left or right power window unit

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317

Necessary preliminary tasks:

Remove front door trim, refer to 51 41 000 REMOVING AND INSTALLING FRONT LEFT OR RIGHT DOOR TRIM PANEL (COUPE, CONVERTIBLE)

NOTE: To remove the flat motor, it is necessary to detach the acoustic insulation in the lower area only.

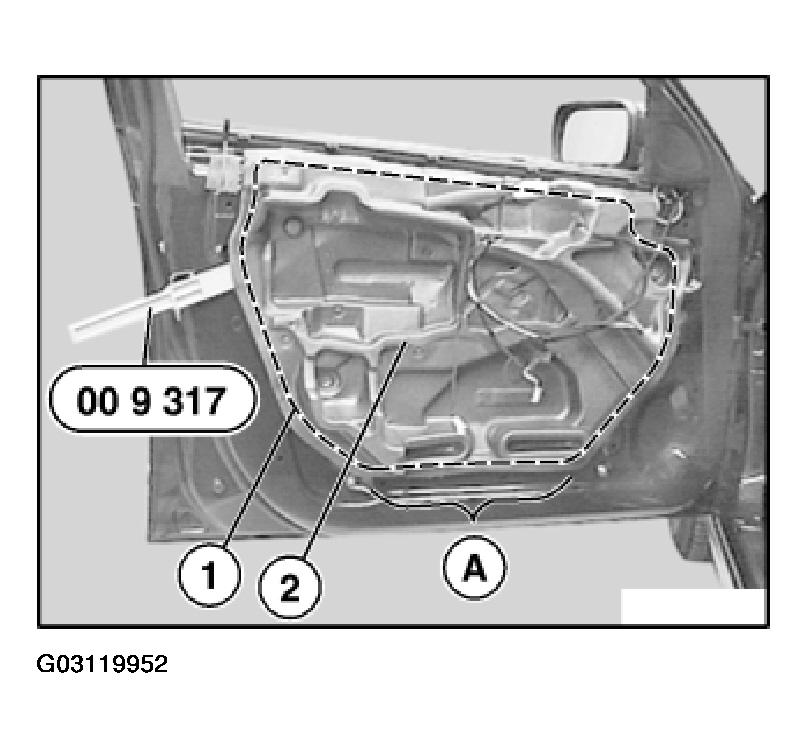

Lever out sealing bead (1) of acoustic insulation (2) with special tool 00 9 317.

Fig 1: Removing Sealing Bead Of Acoustic Insulation With Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Work with particular care in area (A) otherwise acoustic insulation (2) will tear and must be replaced.

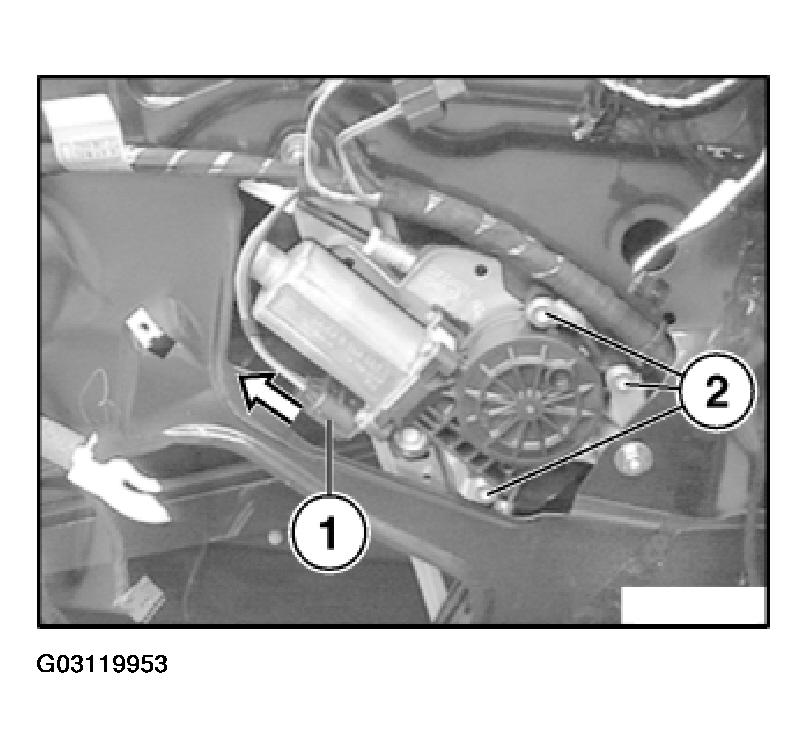

Unfasten plug connection (1) and disconnect.

Fig 2: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (2).

Installation:

Tightening torque, 4.5 +/- 0.5 Nm.

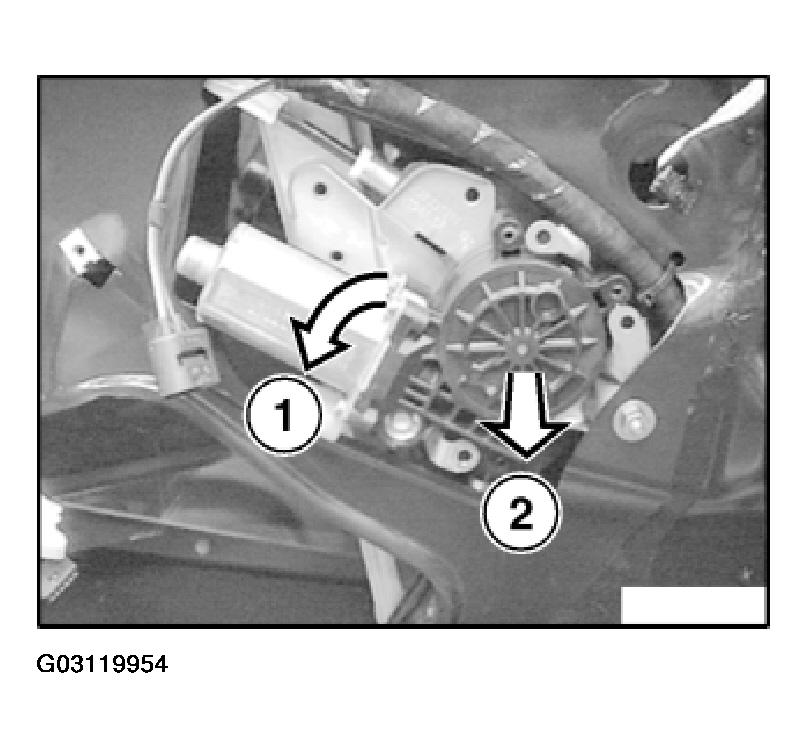

Turn flat motor slightly and lift out in direction of arrow.

Fig 3: Removing Flat Motor

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Make sure door window glass has not been fully moved downwards.

Convertible from 09/2003:

Replacement:

A normalization must be carried out in order to activate anti-trapping protection.

Operating sequence for normalization:

Open corresponding window completely.
Press corresponding power window switch into "Close one-touch operation" (second switch stage).
Once the upper end position has been reached, hold power window switch down for approx. 1 second more.

Normalization is thus completed.

NOTE: Carry out function check (one-touch function, anti-trapping protection and, if necessary, comfort function).
