67 31 531 Removing and installing/replacing drive for backrest angle adjustment (front seat removed)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Saloon/sedan, coupe, touring:

Disconnect plug connection (1).

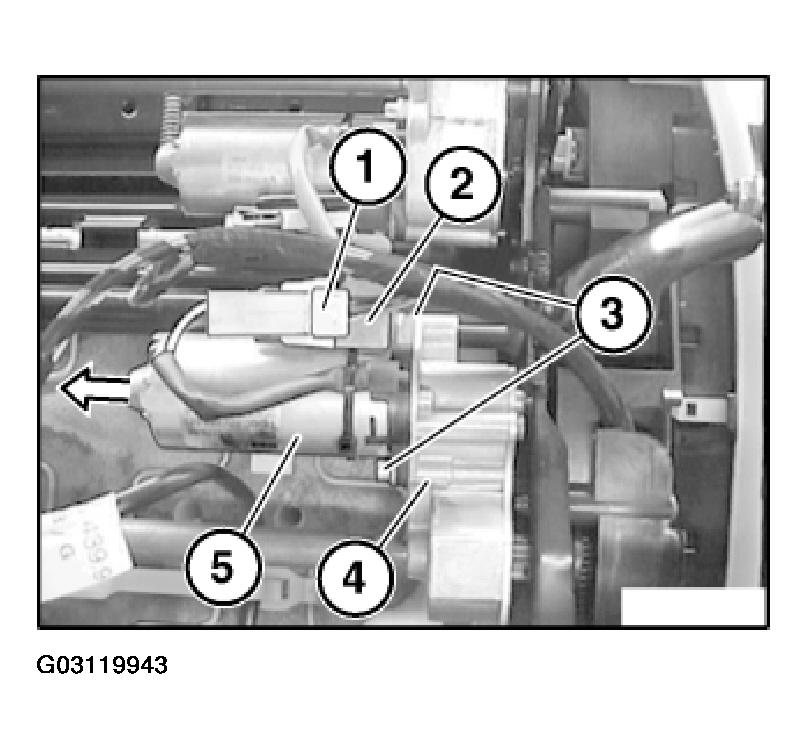

Fig 1: Removing Drive For Backrest Angle Adjustment

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Secure drive for backrest angle adjustment (5) against falling out.

Release screws (3).

Remove drive for backrest angle adjustment (5) with fixture for plug connection (2) in direction of arrow from flange (4).

If necessary, remove inner drive shaft from drive for backrest angle adjustment (5).

Installation:

Make sure drive shaft (1) is correctly seated.

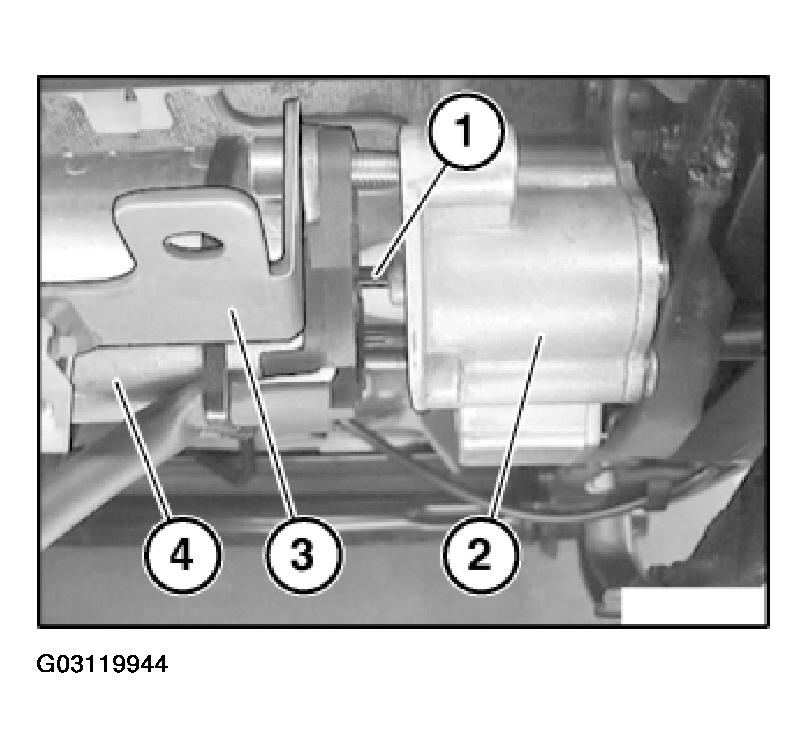

Fig 2: Checking Drive For Seat Height On Flange

Courtesy of BMW OF NORTH AMERICA, INC.

Ensure fixture for plug connection (3) and drive for backrest angle adjustment (4) on flange (2) are correctly seated.

Convertible:

Remove rear panel on front seat backrest.

Unhook backrest cover (1) from backrest frame (2) as illustrated and fold over.

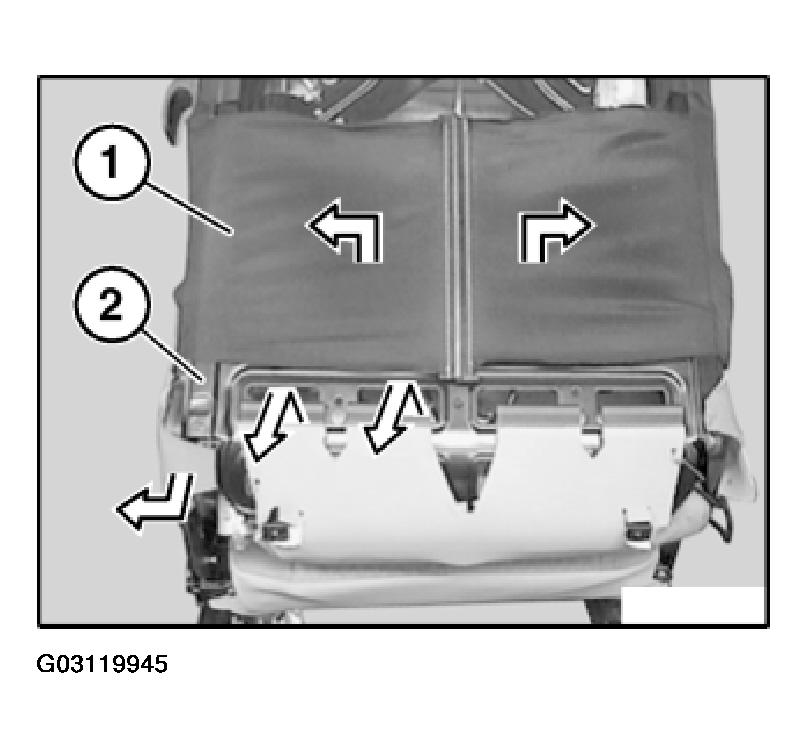

Fig 3: Unhooking Backrest Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Turn plug connection (1) in direction of arrow and unclip from backrest frame (2).

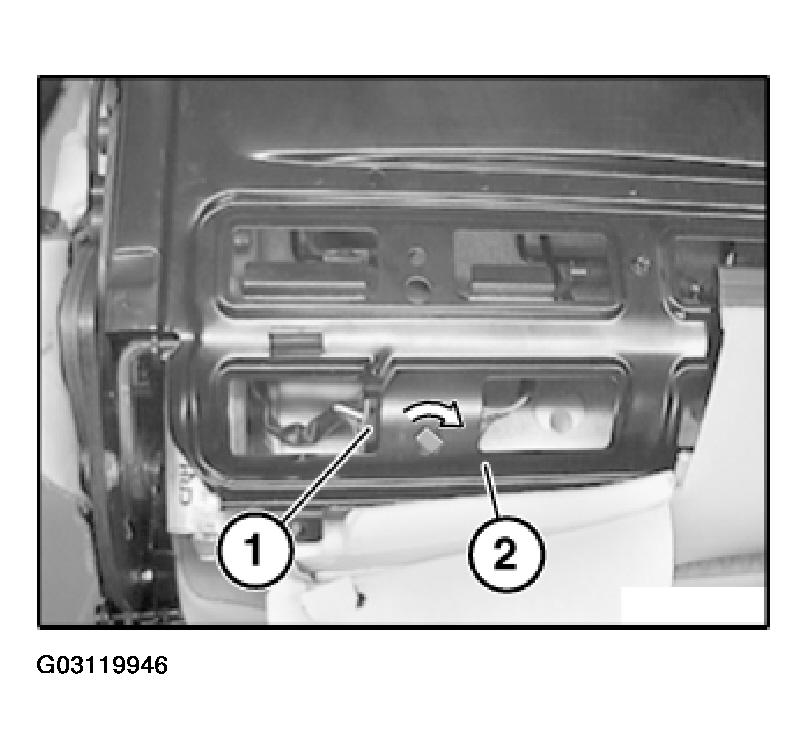

Fig 4: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

NOTE: Secure drive for backrest angle adjustment (2) against falling out.

Release screws (1) and remove drive for backrest angle adjustment (2) in direction of arrow.

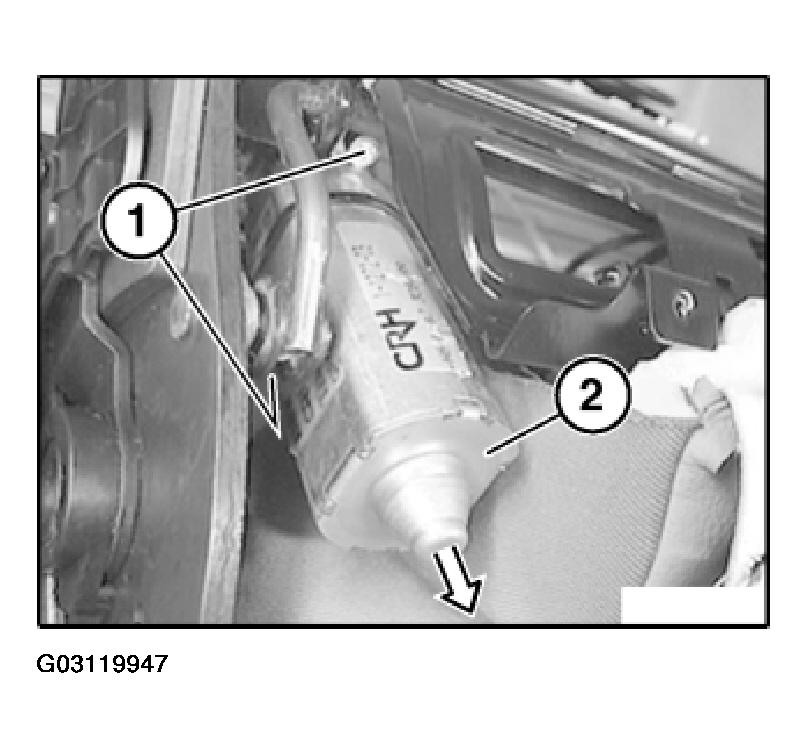

Fig 5: Removing Drive For Backrest Angle Adjustment

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, remove inner drive shaft from drive for backrest angle adjustment (2).

Installation:

Ensure drive for backrest angle adjustment (2) is correctly seated on inner flange.

Installation:

Ensure drive shaft (1) is correctly seated in drive for backrest angle adjustment (2).

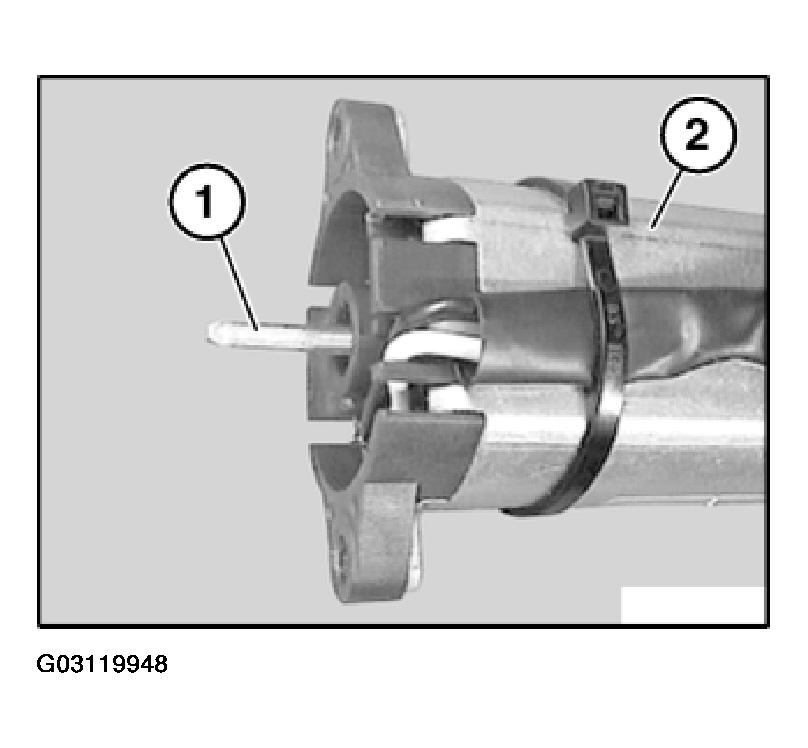

Fig 6: Checking Drive Shaft

Courtesy of BMW OF NORTH AMERICA, INC.
