65 12 020 Removing and installing/replacing rear speaker

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

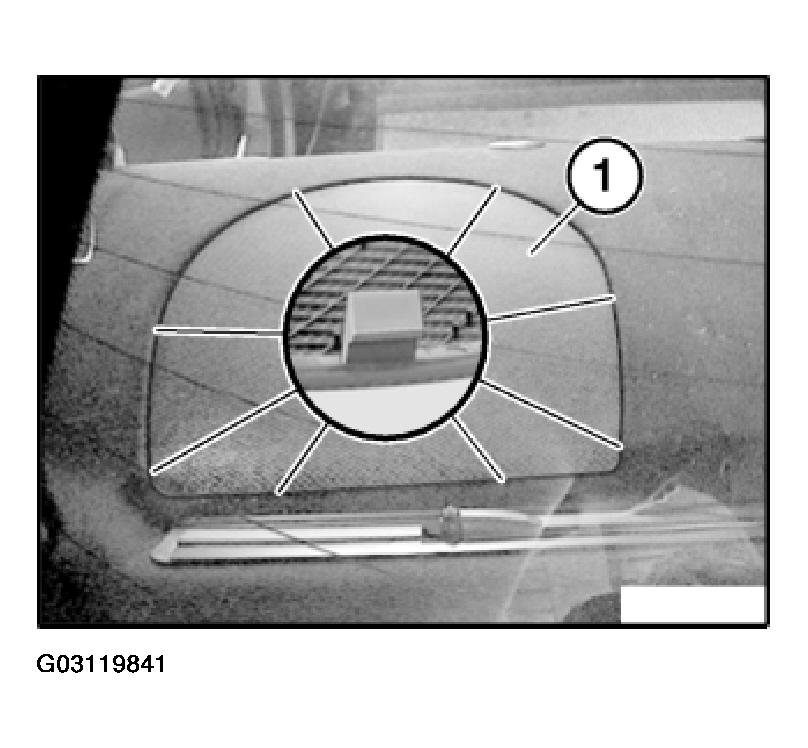

Unclip speaker frame (1).

Fig 1: Unclipping Speaker Frame

Courtesy of BMW OF NORTH AMERICA, INC.

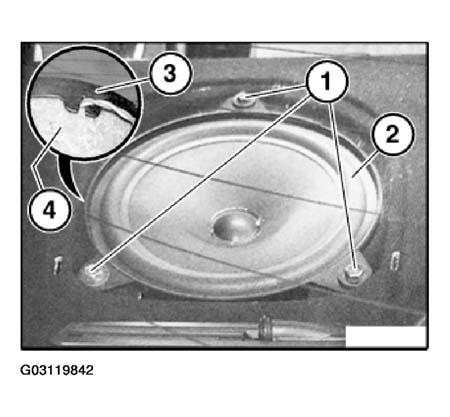

Release screws (1), lift speaker (2). Remove speaker dish (4) and disconnect plug connection.

Fig 2: Removing Speaker Dish

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Ensure speaker dish (4) and cable (3) are correctly seated.
