Only Coupe:

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Loosen screws (1).

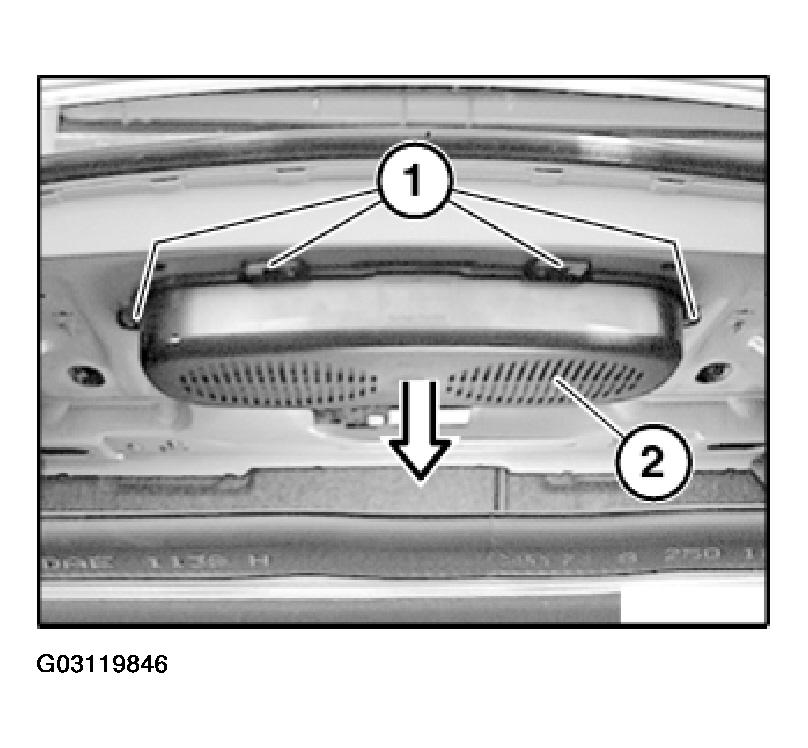

Fig 1: Detaching Complete Subwoofer Speaker
G03119846Courtesy of BMW OF NORTH AMERICA, INC.

Detach complete subwoofer speaker for hi-fi system (2) towards bottom and set down.

Unlock plug connection (1) in direction of arrow and disconnect.

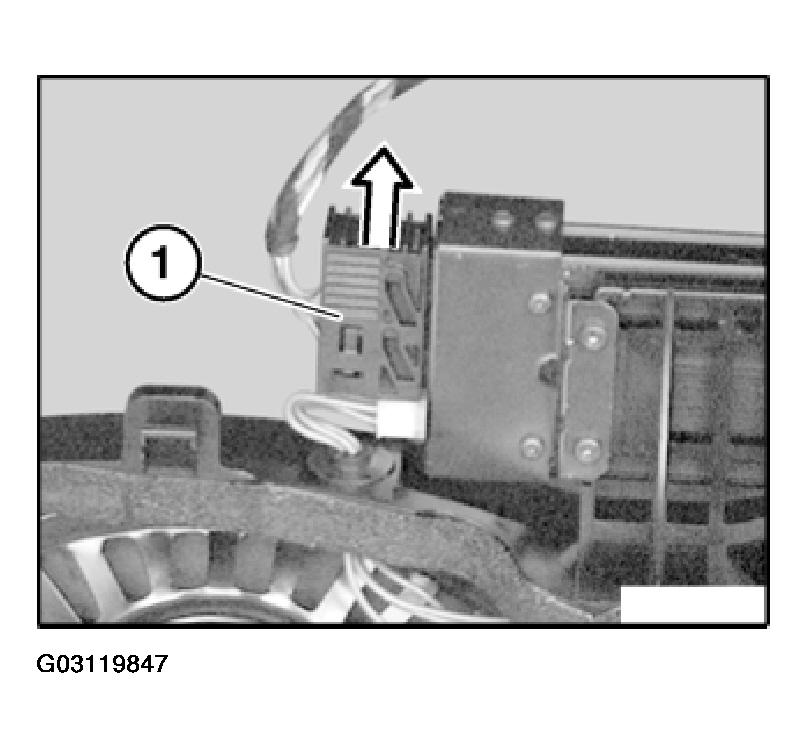

Fig 2: Unlocking Plug Connection
G03119847Courtesy of BMW OF NORTH AMERICA, INC.
