65 24 020 Removing and installing or replacing block circuit
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.
Remove panel for rear right roof pillar (C-pillar), refer to 51 43 251 REMOVING AND INSTALLING / REPLACING TRIM PANEL FOR LEFT OR RIGHT REAR ROOF PILLAR (C-PILLAR) .

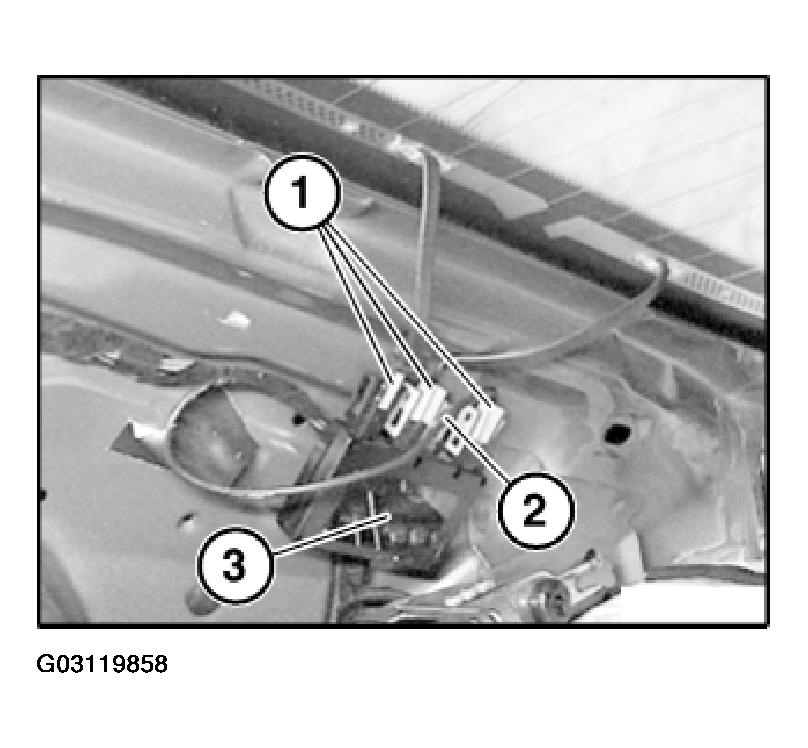

Unfasten plug connection (1). Release screw (2) and remove block circuit (3).
