65 11 070 Removing and installing / replacing CD-changer: Touring:

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Remove flap in luggage compartment trim panel on left.

Loosen screws (1).

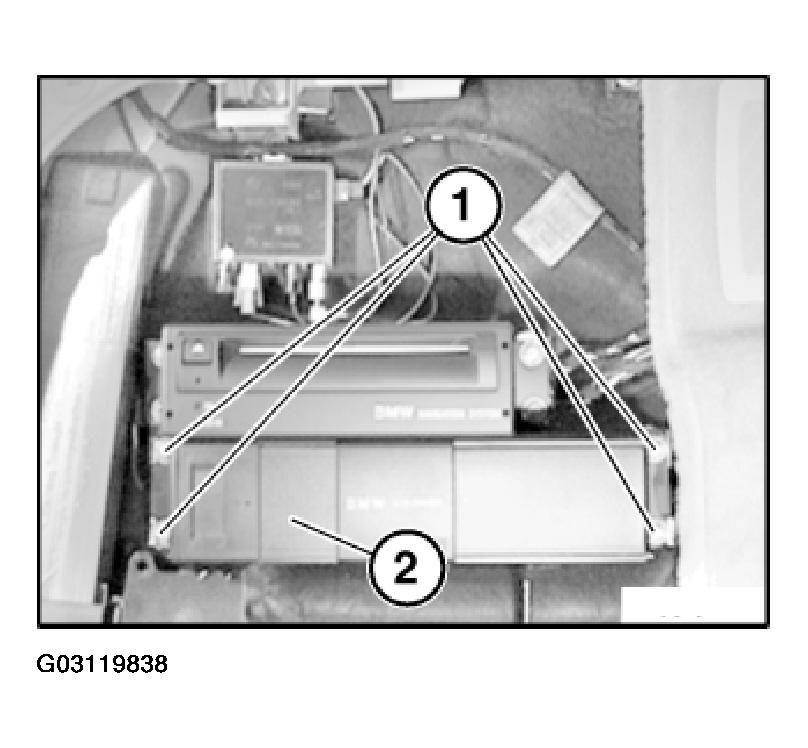

Fig 1: Removing CD Changer

Courtesy of BMW OF NORTH AMERICA, INC.

Withdraw CD changer (2) and disconnect plug connections.

Replacement:

Remove CD changer holder.
