64 11 839 Replacing actuator drive of footwell flap

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Remove and install housing for glovebox and cover on equipment carrier at bottom, refer to 51 45 030 REMOVING AND INSTALLING INSTRUMENT PANEL TRIM .

Remove and install AIRBAG module on passenger side, refer to PASSENGER-SIDE AIR BAG MODULE .

Unhook adjusting lever (1).

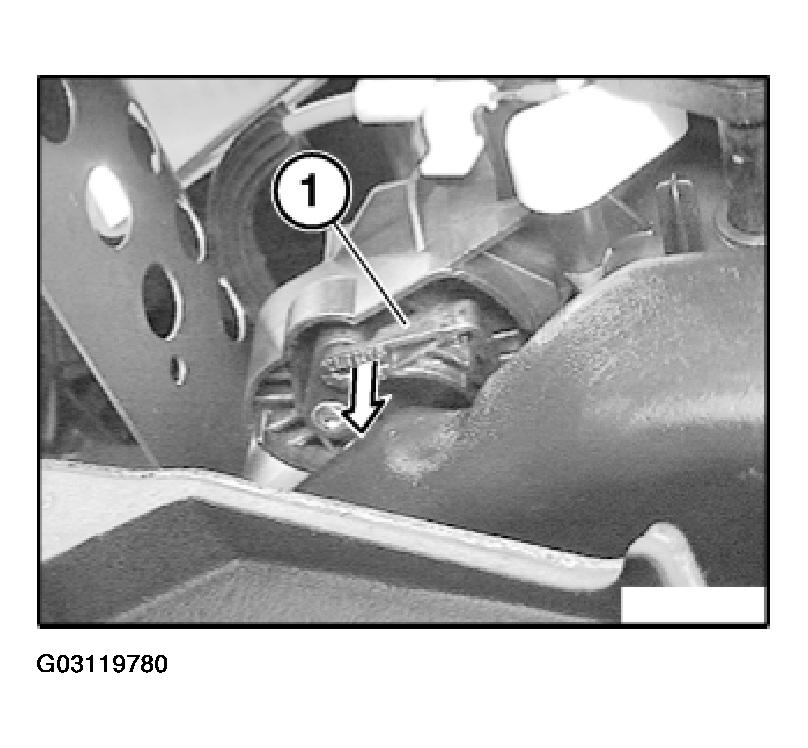

Fig 1: Unhooking Adjusting Lever

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1). Unlock actuator drive (2) and feed out towards rear.

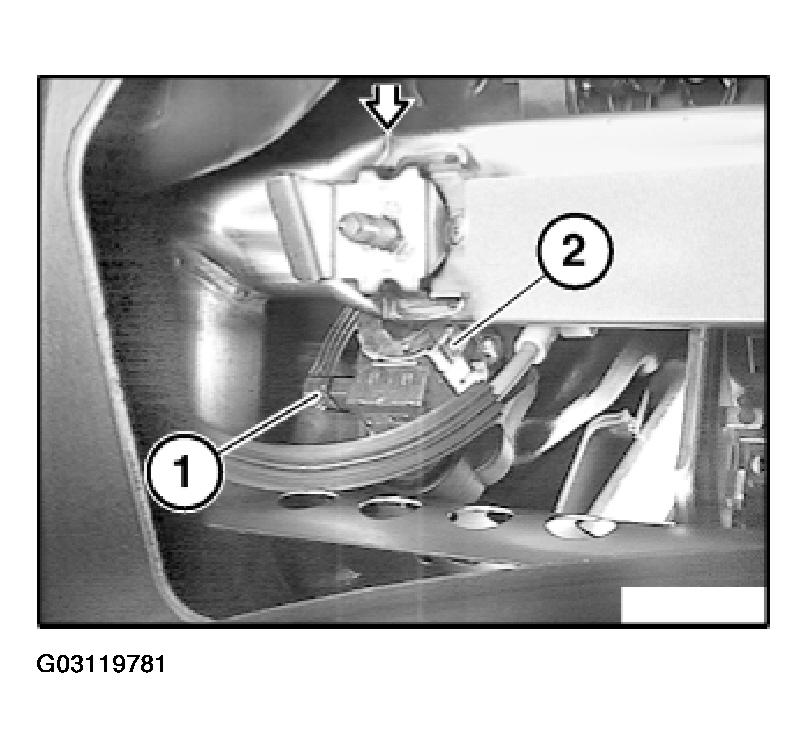

Fig 2: Removing Actuator Drive

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, align shaft for footwell flap and drive (see illustration).

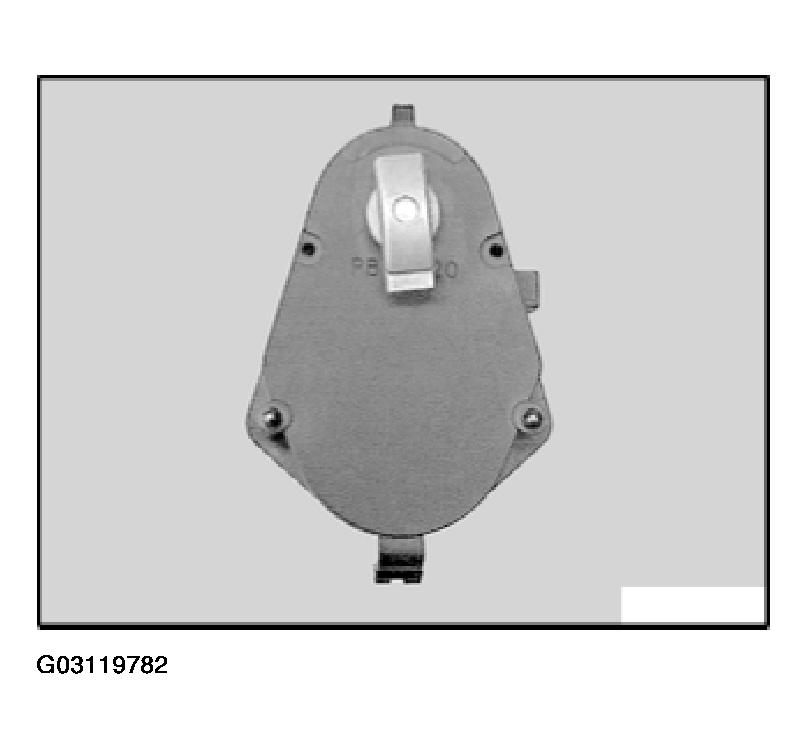

Fig 3: Aligning Shaft For Footwell Flap And Drive

Courtesy of BMW OF NORTH AMERICA, INC.
