63 21 183 Removing and installing/replacing left or right rear light (on rear lid)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Remove socket housing for rear light. Refer to 63 21 055 REPLACING A SOCKET HOUSING FOR LEFT OR RIGHT REAR LIGHT (COUPE, CONVERTIBLE) .

Release nut slightly

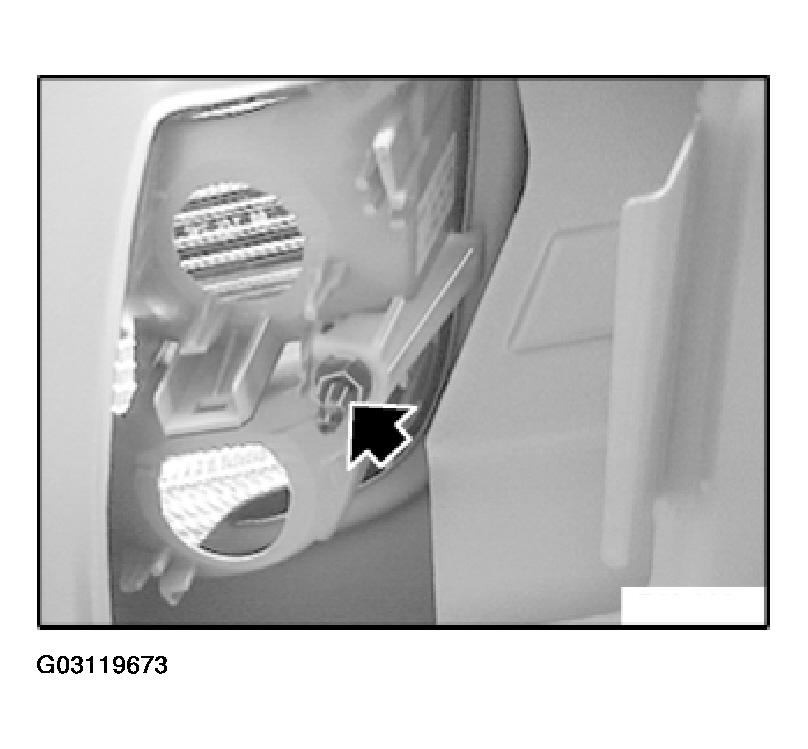

Fig 1: Removing Rear Light

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock in direction of rear light housing and remove rear light towards outside.

Installation:

Make sure rear light seal is correctly seated, replace if necessary.

Make sure there is a uniform gap all round between outer rear light and rear lid.

Installation:

Attach outer detent lugs (1) to rear lid.

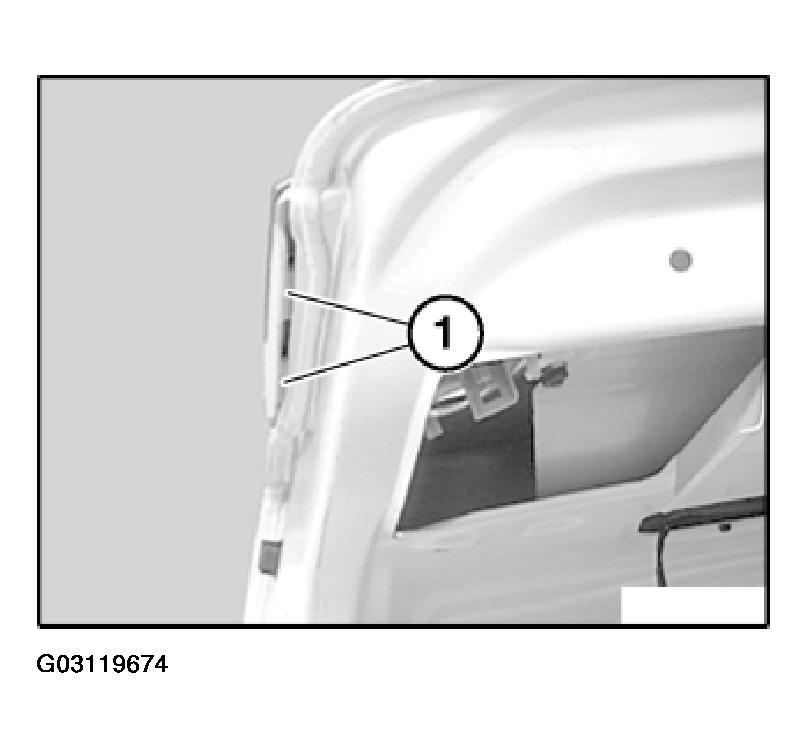

Fig 2: Attaching Outer Detent Lugs To Rear Lid

Courtesy of BMW OF NORTH AMERICA, INC.
