Lights - Repair

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Partially release panel for rear lid. Refer to 51 49 000 REMOVING AND INSTALLING OR REPLACING TRIM FOR TRUNK LID .

Disconnect plug connection, unlock socket housing and remove.

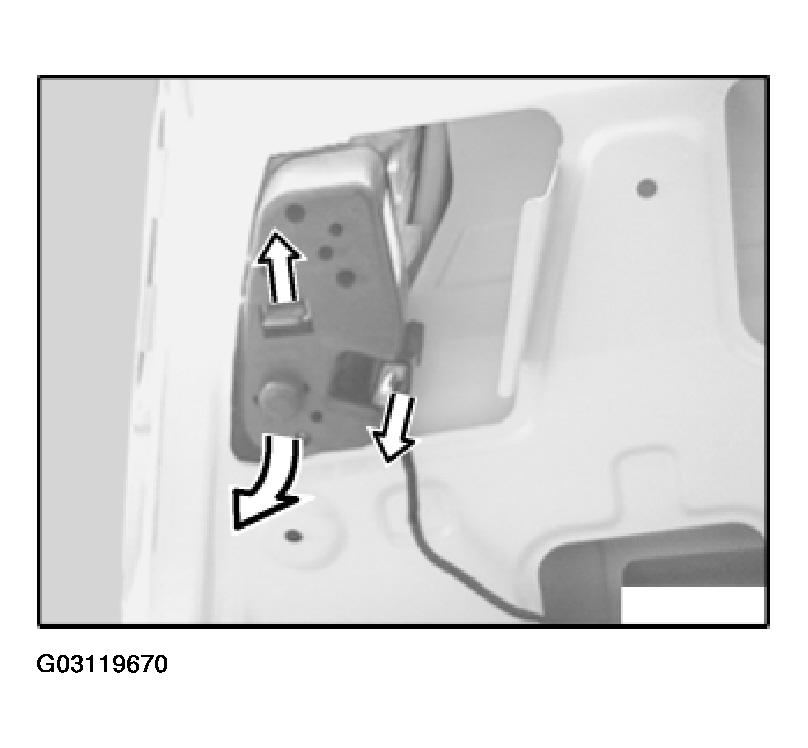

Fig 1: Removing Socket Housing
G03119670Courtesy of BMW OF NORTH AMERICA, INC.
