63 99 315 Replacing bulb(s) for left or right rear light (Coupe, Convertible)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Coupe/Convertible from 03/2003:
The light sources of the rear light in the side section are made up of LEDs.
WARNING:
Follow instructions for handling light bulbs (exterior lights). Refer to 63 99 ... INSTRUCTIONS FOR HANDLING LIGHT BULBS (EXTERIOR LIGHTS)
.
Necessary preliminary tasks:
- Remove socket housing for rear light, refer to 63 21 055 REPLACING A SOCKET HOUSING FOR LEFT OR RIGHT REAR LIGHT (COUPE, CONVERTIBLE)

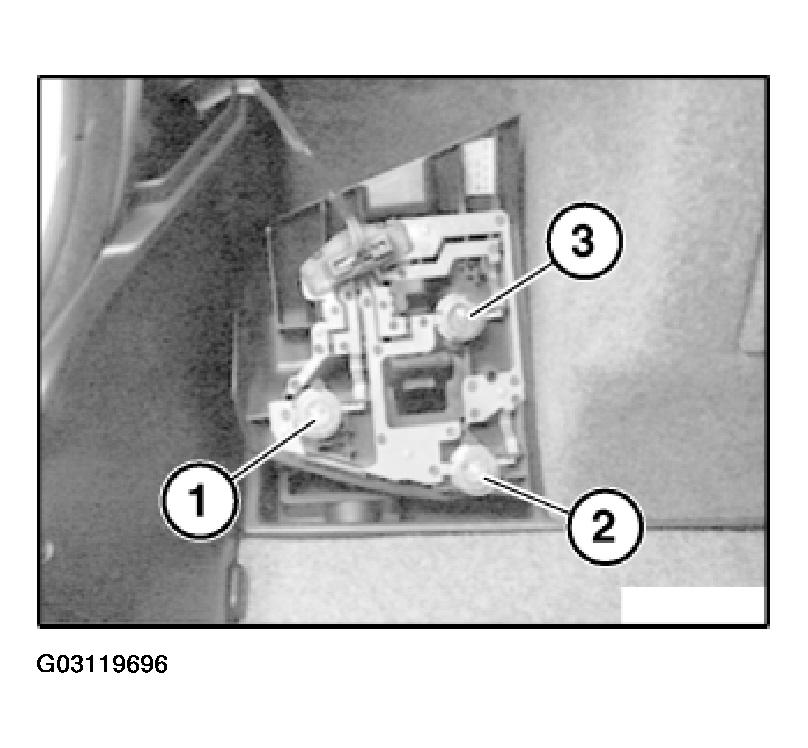

In side section:
Twist defective light bulb and pull out to remove.
NOTE:
- Turn indicator
- Tail/brake light
- Tail light

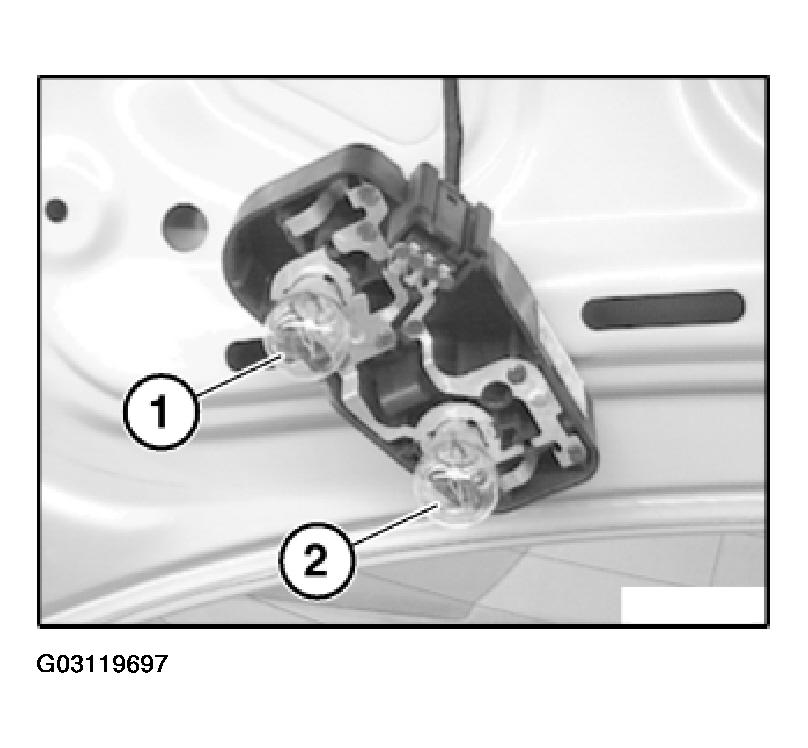

In rear lid:
Twist defective light bulb and pull out to remove.
NOTE:
- Reversing light
- Left side: if necessary rear fog light Right side: Not used
All:
Installation:
Note type of bulb. Refer to LIGHTS - TECHNICAL DATA - 3-SERIES (E46) .
