Build status up to 03/2003:

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

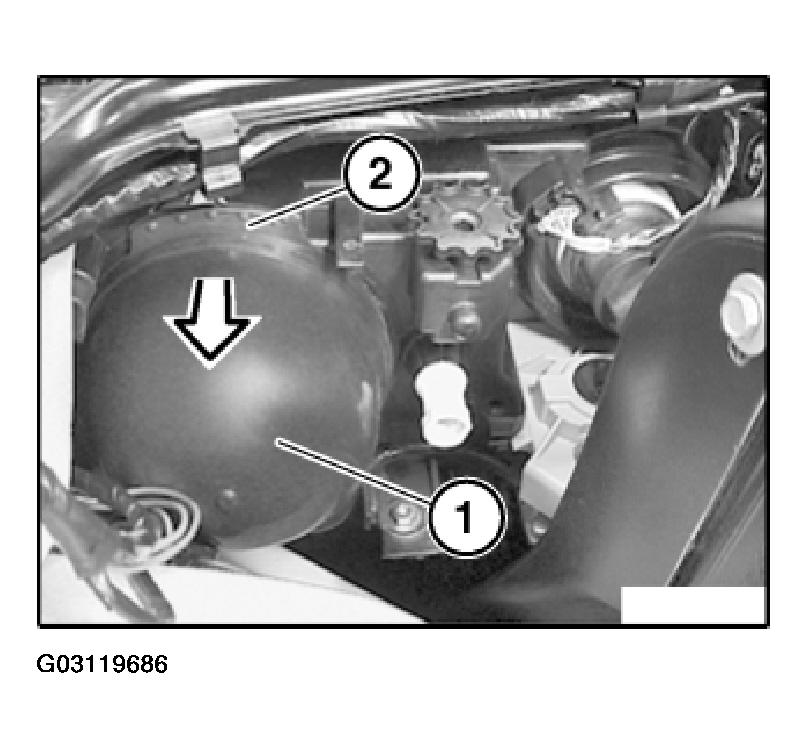

Detach cover for low beam (1) in direction of arrow.

Fig 1: Detaching Cover For Low Beam

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Ensure cover for low beam (1) and lug (2) are correctly seated.

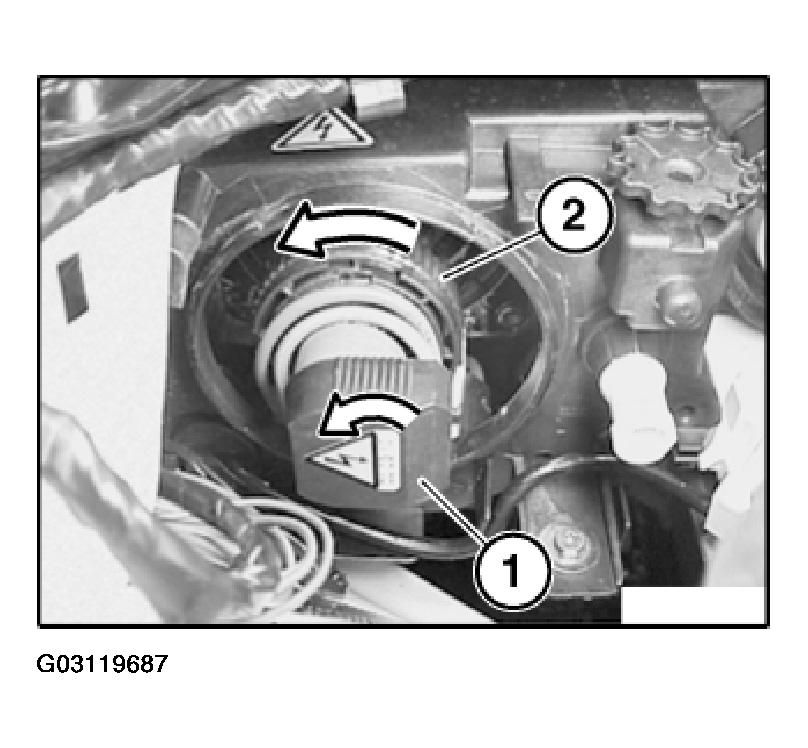

Turn ignition unit for xenon headlight (1) in direction of arrow.

Fig 2: Removing Lamp For Xenon Headlight

Courtesy of BMW OF NORTH AMERICA, INC.

Turn retaining ring (2) in direction of arrow and remove.

Remove lamp for xenon headlight.
