54 12 117 Replacing seal for glass sliding/tilting sunroof lid

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Remove glass slide/tilt sunroof lid, refer to 54 12 115 REMOVING AND INSTALLING GLASS SLIDING/TILTING SUNROOF LID .

Remove seal (1) from glass slide/tilt sunroof lid (2).

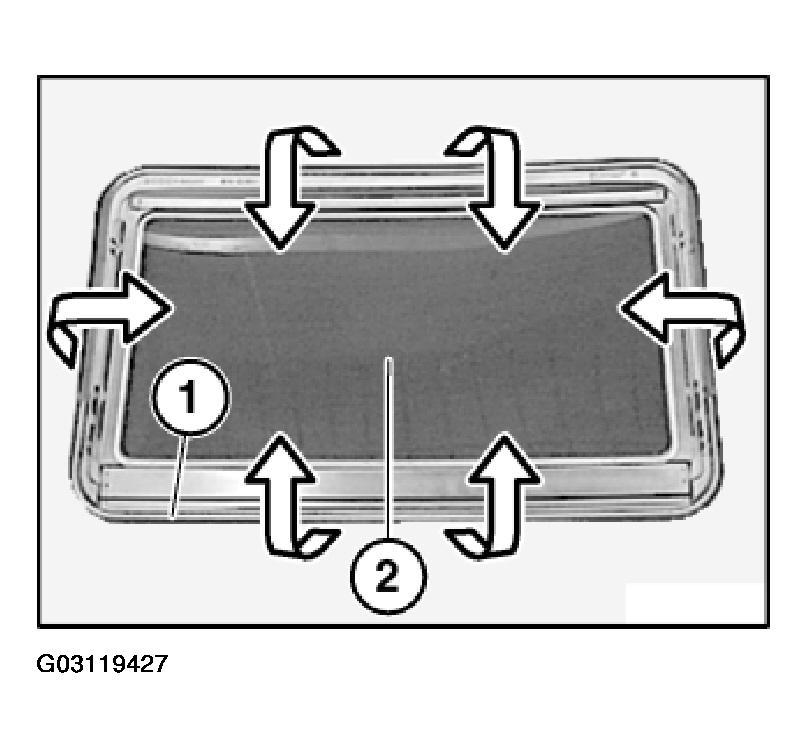

Fig 1: Removing Seal From Glass Slide/Tilt Sunroof Lid

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Coat guide channel (1) and seal (2) with soapy water.

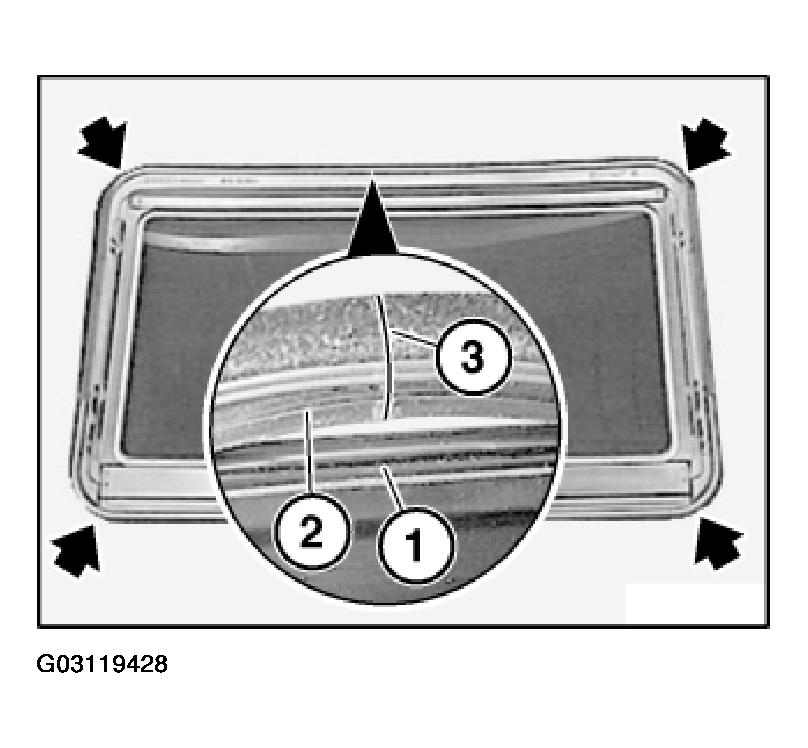

Fig 2: Installing Seal
Courtesy of BMW OF NORTH AMERICA, INC.
Begin installation at rear center, with seal (3).
Do not pull seal too tightly in radii (leakage).
