52 15 011 ... Removing and installing/replacing Bowden cable for rear compartment entrance aid

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove seat, refer to 52 14 000 ... REMOVING AND INSTALLING LEFT OR RIGHT FRONT SEAT (NORMAL/ELECTRIC)
Remove rear panel, refer to 52 15 198 ... REMOVING AND INSTALLING/REPLACING REAR PANEL ON FRONT LEFT OR RIGHT SEAT BACKREST (SPORTS/MANUAL)
Remove outer cover, refer to 52 14 040 REMOVING AND INSTALLING/REPLACING OUTER COVER ON FRONT LEFT OR RIGHT SEAT (NORMAL/ELECTRIC)
Remove inner cover, refer to 52 13 041 REMOVING AND INSTALLING / REPLACING INNER COVER ON LEFT OR RIGHT FRONT SEAT BACKREST (NORMAL/ MANUAL)

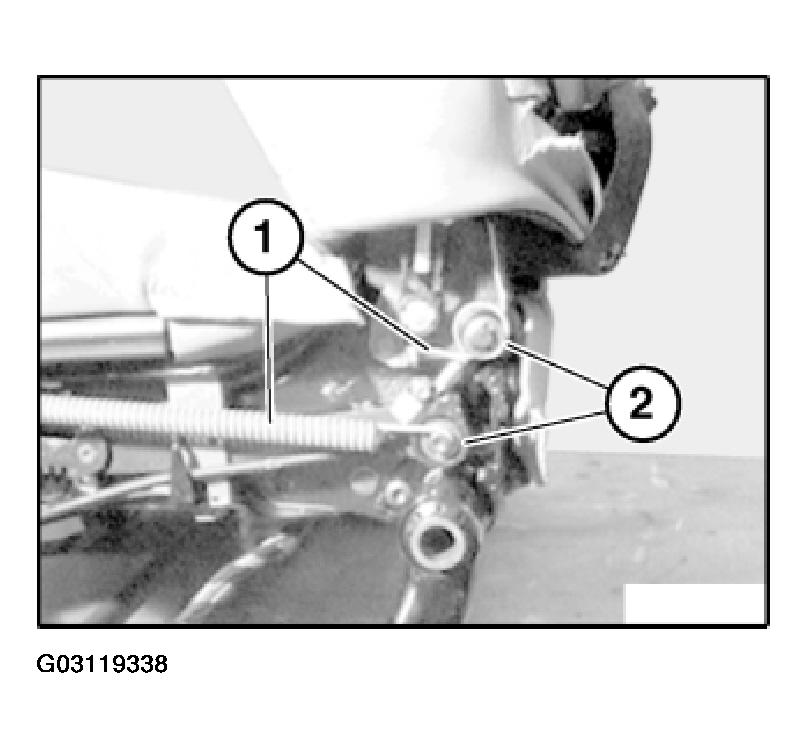

Lay seat on seat surface/backrest or left seat side. Unhook and remove springs (1).

Fig 1: Removing Retainers

Courtesy of BMW OF NORTH AMERICA, INC.

Remove retainers (2).

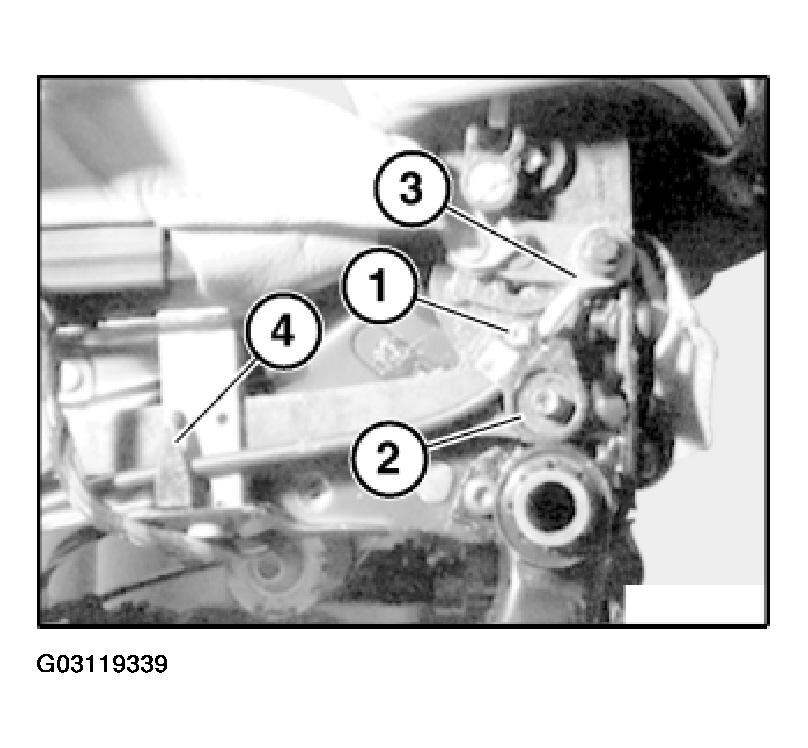

Release screw (1) of cable mount (2).

Fig 2: Releasing Screw Of Cable Mount

Courtesy of BMW OF NORTH AMERICA, INC.

Detach cable mount (2) and cable eye (3) from shaft.

Feed cable out of holder (4).

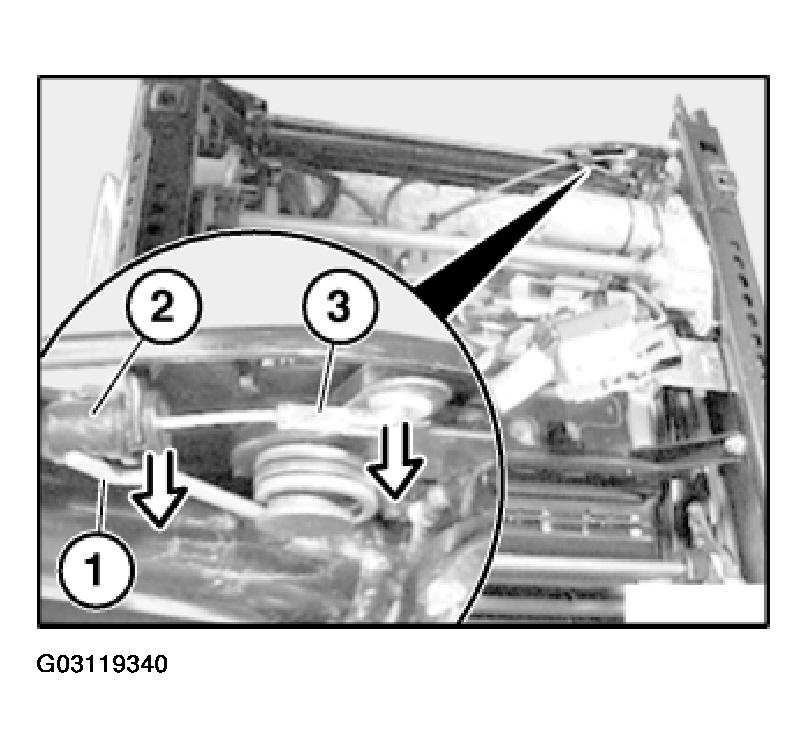

Disconnect spring (1).

Fig 3: Disconnecting Spring

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip sleeve (2) of Bowden cable from guide.

Feed out cable (3).
