52 14 070 Removing and installing/replacing seat angle adjuster on left or right front seat (normal/electric)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove front seat, refer to 52 14 000 ... REMOVING AND INSTALLING LEFT OR RIGHT FRONT SEAT (NORMAL/ELECTRIC)
Remove outer cover, refer to 52 16 040 REMOVING AND INSTALLING/REPLACING OUTER COVER ON FRONT LEFT OR RIGHT SEAT (SPORTS/ELECTRIC)

Release screws (1).

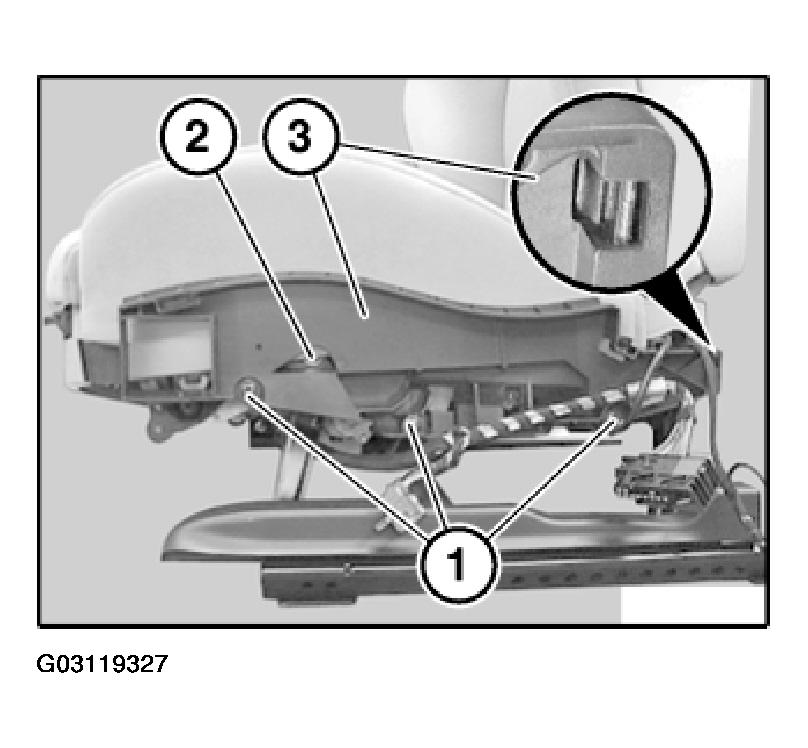

Fig 1: Removing Carrier

G03119327

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (2).

Unclip carrier (3) from seat mechanism at rear.

Unlock plug connection (1) on drive unit (2) and disconnect.

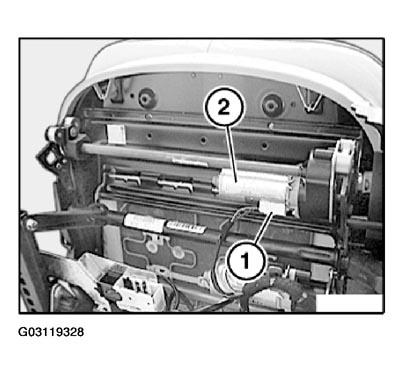

Fig 2: Disconnecting Plug Connection On Drive Unit

G03119328

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

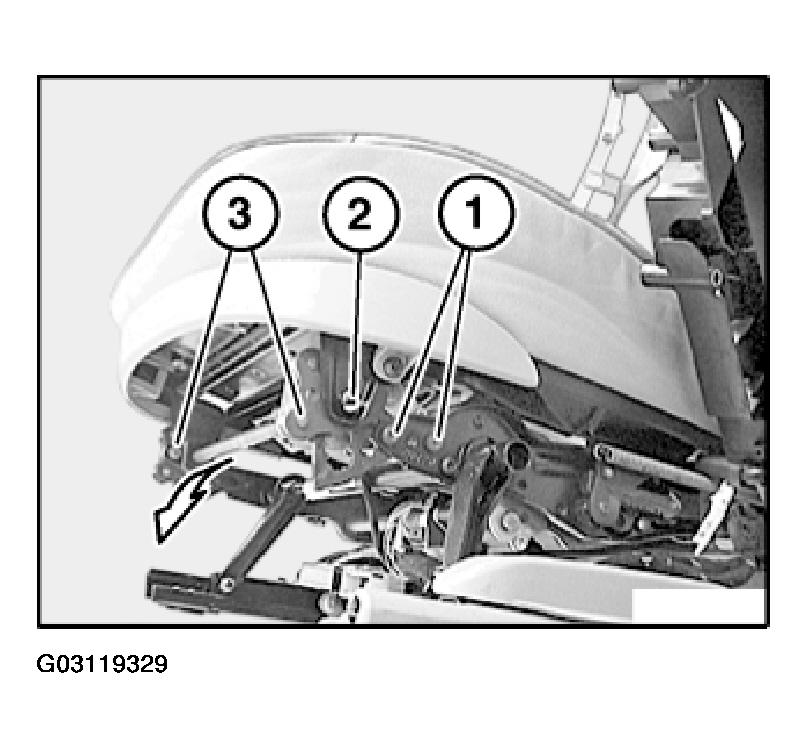

Fig 3: Removing Seat angle Adjuster

G03119329

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace Taptite screws (1).

Tightening torque 52 10 16AZ. Refer to SEATS - TIGHTENING TORQUES - 3-SERIES (E46) .

Release screw (2).

Tightening torque 52 10 17AZ. Refer to SEATS - TIGHTENING TORQUES - 3-SERIES (E46) .

Remove seat angle adjuster (3).

Installation:

Slide left and right O-rings onto shaft. Make sure O-rings are correctly located between seat angle adjuster and seat pan.
