52 14 034 Removing and installing/replacing release mechanism on front left or right seat
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.
Remove release lever on front seat. Refer to 52 14 033 REMOVING AND INSTALLING/REPLACING RELEASE HANDLE ON LEFT OR RIGHT FRONT SEAT (NORMAL/ELECTRIC) .
Remove rear panel on front seat. Refer to 52 13 198 REMOVING AND INSTALLING / REPLACING REAR PANEL ON LEFT OR RIGHT FRONT SEAT BACKREST (NORMAL/MANUAL) .

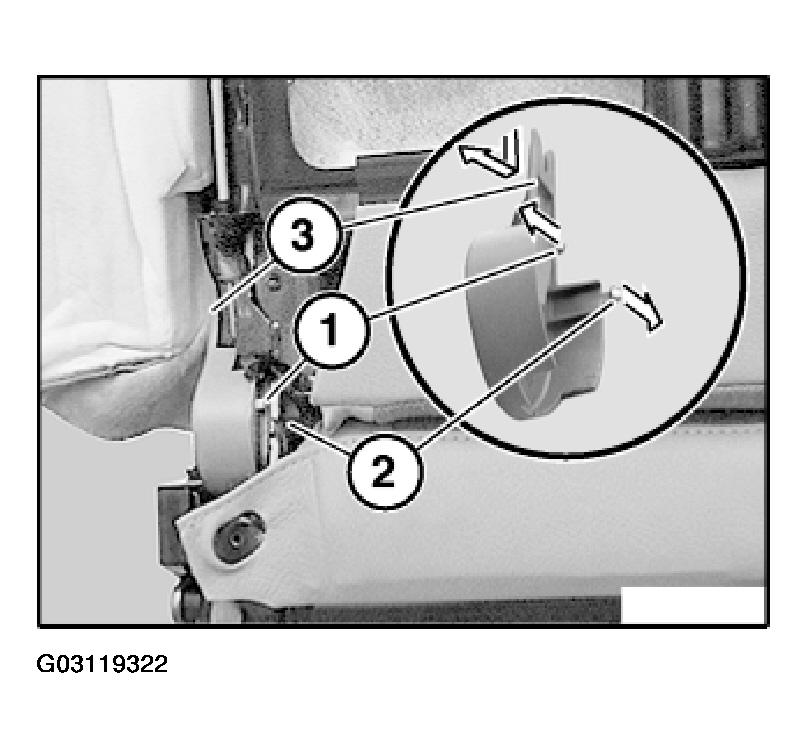

Remove cover on left and right:
- Unclip catch (1) towards rear
- Unclip catch (2) towards front
- Lift out cover of guide (3) towards bottom and side
Installation:
Catches (1, 2) and guide (3) of cover must not be damaged.

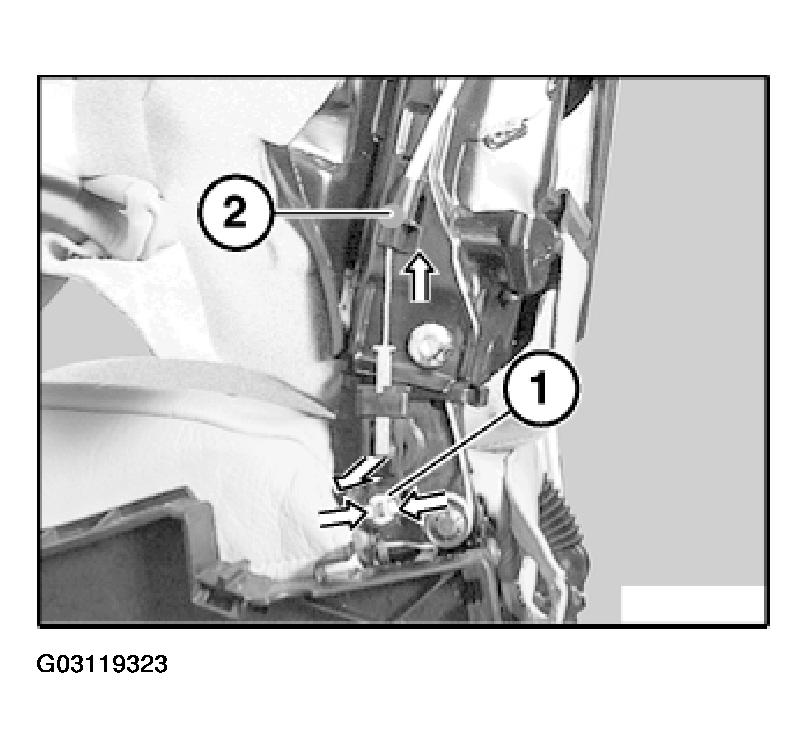

Unclip cable on left and right:
- Press together catches (1) and detach lug towards outside
- Unclip catch (2) of cable mount towards top and remove towards outside
Installation:
Catches (1) must not be damaged.
After installation, they must always point outwards (away from seat).

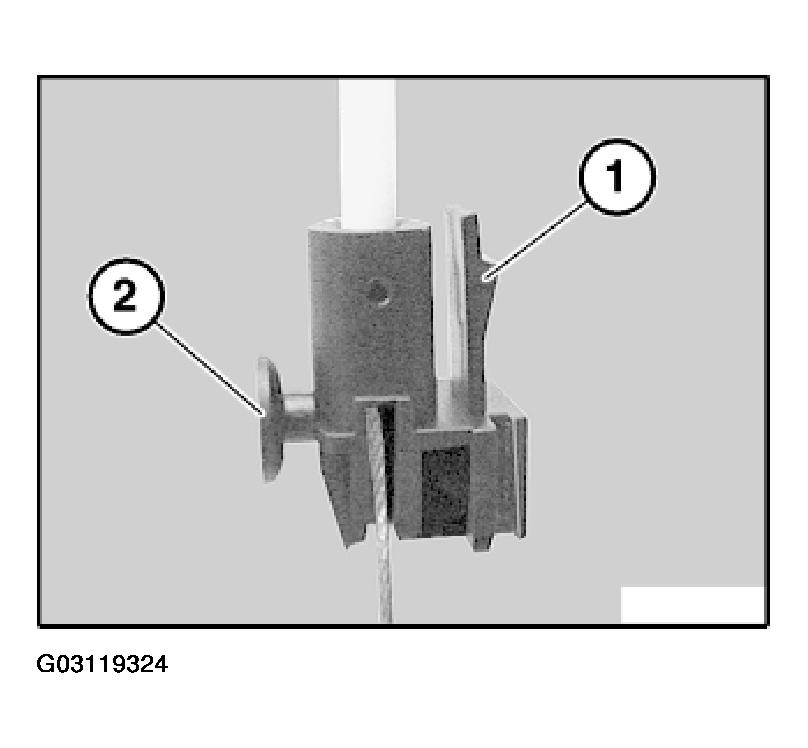

Installation:
Catch (1) and guide bearing (2) must not be damaged.

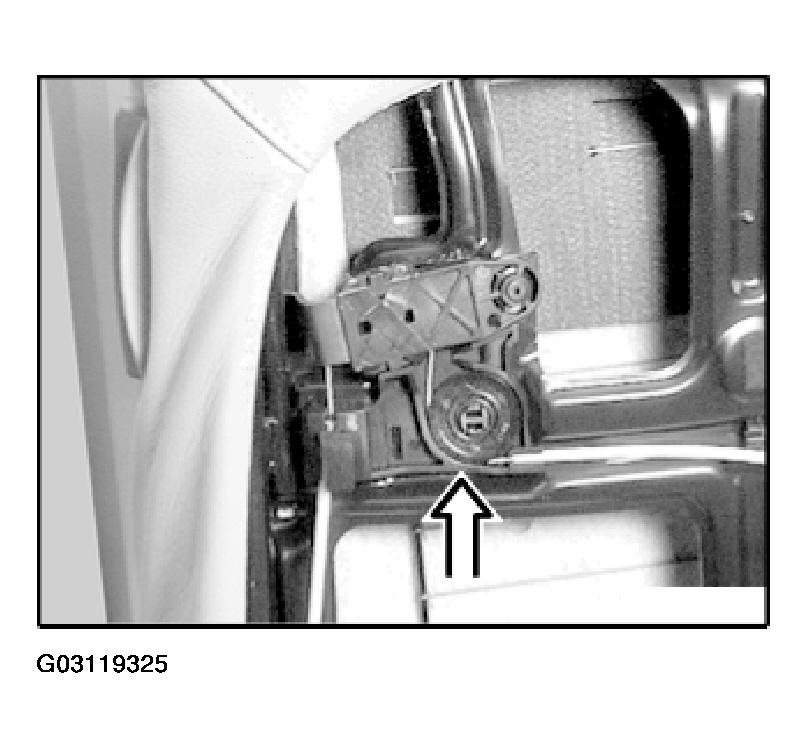

Unclip release mechanism towards top.
NOTE:
On both sides on passenger seat.
Installation:
Cable covering must point out a little over covering mount.
Installation:

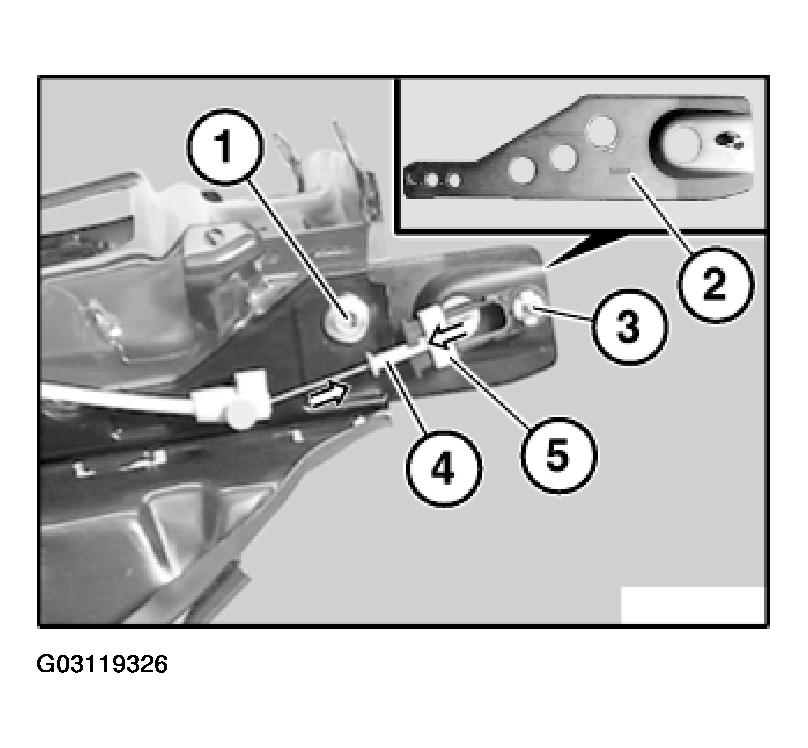

- Release screw (1) and remove seat back towards top.
- Insert adjusting tool (2) in seat back and secure with screw
- Clip cable on both sides onto mounting lug (3).
- Slide catch lug (4) into cable end clip until there is no cable play.
- Lock catch by pushing up retaining ring (5).
- Unclip cable, remove adjusting element (2), install seat backrest.
NOTE:
Catch can no longer be released when retaining ring has snapped into place.
