52 13 050 Replacing Lumbar Cushion On Front Left Or Right Seat

Carry out following tasks beforehand:

Removing rear panel on front seat backrest:

• Basic seat, refer to 52 13 198 REMOVING AND INSTALLING / REPLACING REAR PANEL ON LEFT OR RIGHT FRONT SEAT BACKREST (NORMAL/MANUAL)
• Sports seat, refer to 52 15 198 ... REMOVING AND INSTALLING/REPLACING REAR PANEL ON FRONT LEFT OR RIGHT SEAT BACKREST (SPORTS/MANUAL)

Detach backrest cover (1) from backrest frame (2).

Fig 1: Detaching Backrest Cover From Backrest Frame

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect hoses (2) and (3) from valve housing (1).

Fig 2: Disconnecting Hoses From Valve Housing

Courtesy of BMW OF NORTH AMERICA, INC.

2 Hose (blue) top cushion

3 Hose (red) bottom cushion

Installation:

Air hoses (2) and (3) must be laid without kinks.

Unhook lumbar cushion (1) from spring wire (2).

Fig 3: Unhooking Lumbar Cushion From Spring Wire

Courtesy of BMW OF NORTH AMERICA, INC.

Version with seat heating:

Slide cable (3) for backrest heating to one side a little.

Press back support (1) a little.

Fig 4: Removing Lumbar Cushion

Courtesy of BMW OF NORTH AMERICA, INC.

Turn lumbar cushion (2) and pull out downwards.

Installation:

Check lumbar cushion (1) at top and (2) bottom for damage.

Fig 5: Checking Lumbar Cushion

Courtesy of BMW OF NORTH AMERICA, INC.

Air hoses (3) must not be kinked.

Installation:

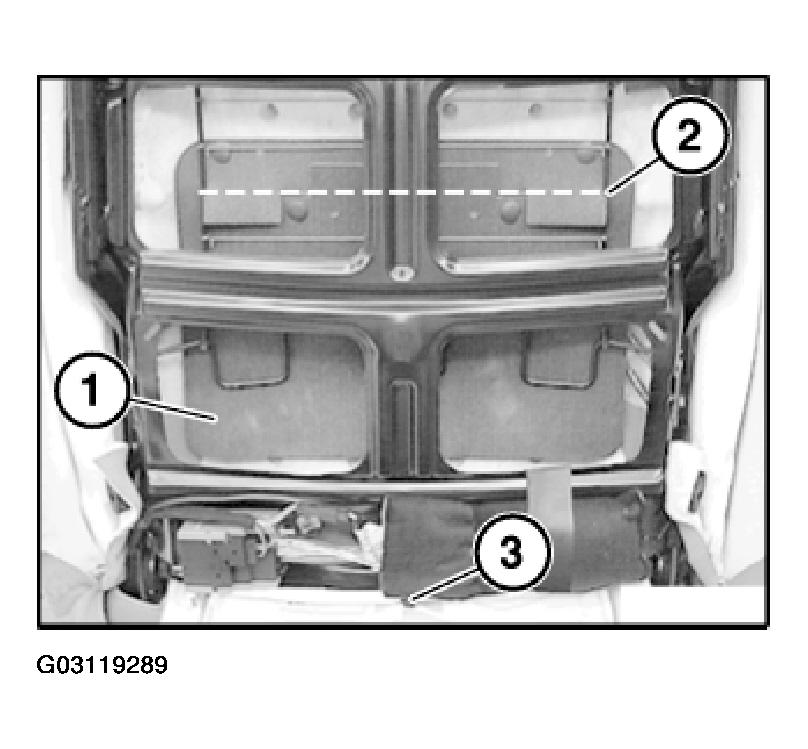

Attach lumbar cushion (1) to third wire (2) above spring (3).

Fig 6: Attaching Lumbar Cushion To Third Wire

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Observe cable guide (1) for backrest heating.

Fig 7: Identifying Cable Guide For Backrest Heating

Courtesy of BMW OF NORTH AMERICA, INC.

Lay air hoses (2) without kinks through hole (3).

Installation:

Check function.
