52 13 040 Removing and installing / replacing outer cover on left or right front seat back-rest (normal / manual)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Unscrew bolt (1).

Fig 1: Removing Bolt

G03119280

Courtesy of BMW OF NORTH AMERICA, INC.

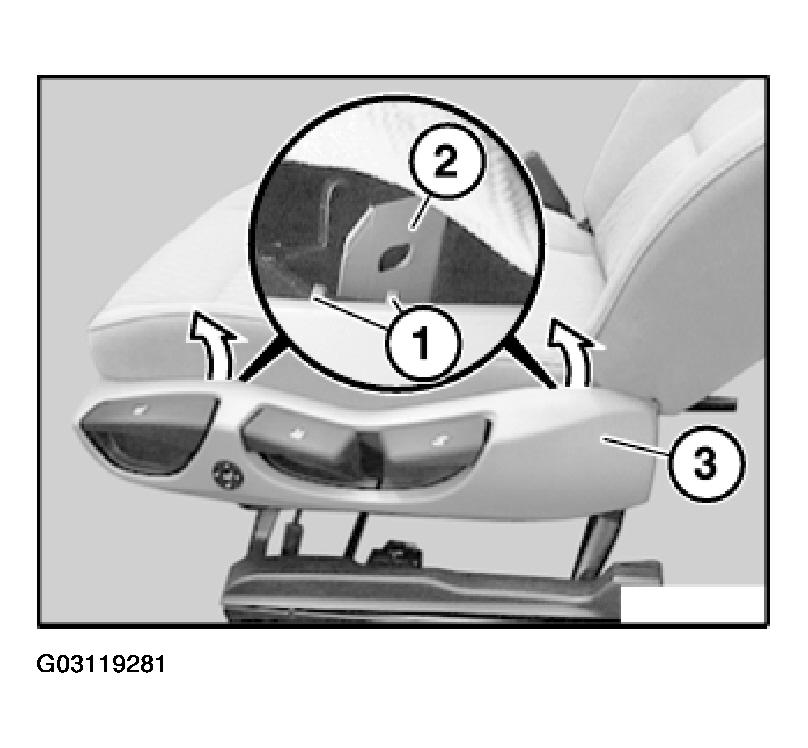

Snap out catches (1) at front/rear and tongue (2) at rear from cover (3) towards top and pull outwards a little.

Fig 2: Snapping Out Catches

G03119281

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Slide tongue (2) into mounts and snap into place.

Lever lugs (1) on cover (3) out of brackets (2).

Fig 3: Levering Lugs On Cover Out Of Brackets

G03119282

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out cover (1) at rear, detach at front from guide and remove.

Fig 4: Removing Cover

G03119283

Courtesy of BMW OF NORTH AMERICA, INC.

Model with lumbar supports:

If necessary, press down catches (1) on left/right and remove switch (2) from cover (3).

Fig 5: Removing Switch From Cover

G03119284

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Following parts must not be damaged, replace cover (4) if necessary:

Catches, top
Guide, front
Lugs, bottom

Fig 6: Identifying Parts
Courtesy of BMW OF NORTH AMERICA, INC.
