51 43 070 Removing And Installing/Replacing Side Trim Panel, Footwell, On A-Pillar, Left

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Remove panel for pedals, refer to REMOVING AND INSTALLING/REPLACING TRIM FOR PEDAL ASSEMBLY .
Remove front entrance cover strip (inside), refer to REMOVING AND INSTALLING/REPLACING FRONT (INSIDE) LEFT OR RIGHT ENTRANCE COVER STRIP .

Release screw (1) and remove release lever (2).

Fig 1: Identifying Release Lever Retaining Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Remove mucket (1) in area of footwell trim.

Release screw (2).

Push footwell trim (3) a little to rear (guides (3) are unlocked) and detach footwell trim towards inside.

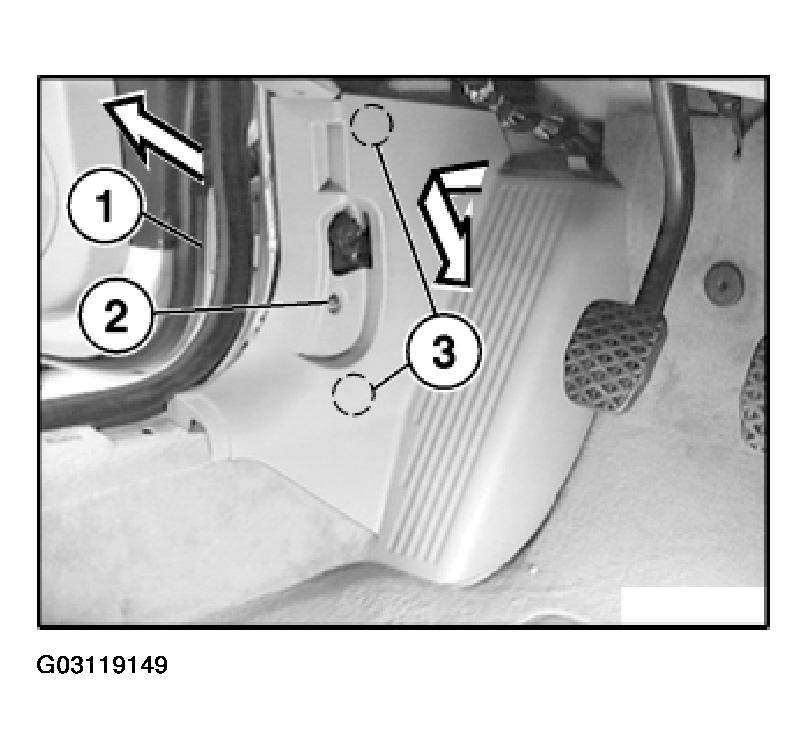

Fig 2: Removing Mucket In Area Of Footwell Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Guides (1) must not be damaged.

Replacement only:

Lift out insert (2) in footwell trim (3).

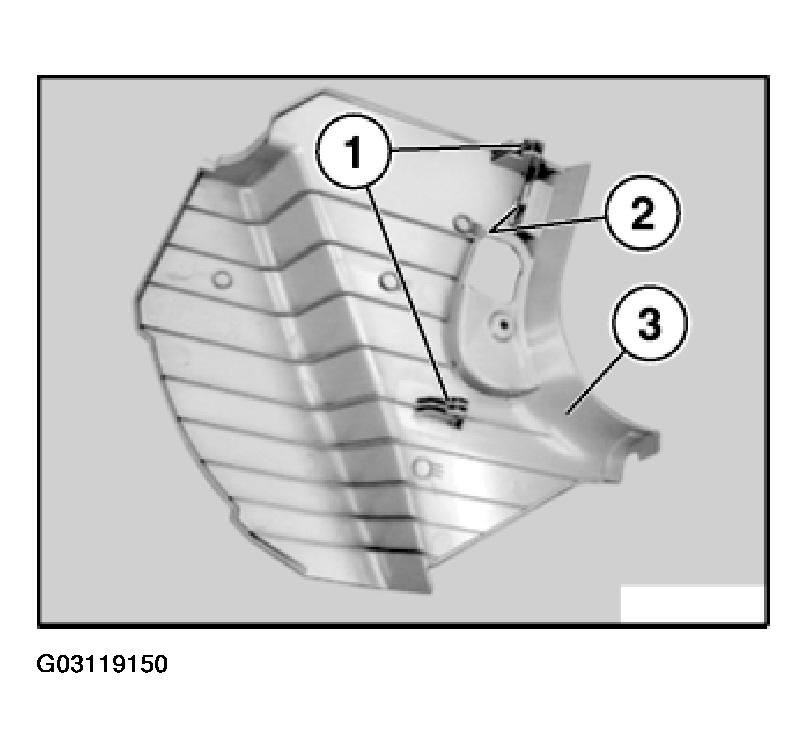

Fig 3: Locating Guides On Footwell Trim

Courtesy of BMW OF NORTH AMERICA, INC.
