51 12 801 Replacing Bracket For Rear Bumper At Left Or Right

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

(Bumper Removed)

If necessary, remove complete rear bumper, refer to REMOVING AND INSTALLING COMPLETE REAR BUMPER (M3) .

Installation:

If necessary, mark position of bracket on body.

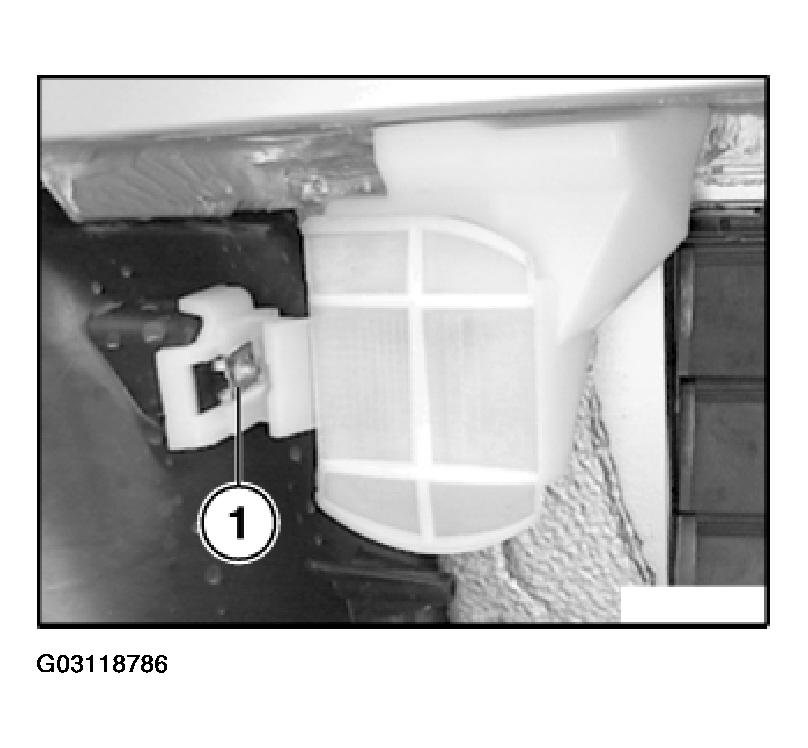

Release screw (1) on wheel arch.

Fig 1: Releasing Screw On Wheel Arch

Courtesy of BMW OF NORTH AMERICA, INC.

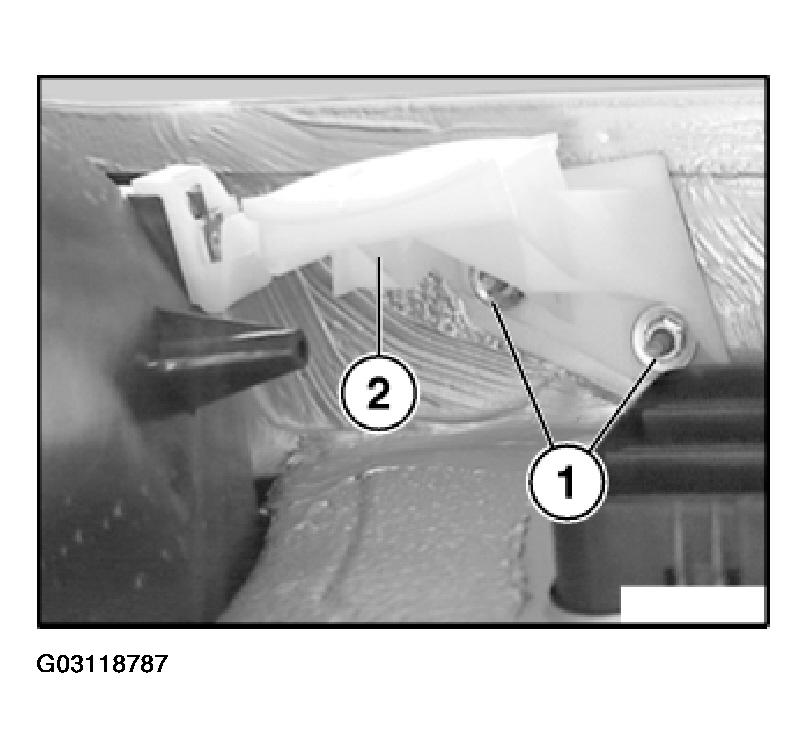

Release nuts (1) and remove bracket (2).

Fig 2: Removing Bracket

Courtesy of BMW OF NORTH AMERICA, INC.
