51 12 080 Removing And Installing/Replacing Trim On Bumper Trim At Rear (M3)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Release expansion rivets (1).

Lever out retaining lugs (3) on one side from below, then unclip rest of trim (2).

Fig 1: View Of Expansion Rivets

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Retaining lugs (1) on trim (2) must not be damaged.

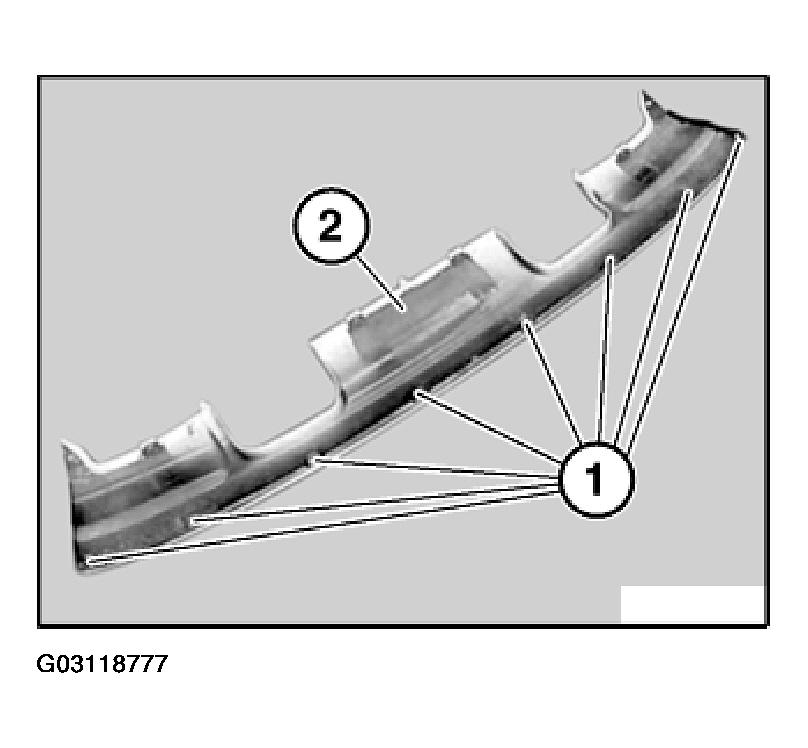

Fig 2: Identifying Retaining Lugs On Trim

Courtesy of BMW OF NORTH AMERICA, INC.
