51 12 001 Replacing Rear Bumper (M3)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Replacing Rear Bumper Center Section (Carrier) (51 12 011):

Remove complete rear bumper. Refer to 51 12 000 REMOVING AND INSTALLING COMPLETE REAR BUMPER .

Convertible with TV only:

Remove TV bumper antenna.

Release expansion rivets (1) and screws (2).

Remove center section of bumper (3) (carrier) from bumper trim (4).

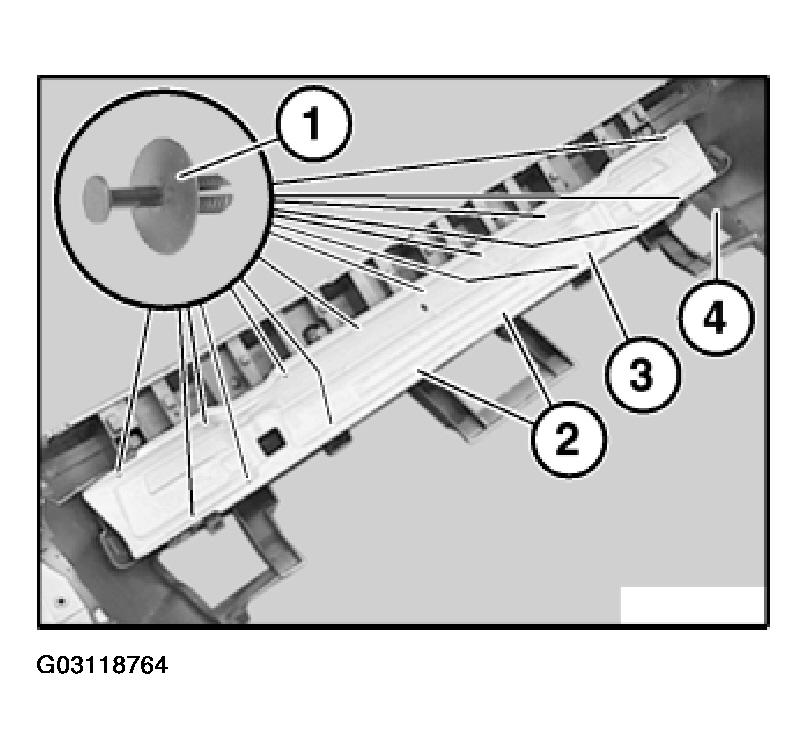

Fig 1: View Of Expansion Rivets

G03118764

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure nut (1) is properly fitted in carrier (2).

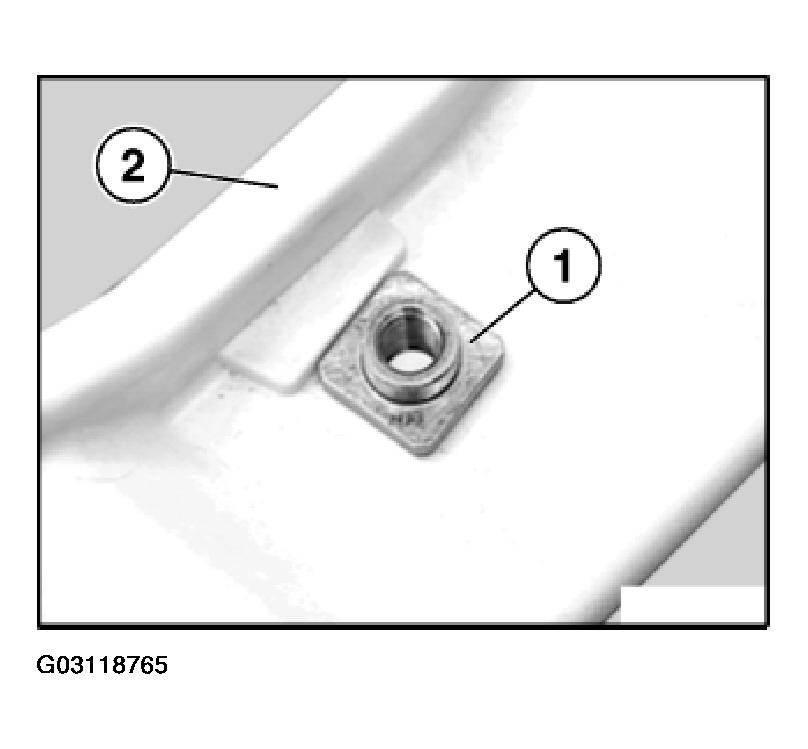

Fig 2: Installing Nut

G03118765

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The work for "Replacing center section of bumper (carrier) at rear" (51 12 011) ends here.

Replacing Rear Bumper Trim (51 12 157) And Replacing Rear Bumper (51 12 001):

Unclip cover (1) for towing eye at opening.

Lever out retaining strap and remove cover (1).

Remove metal nuts (2) from bumper trim (3).

Version with Park Distance Control (PDC):

Lever out catches (4) and remove ultrasonic sensors (5).

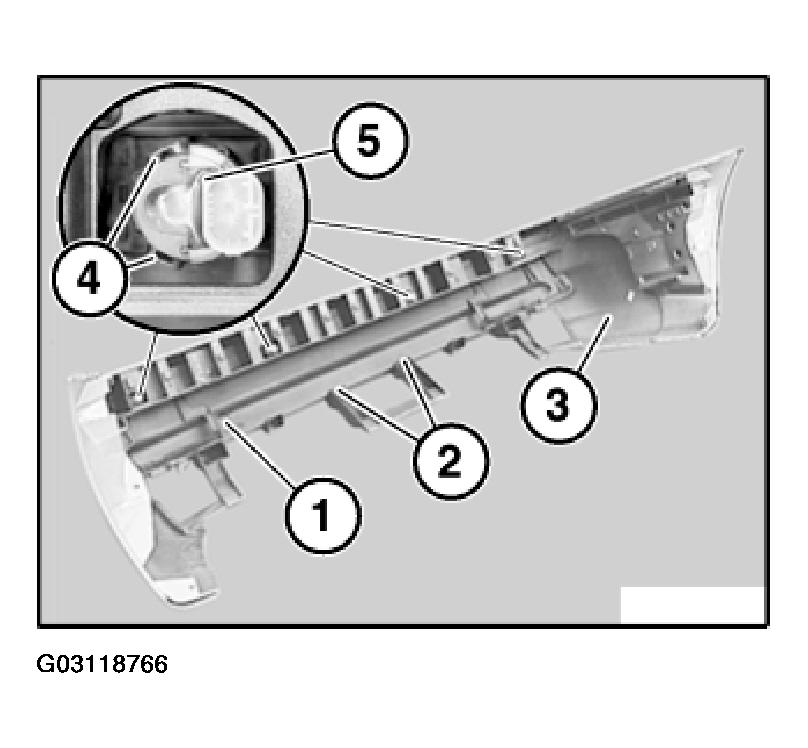

Fig 3: Identifying Metal Nuts From Bumper Trim

G03118766

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Retaining lugs (1) on ultrasonic sensor (2) must not be damaged.

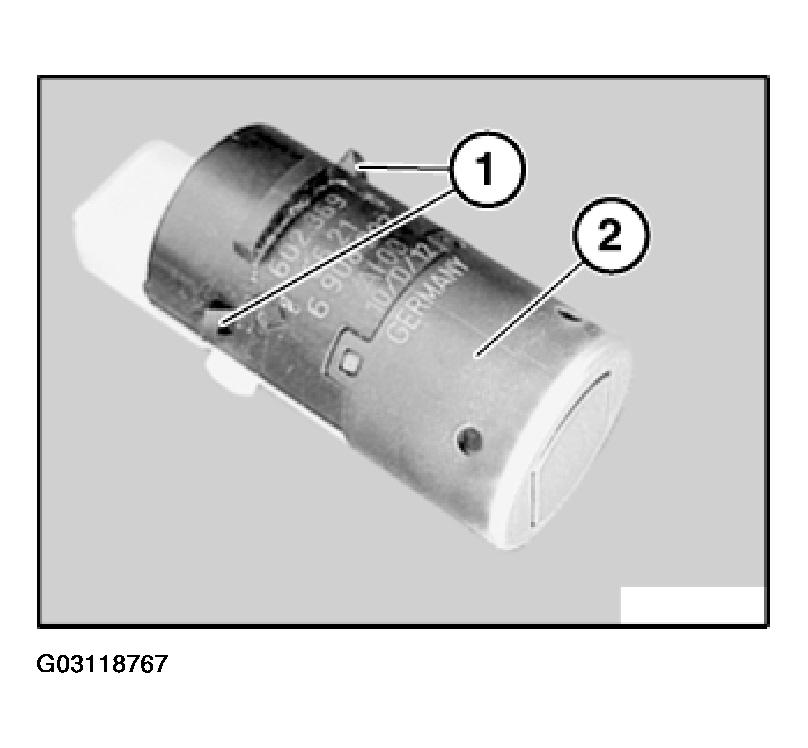

Fig 4: Locating Retaining Lugs On Ultrasonic Sensor

G03118767

Courtesy of BMW OF NORTH AMERICA, INC.
