51 16 360 Removing And Installing Right Glove Box

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Open glovebox.

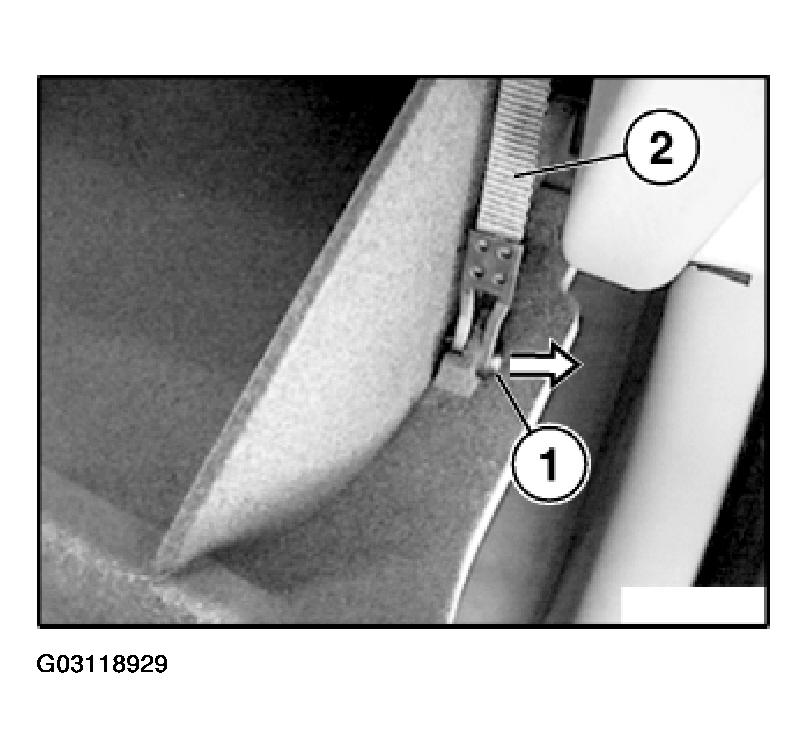

Detach pin (1) from retaining strap (2).

Fig 1: Detaching Pin From Retaining Strap

Courtesy of BMW OF NORTH AMERICA, INC.

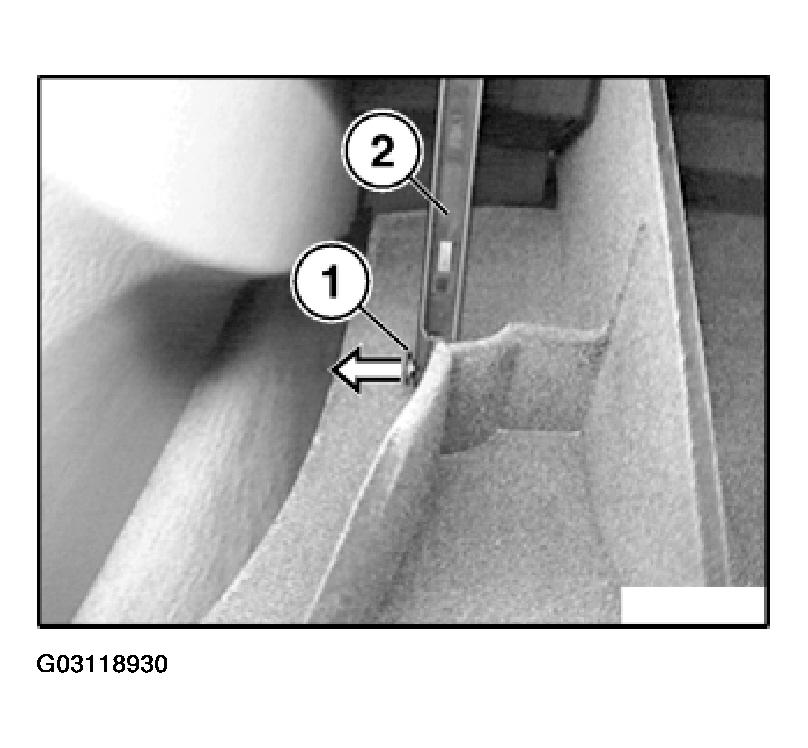

Detach pin (1) from shock absorber (2).

Fig 2: Locating Pin In Shock Absorber

Courtesy of BMW OF NORTH AMERICA, INC.

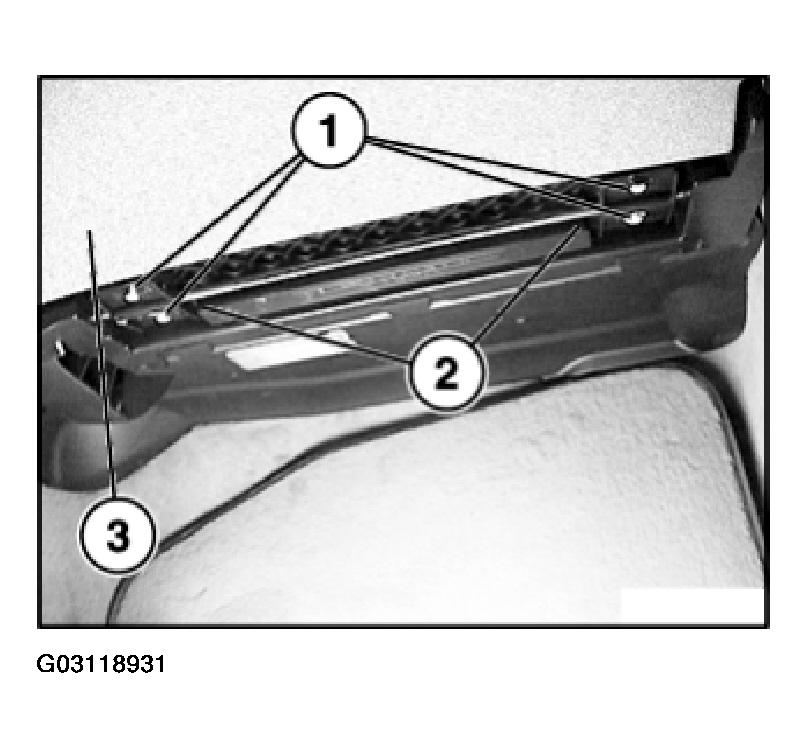

Unscrew bolts (1).

Remove bracket (2) and glove box (3).

Fig 3: Removing Bracket Retaining Bolts

Courtesy of BMW OF NORTH AMERICA, INC.
