51 16 000 Removing And Installing/Replacing Mirror On Left Or Right Front Door (Coupe)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Remove front door trim panel, refer to REMOVING AND INSTALLING FRONT LEFT OR RIGHT DOOR TRIM PANEL (COUPE, CONVERTIBLE) .

Removing Trim From Triangular Mirror Section:

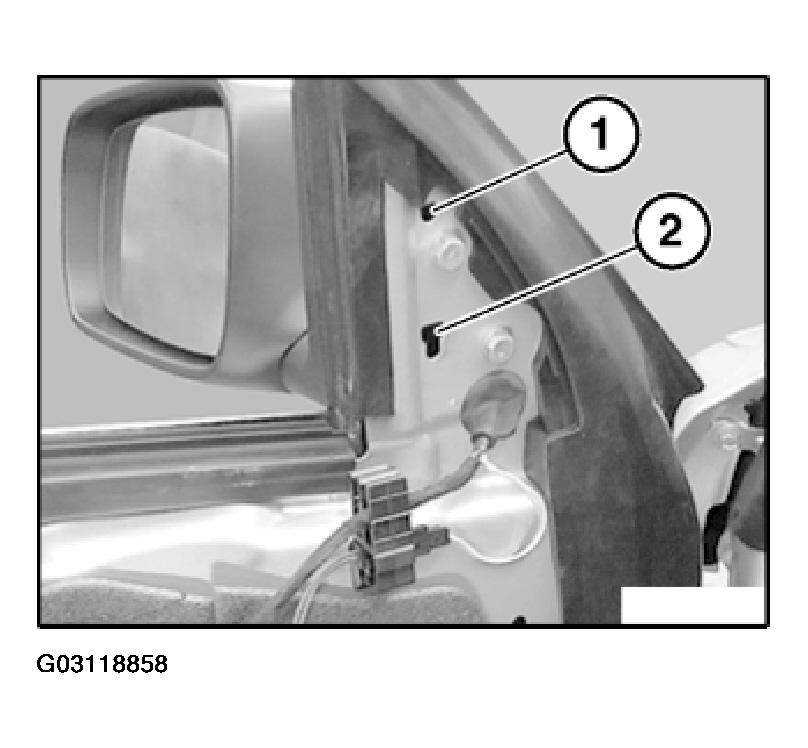

NOTE: Trim is clipped into place at top (1) and secured at bottom by a guide (2).

Fig 1: Removing Trim From Triangular Mirror Section

Courtesy of BMW OF NORTH AMERICA, INC.

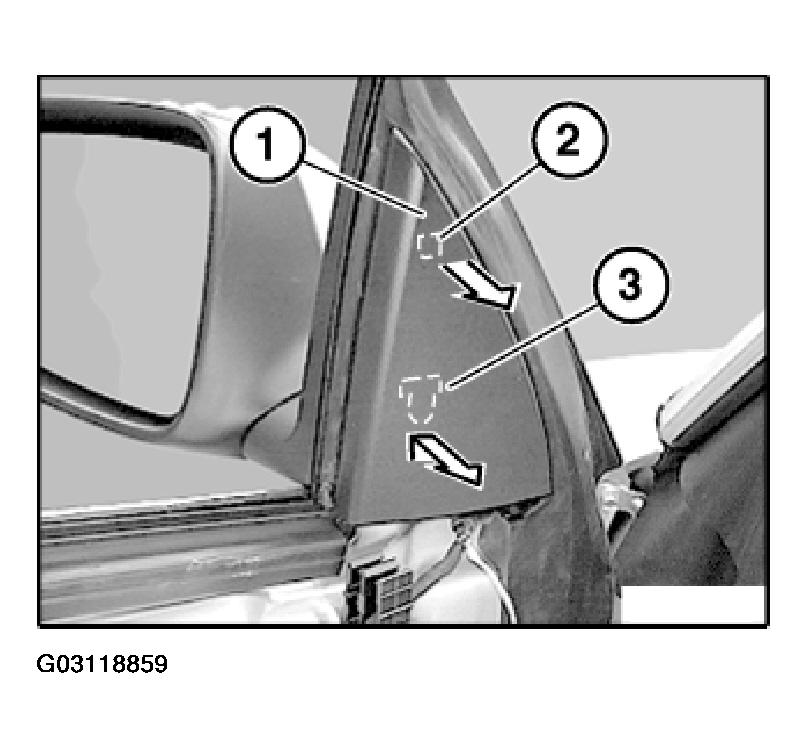

Removal of trim (1):

Unclip top clip (2) towards inside.
Slide trim (1) towards top a little.
Remove trim (1) towards inside.

Fig 2: Removing Triangular Mirror Section Trim
Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

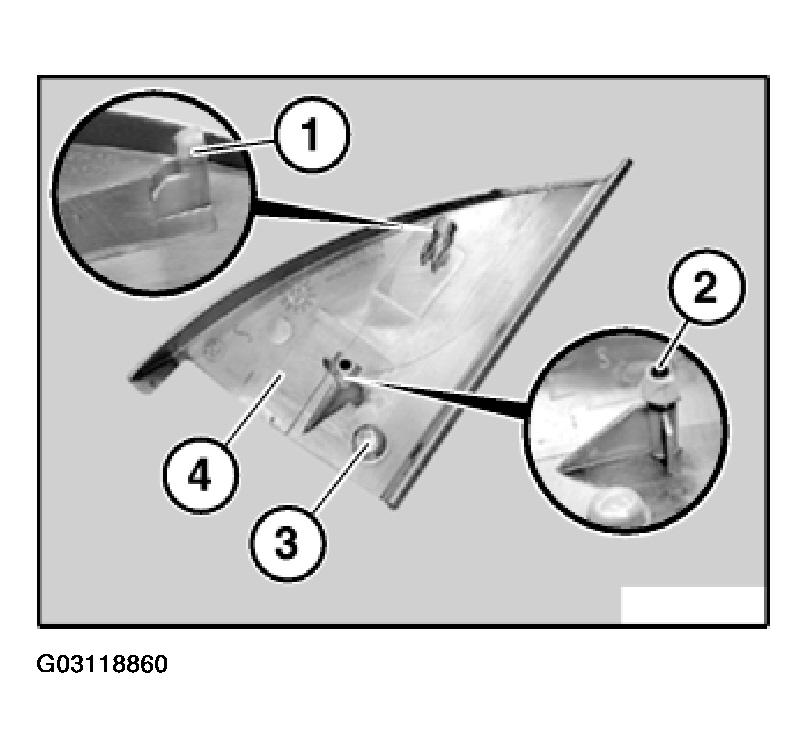

Clip (1) and guide (2) of trim (4) must not be damaged.
If necessary, fit spacer buffer (3).

Fig 3: Installing Spacer Buffer
Courtesy of BMW OF NORTH AMERICA, INC.

Removing Mirror:

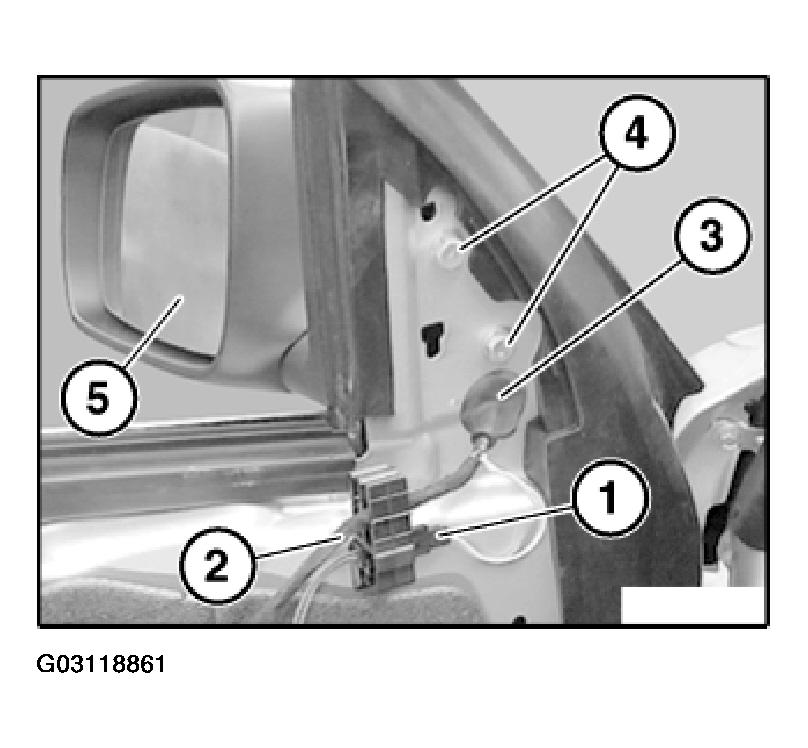

Unfasten plug connection (1).

Remove cable (2) from holder.

Press rubber grommet (3) outwards.

Release screws (4) and feed out mirror (5) with cable.

Fig 4: Removing Cable From Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Tightening Torque, refer to 51 16 1AZ in BODY EQUIPMENT - TIGHTENING TORQUES - 3-SERIES .
Replacement only:
Because of the thread-cutting screws, the tightening torque increases by 2 N.m. when the mirror is new, refer to 51 16 1AZ in BODY EQUIPMENT - TIGHTENING TORQUES - 3-SERIES .

Installation:

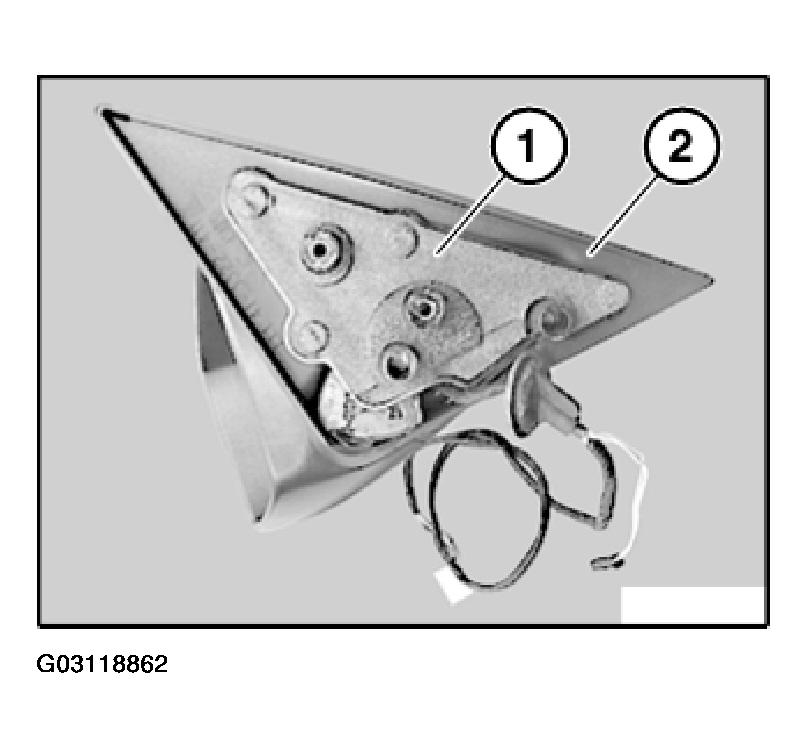

Fit mirror base (2) with sound insulation (1).

Check function.

Fig 5: Locating Mirror Base With Sound Insulation

Courtesy of BMW OF NORTH AMERICA, INC.
