51 71 041 Removing And Installing/Replacing Rear Left Or Right Wheel Arch Cover

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Shown here without rear wheel to illustrate details better.

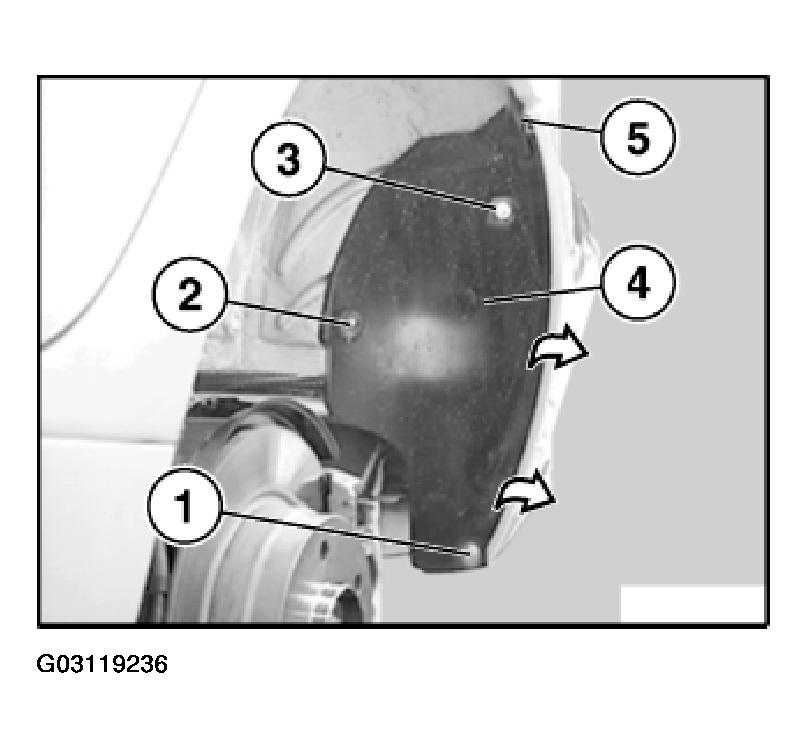

Release expansion rivet (1), plastic nut (2), and screw (3).

NOTE: Version with tire-pressure checking system: Disconnect plug connection after levering out wheel arch cover (4).

Lever out wheel arch cover (4) and remove.

Installation:

Insert wheel arch cover (4) at top into bumper (5).

Fig 1: Releasing Wheel Arch Cover
Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

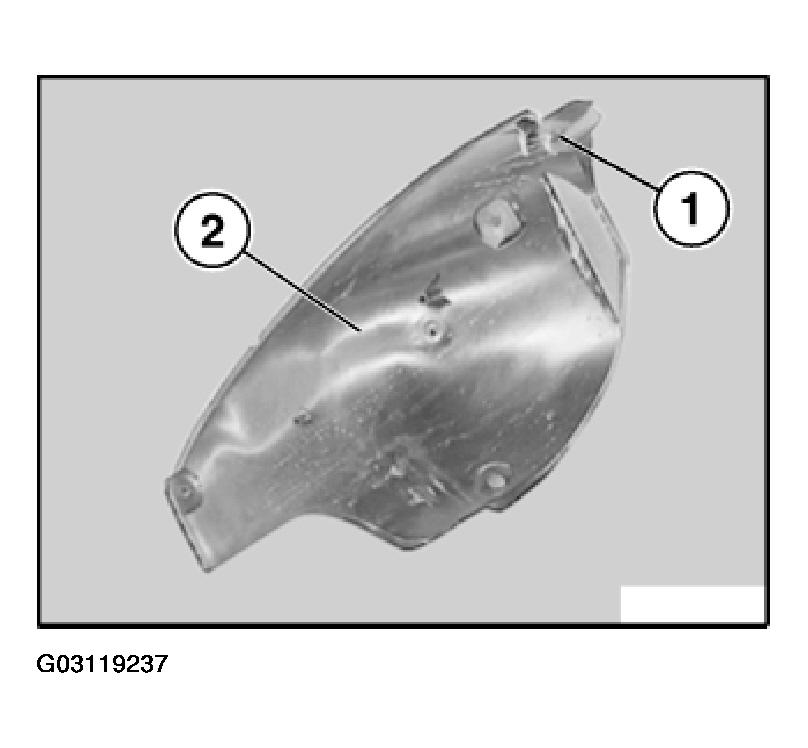

Guide (1) of wheel arch cover (2) must not be damaged.

Fig 2: Identifying Guide Of Wheel Arch Cover
Courtesy of BMW OF NORTH AMERICA, INC.

Replacement with tire-pressure checking system only:

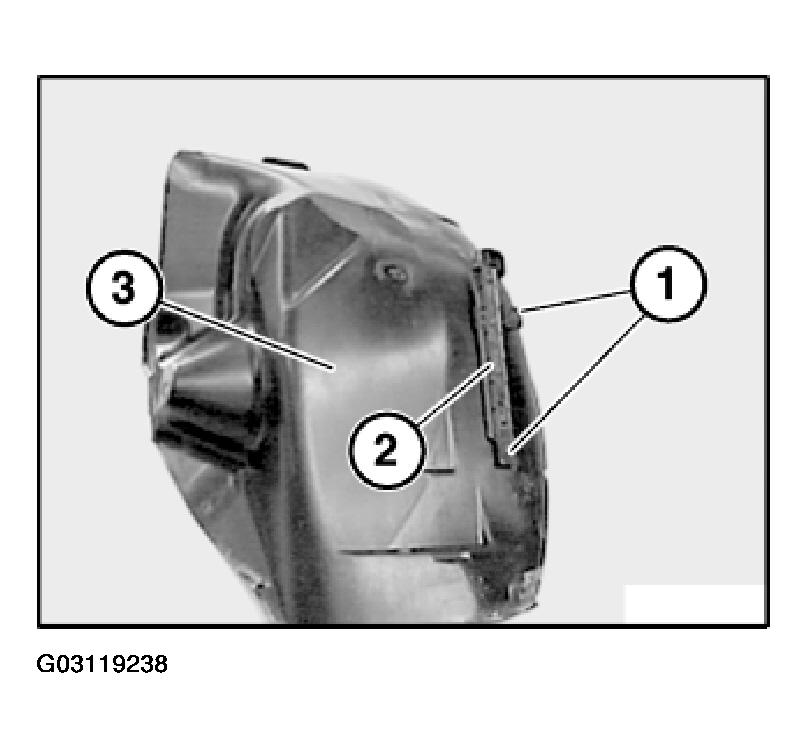

Release screws (1) and remove receiving antenna (2) from wheel arch cover (3).

Fig 3: Locating Receiving Antenna In Wheel Arch Cover

Courtesy of BMW OF NORTH AMERICA, INC.
