51 41 060 Removing And Installing Armrest On Front Left Or Right Door (Coupe)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Remove front door trim panel, refer to REMOVING AND INSTALLING FRONT LEFT OR RIGHT DOOR TRIM PANEL (COUPE, CONVERTIBLE) .

Release screws (1).

Installation:

Screw down retaining strap for airbag cover correctly.
Tightening Torque, refer to 51 41 3AZ in BODY EQUIPMENT - TIGHTENING TORQUES - 3-SERIES .

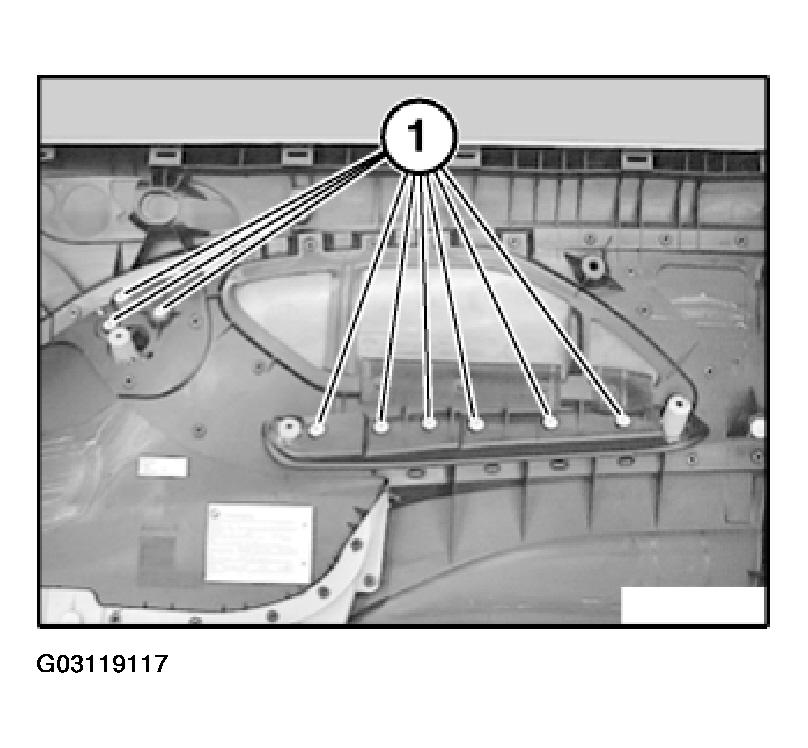

Fig 1: Locating Armrest Retaining Screws
Courtesy of BMW OF NORTH AMERICA, INC.

Pull armrest (1) off door trim panel (2).

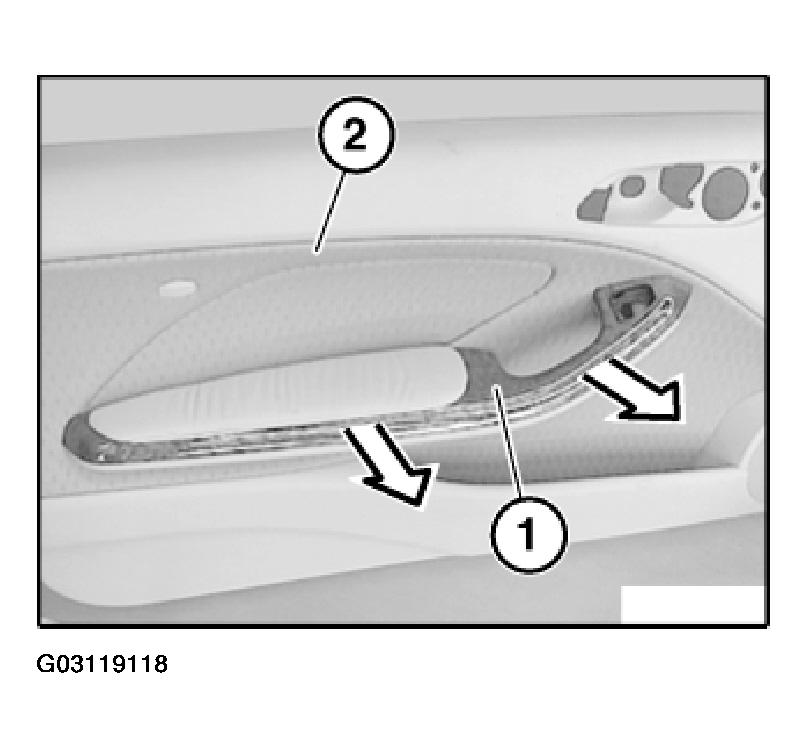

Fig 2: Removing Armrest From Door Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.
