51 21 330 Removing And Installing/Replacing Window Cavity Strip On Inside Front Door (Coupe)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Remove front door trim panel, refer to REMOVING AND INSTALLING FRONT LEFT OR RIGHT DOOR TRIM PANEL (COUPE, CONVERTIBLE) .

Unfasten clip (1).

Lever out clips (2) and (3) with cover (3).

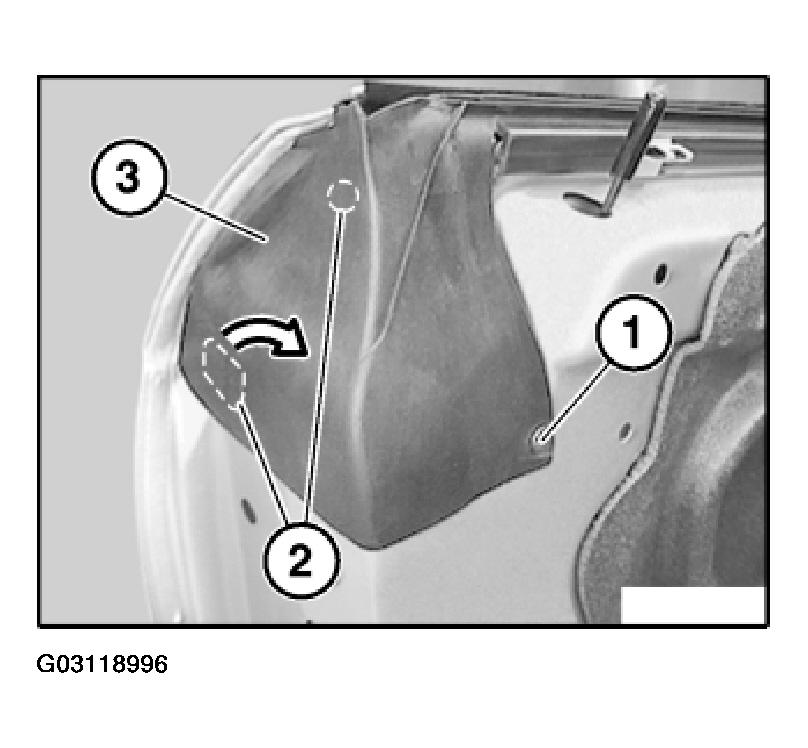

Fig 1: Removing Cover With Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Rib (2) of window cavity strip (1) must be positioned between supports (3) of window cavity strip (4).

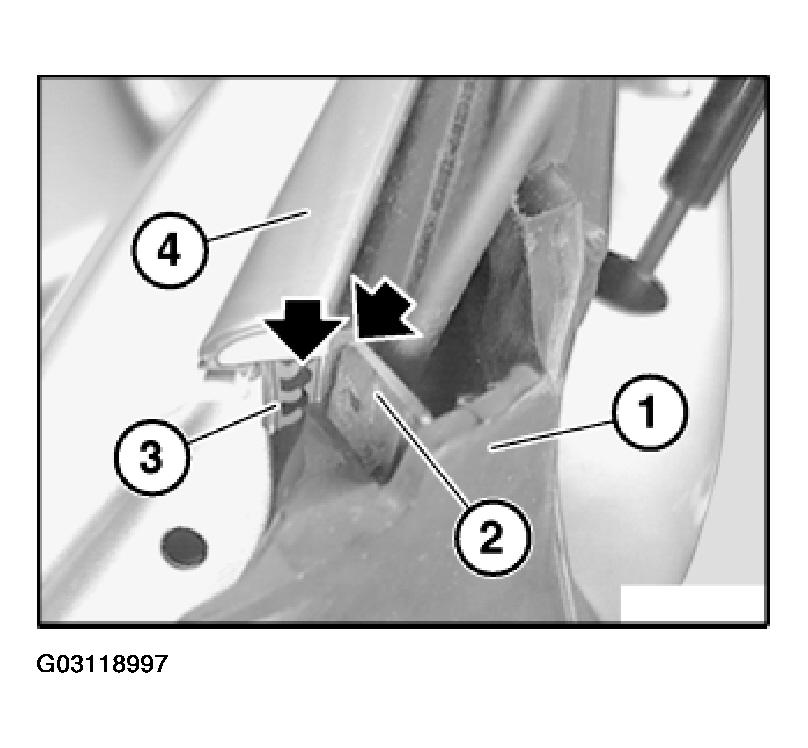

Fig 2: Identifying Rib Of Window Cavity Strip
Courtesy of BMW OF NORTH AMERICA, INC.

Remove window cavity cover strip (1) towards top.

Installation:

If necessary, remove faulty clips (2) from inner door panel and replace.
Prior to installation, coat window cavity cover strip (1) with soapy solution (washing-up liquid).
Begin installation at front.

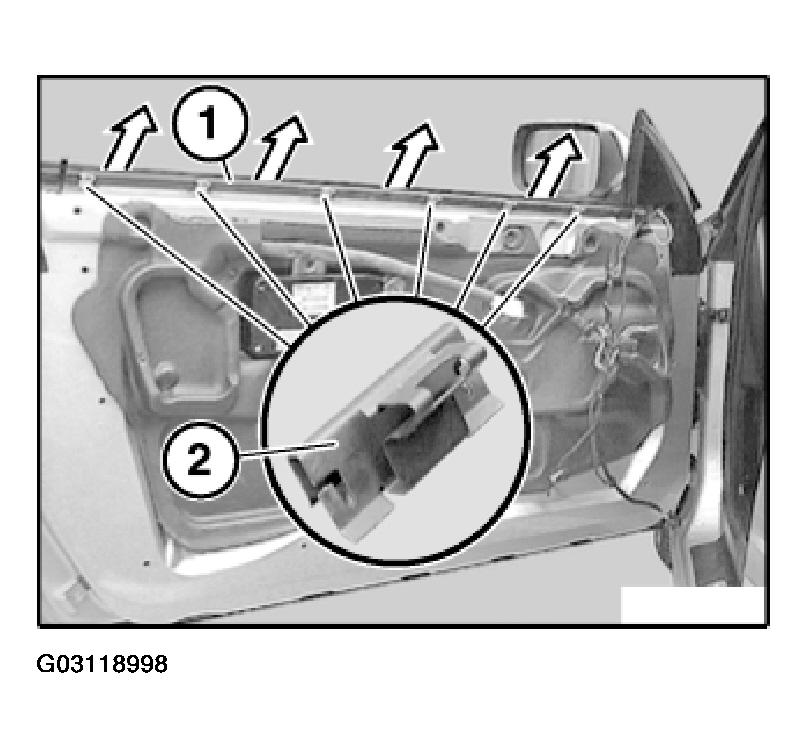

Fig 3: Identifying Window Cavity Cover Strip Clip
Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Bore (1) must not be stripped.
Clips (2) on cover (3) of window cavity strip (4) must not be damaged.

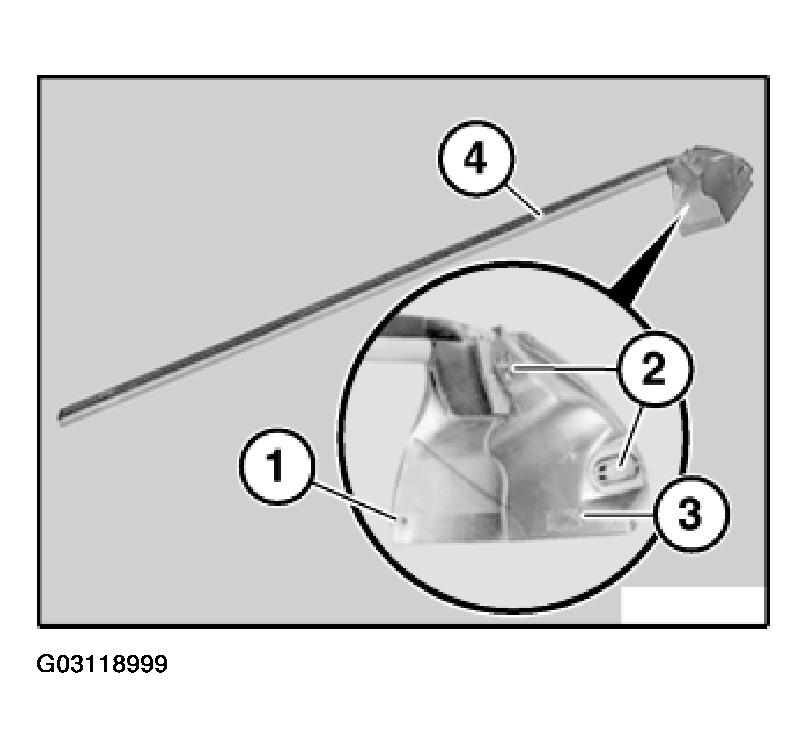

Fig 4: Locating Clips On Cover Of Window Cavity Strip
Courtesy of BMW OF NORTH AMERICA, INC.
