51 21 300 Removing And Installing Or Replacing Window Cavity Cover Strip On Outside Of Left Or Right Front Door

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see MAINTENANCE AND GENERAL INFORMATION - SPECIAL TOOLS .

Special Tools Required:

00 9 324

IMPORTANT: Observe procedure for using special tool 00 9 324. Refer to 51 2. ... REMOVING WINDOW CAVITY COVER STRIP WITH SPECIAL TOOL 00 9 324 AT FRONT OR REAR .

IMPORTANT: If reusing the existing window cavity cover strip (1), make sure it is not bent.

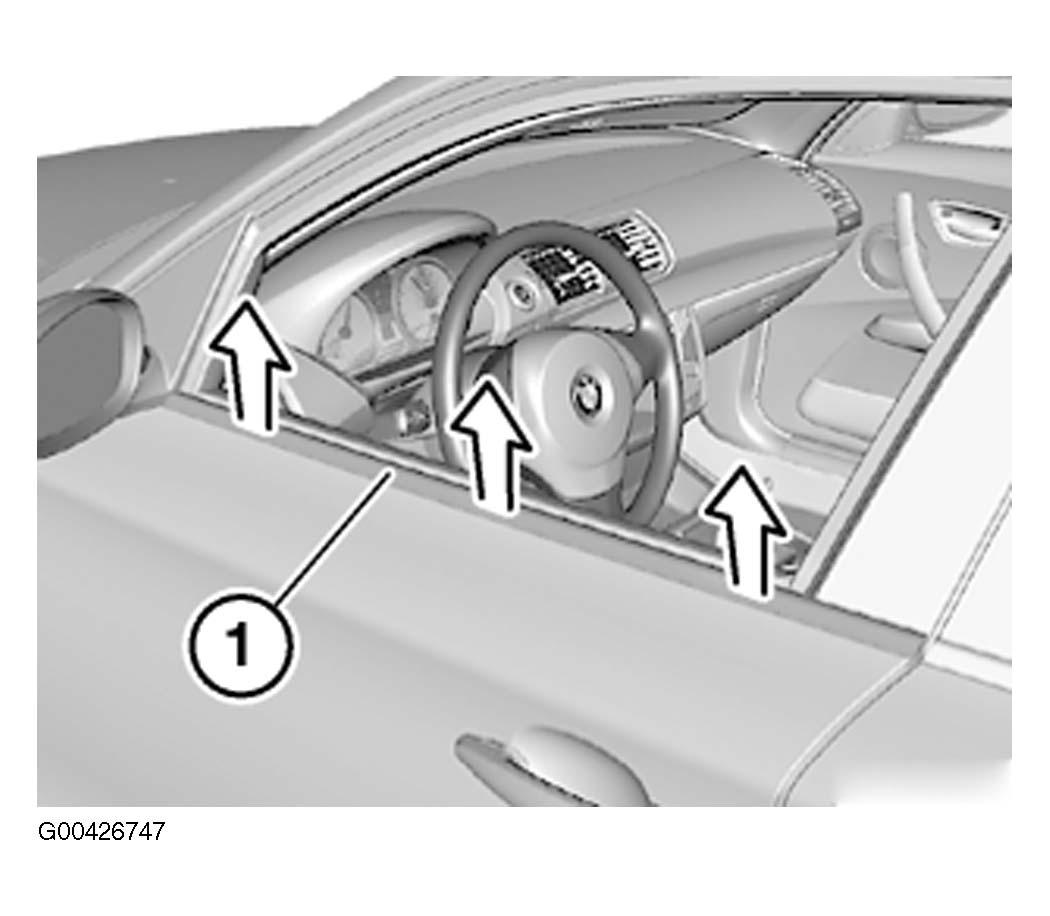

Lever out window cavity cover strip (1) with special tool 00 9 324 (starting at B-pillar).

Fig 1: Removing Window Cavity Cover Strip

Courtesy of BMW OF NORTH AMERICA, INC.

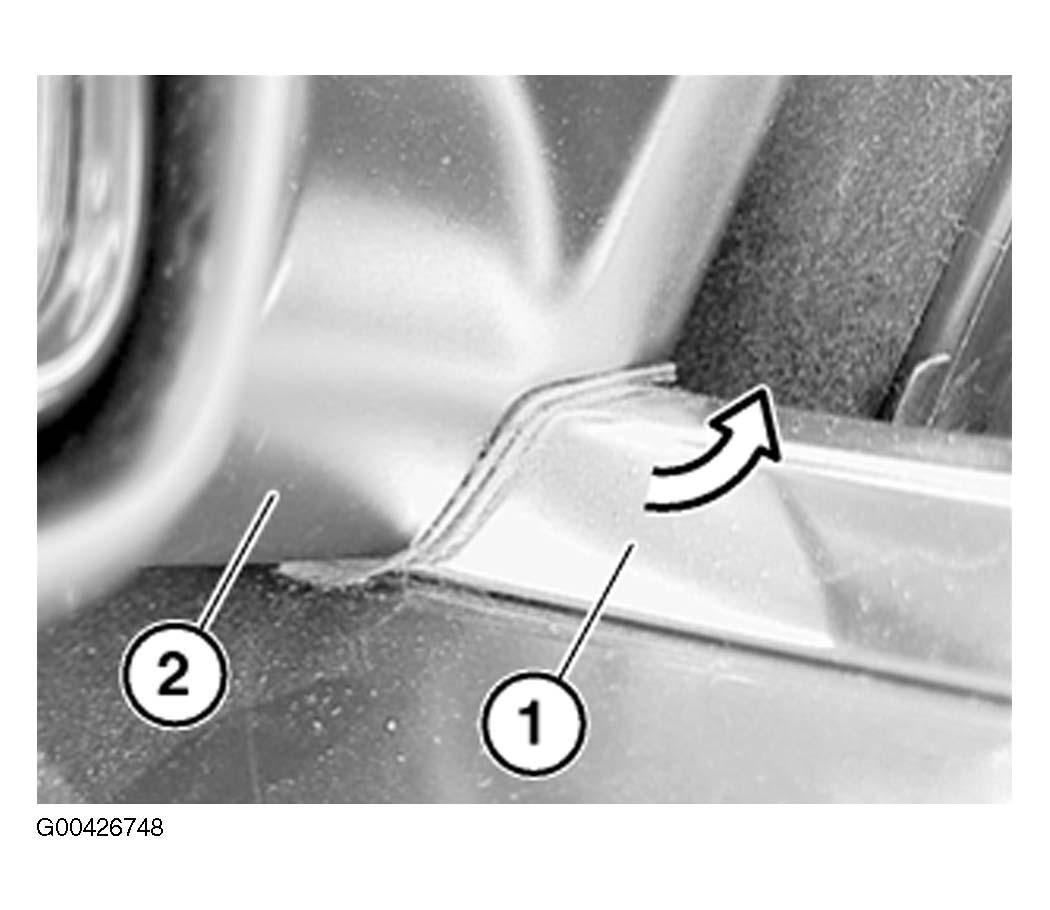

Pull window cavity cover strip (1) out of door mirror (2) in direction of arrow.

Installation:

Coat window cavity cover strip with water before fitting.

Window cavity cover strip (1) must be flush at rear to door edge.

Fig 2: View Of Window Cavity Cover Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

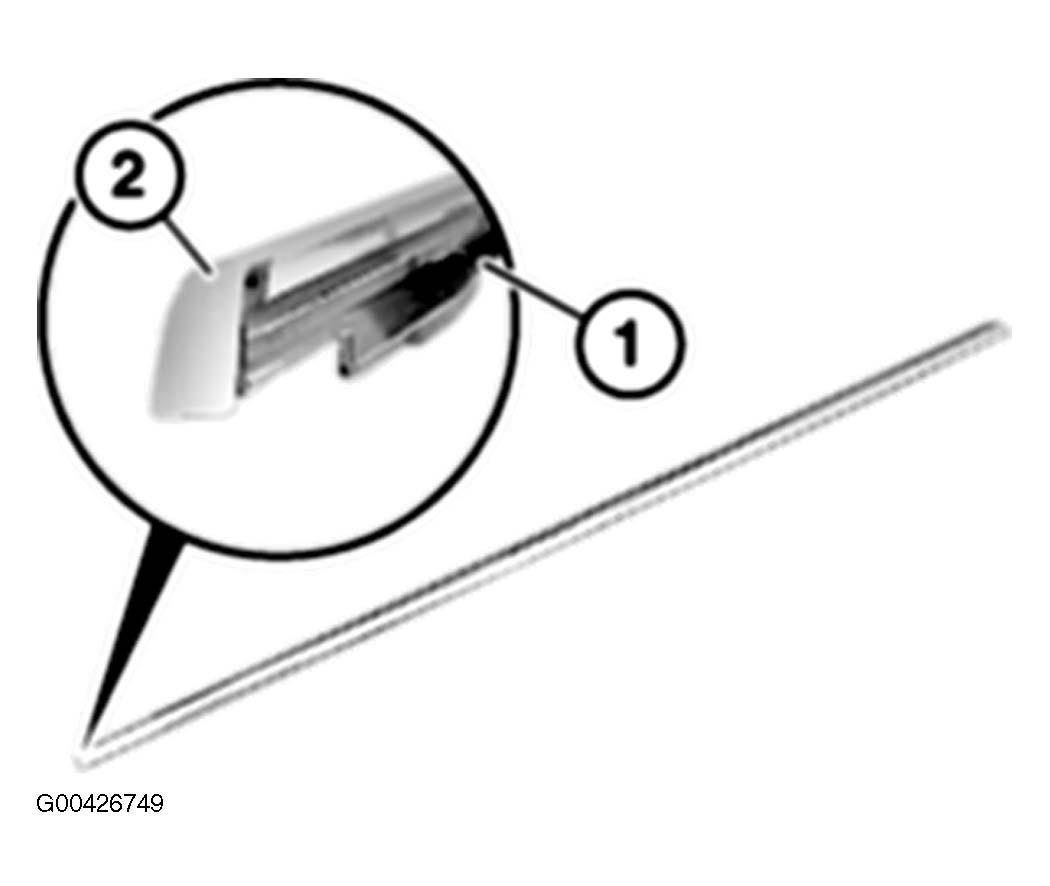

Seal (1) must be correctly fitted in cover strip (2).

Fig 3: Identifying Seal In Cover Strip

Courtesy of BMW OF NORTH AMERICA, INC.
