51 21 225 Removing And Installing/Replacing Inside Door Opener For Front Left Or Right Door (Coupe)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Remove front door trim panel, refer to REMOVING AND INSTALLING FRONT LEFT OR RIGHT DOOR TRIM PANEL (COUPE, CONVERTIBLE) .

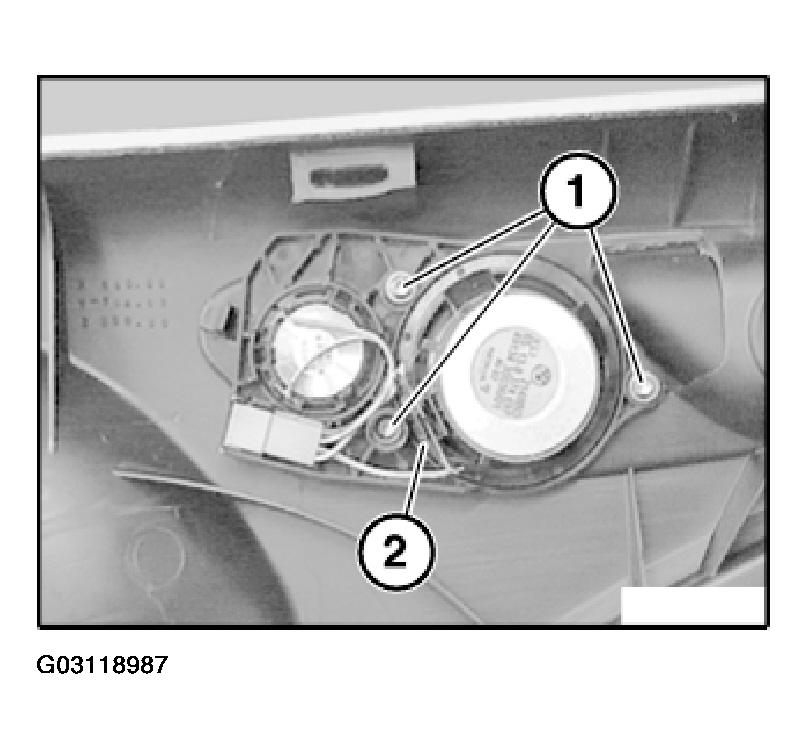

Release screws (1) and remove speaker (2).

Fig 1: Removing Speaker Screws

Courtesy of BMW OF NORTH AMERICA, INC.

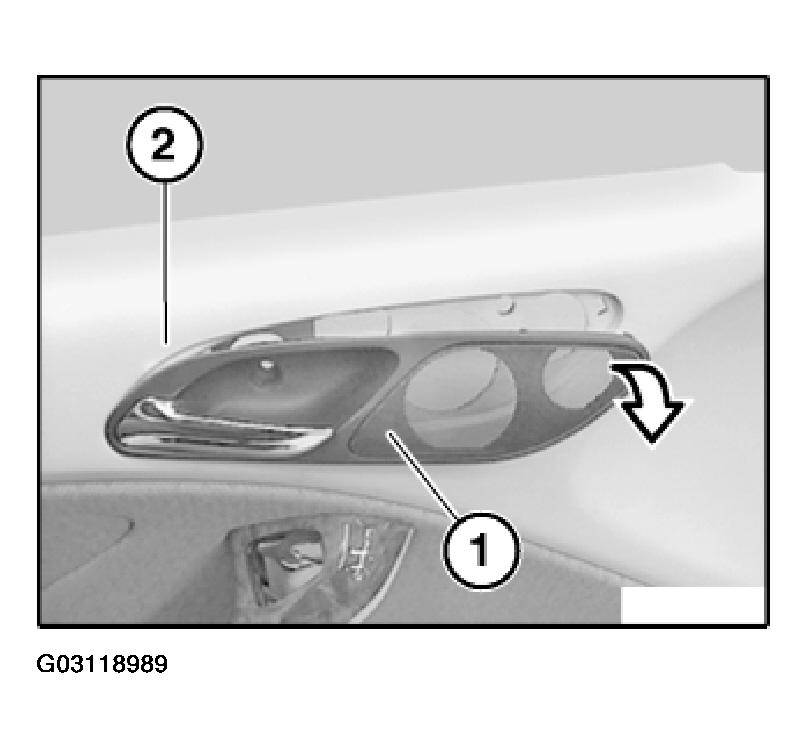

Lever out catch (1) and press trim (2) out a little.

Fig 2: View Of Trim

Courtesy of BMW OF NORTH AMERICA, INC.

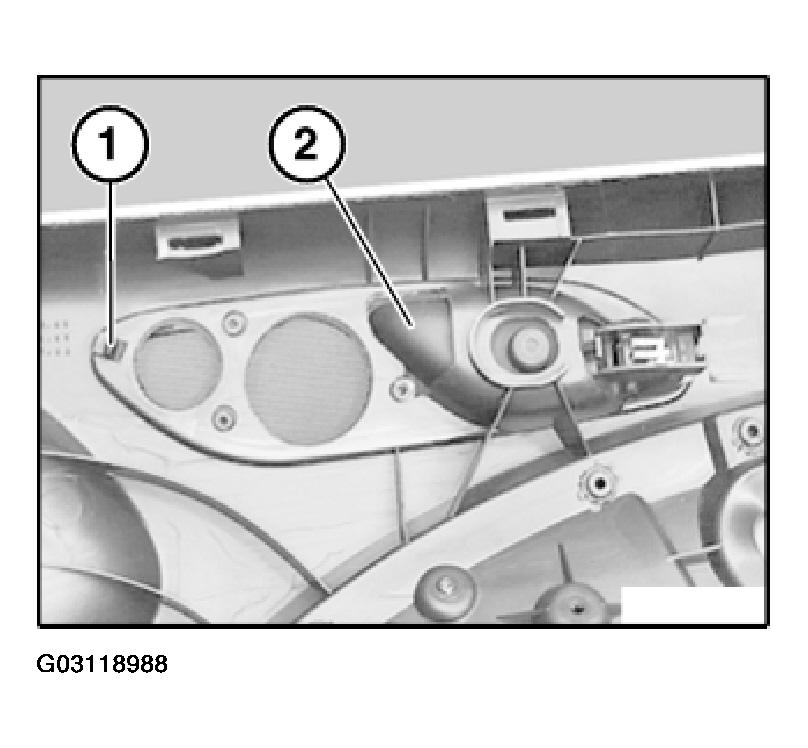

Pull inside door handle (1) forwards out of door trim panel (2).

Fig 3: Removing Inside Door Handle

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

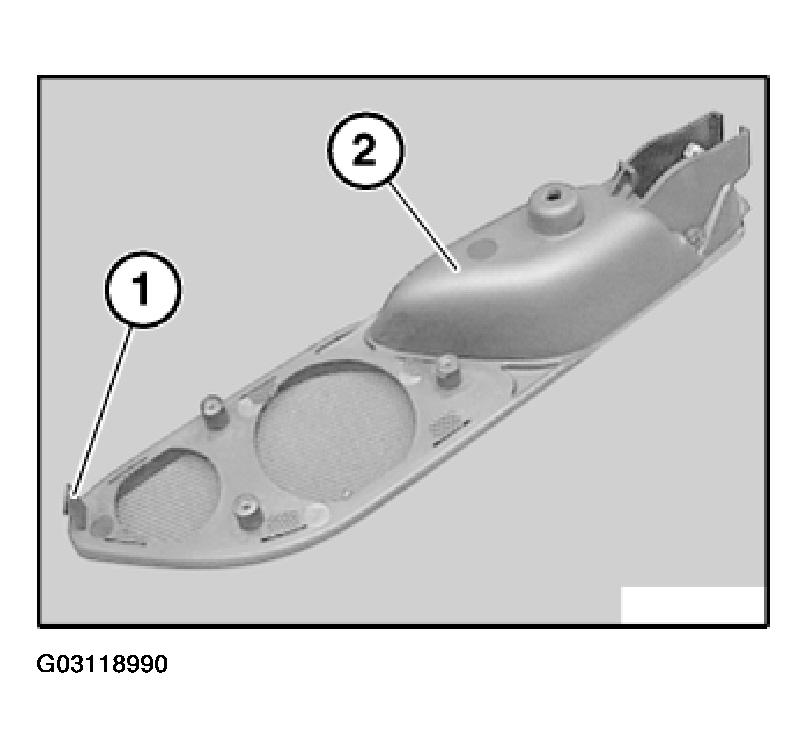

Catch (1) on inside door handle (2) must not be damaged.

Fig 4: Identifying Catch On Inside Door Handle
Courtesy of BMW OF NORTH AMERICA, INC.
