51 11 701 Replacing Bracket For Front Left Or Right Bumper (Saloon/Sedan And Touring Up To 9/01)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove front bumper. Refer to 51 11 000 REMOVING AND INSTALLING COMPLETE FRONT BUMPER (M3, M3 CSL) .

If necessary, mark position of bracket (2) on body.

Unfasten screws (1) and remove bracket (2).

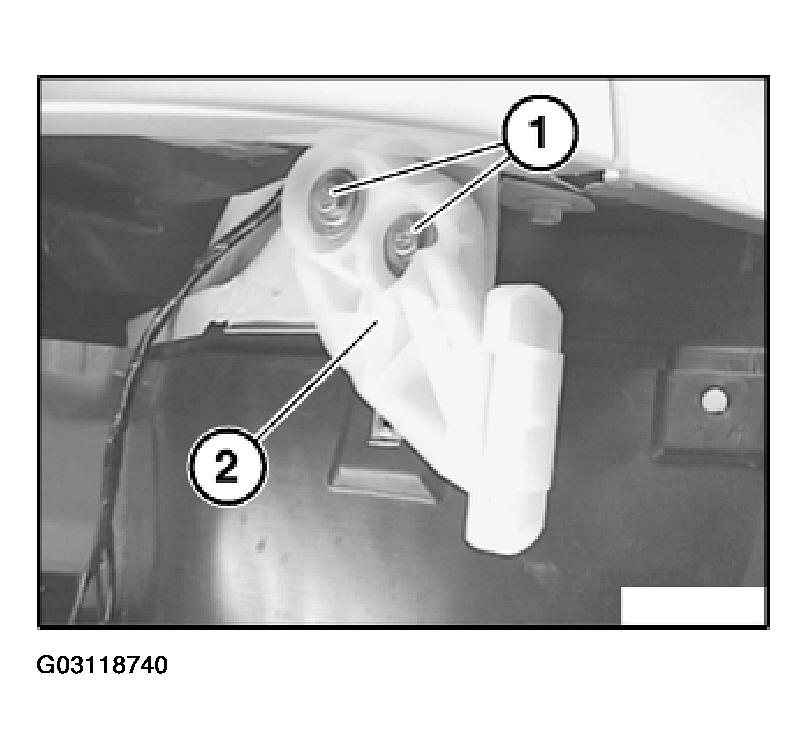

Fig 1: Identifying Bumper Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

Ideal adjustment:

Gap (A) should be uniform along the full length between bumper and aperture in body.

Dimension (A) = 5 +/- 1 mm

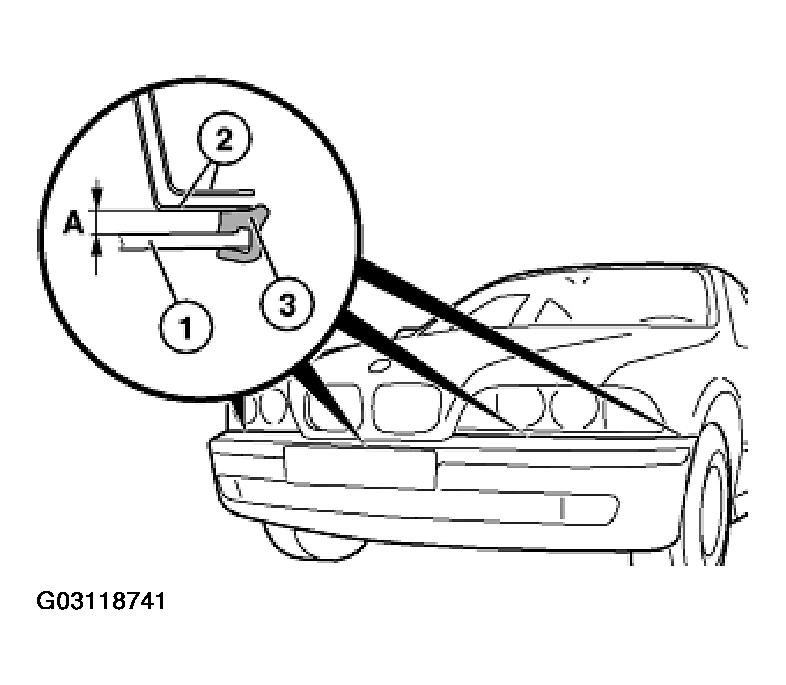

Fig 2: Identifying Bumper Gap

Courtesy of BMW OF NORTH AMERICA, INC.
