51 15 330 Removing And Installing/Replacing Body Molding On Left Or Right Front Door (Coupe)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: To prevent ends of molding from bending: Using two special tools 00 9 317 (trim panel wedge), unclip clips (2) of molding (1).

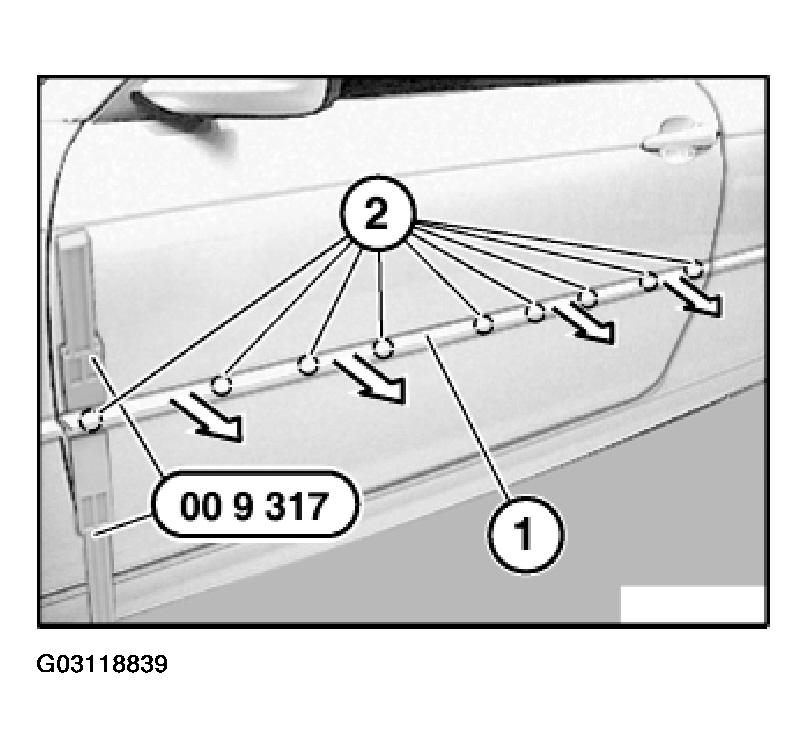

Fig 1: Locating Clips Of Molding

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, lever out clips in front door.

Installation:

If necessary, replace faulty rubber grommets (1) and clips (2).
Prior to installation, coat rubber grommets (1) with soapy solution (washing-up liquid).
Snap clips with rubber grommet into molding (3) and align.

Clip molding (3) into door.

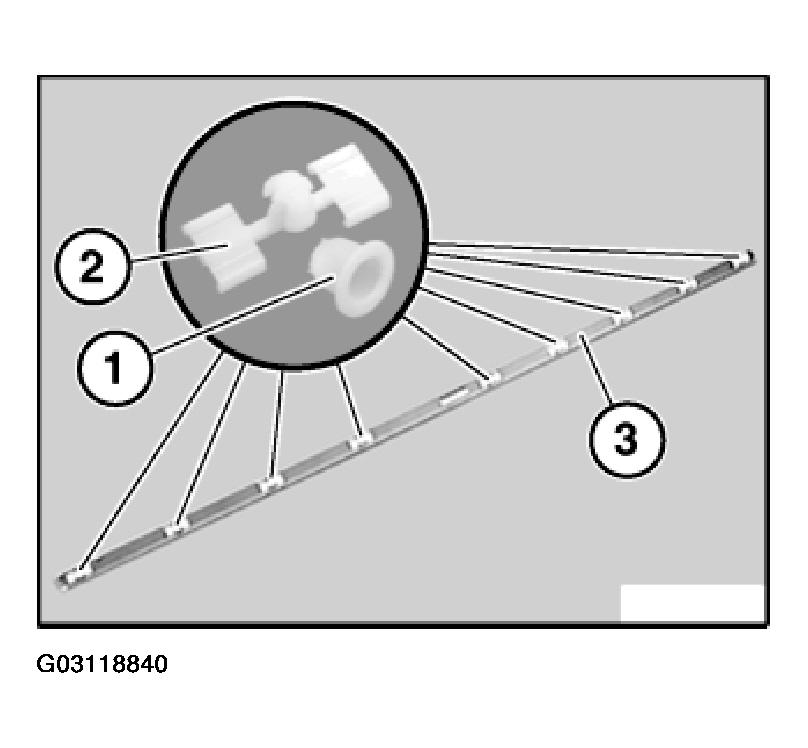

Fig 2: Identifying Clips With Rubber Grommets

Courtesy of BMW OF NORTH AMERICA, INC.
