13 90 500 Replacing Tank Venting Valve (S54)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Turn off ignition.

NOTE: Tank venting valve is fitted at front under intake air manifold.

Remove upper section of intake filter housing. Refer to 13 71 000 REMOVING AND INSTALLING INTAKE FILTER HOUSING (S54) .

Unlock plug (2) and detach from tank venting valve (1).

Press locking bar (4) and detach vent hose (3).

Detach hose (5) from tank venting valve (1).

Detach tank venting valve (1) with rubber holder together with intake air manifold.

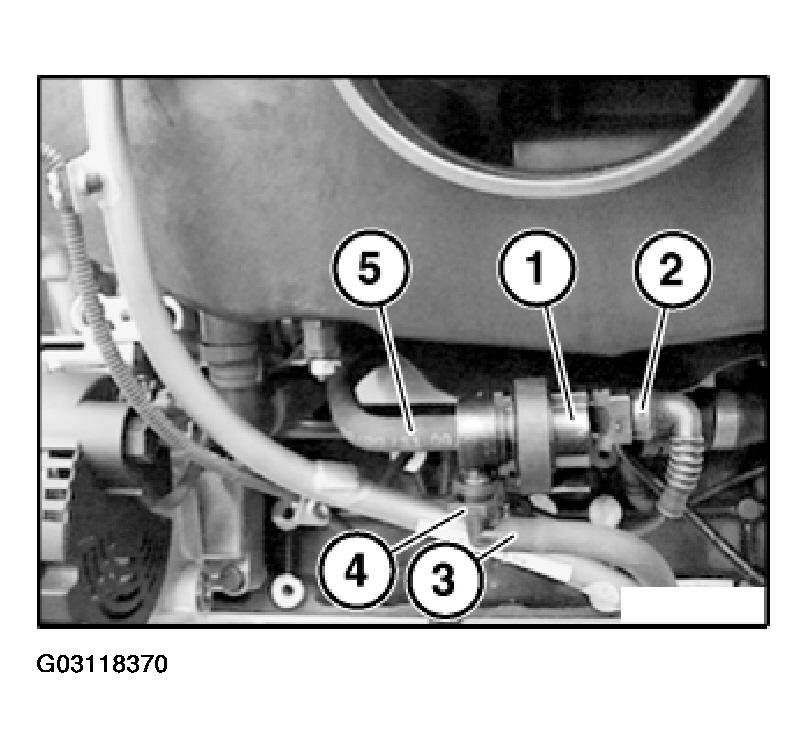

Fig 1: View Of Plug And Tank Venting Valve

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Interrogate fault memory of DME control unit. Check stored fault messages. Rectify faults. Then clear fault memory.
