Removal & Installation (Z3, M Roadster & M Coupe)

WARNING: This page does not describe the selected car, but rather 61 other vehicles, including the 2002 BMW Z3, 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW Z3, and 2001 BMW M Roadster. However, it is still accessible from the selected car via links, so may be relevant.

Turn rotary clips (1) through 90° and remove. Pull trim (2) downwards and backwards to remove. Do not damage the guides (3). See Fig 1 .
Remove caps (1) and screws. Unscrew trim (2) and pull outwards and downwards to remove from oddments tray (3). See Fig 2 .
To install, reverse removal procedure. Replace defective covers (1). See Fig 2 .
Slide on speed nuts (1). Fit seal (2) on steering column and seal (3) on air outlet (heating) correctly. See Fig 3 .
Do not damage guides (1) on the trim (2). See Fig 4 .

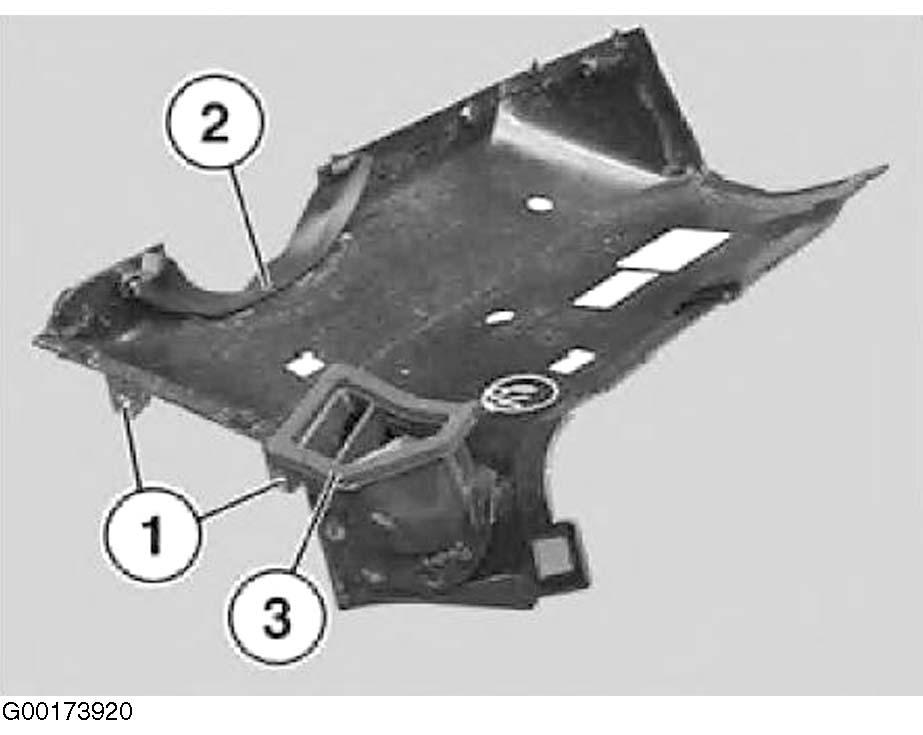

Fig 1: Removing Trim (Z3, M Roadster & M Coupe)

Courtesy of BMW OF NORTH AMERICA, INC.

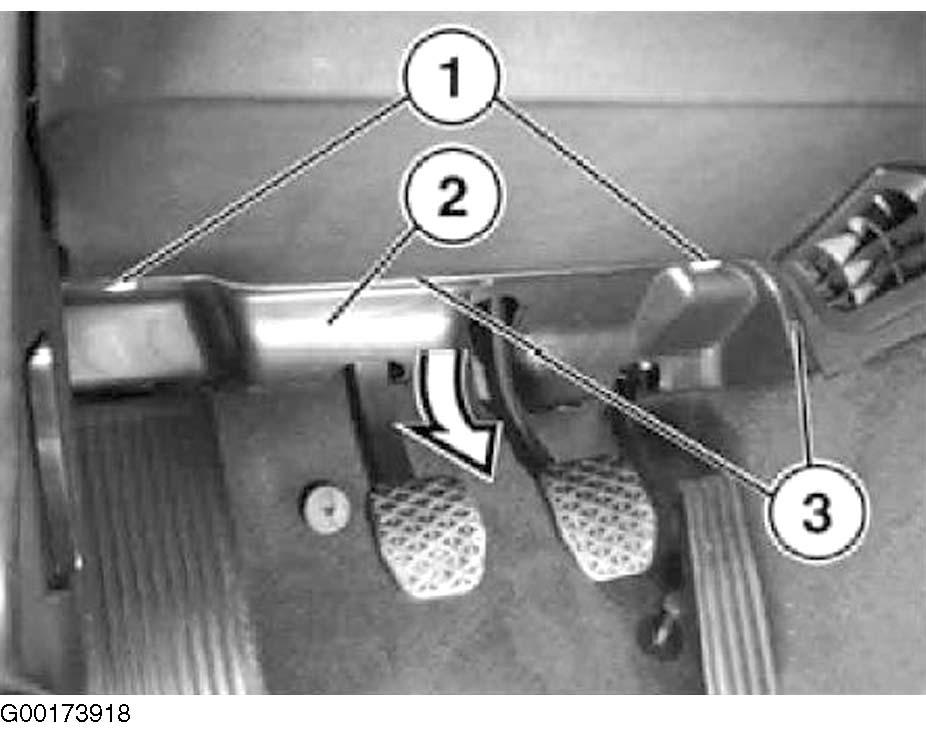

Fig 2: Removing Trim From Oddments Tray (Z3, M Roadster & M Coupe)

Courtesy of BMW OF NORTH AMERICA, INC.

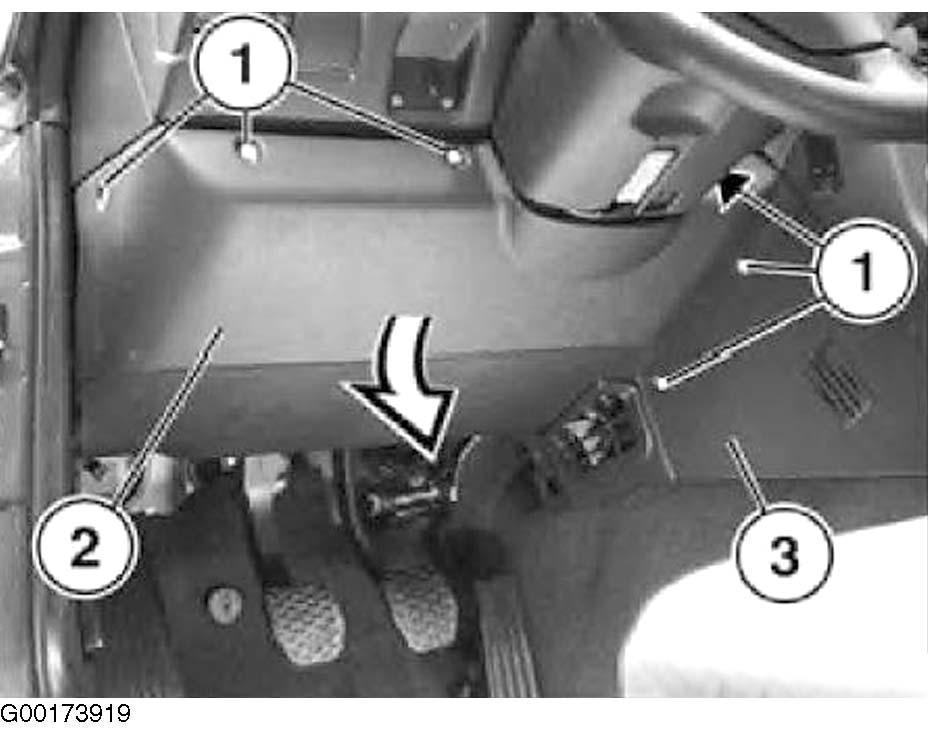

Fig 3: Locating Trim Components (Z3, M Roadster & M Coupe)

Courtesy of BMW OF NORTH AMERICA, INC.

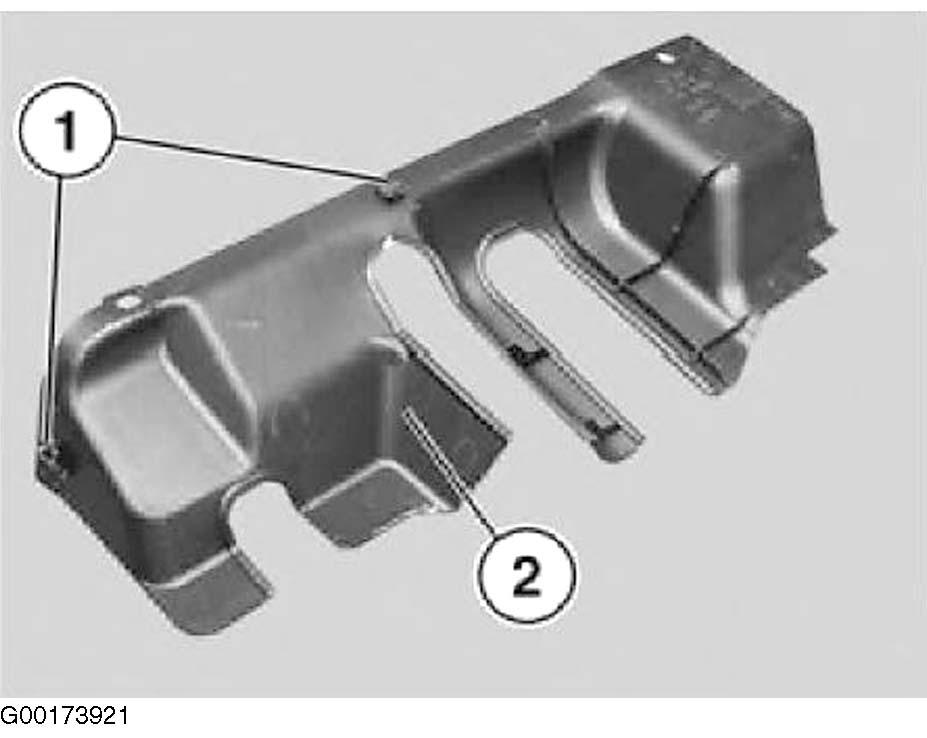

Fig 4: Locating Guides On Trim (Z3, M Roadster & M Coupe)

Courtesy of BMW OF NORTH AMERICA, INC.
