Removal & Installation (318i, 318is, 325i, 325is, 328i, 328is, & M3 )

WARNING: This page does not describe the selected car, but rather 61 other vehicles, including the 2002 BMW Z3, 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW Z3, and 2001 BMW M Roadster. However, it is still accessible from the selected car via links, so may be relevant.

Remove bottom trim panel screws at left side of center console. See Fig 1 .
Pull bottom trim panel to the side out of the clips. See Fig 2 .
To install, reverse removal procedure.

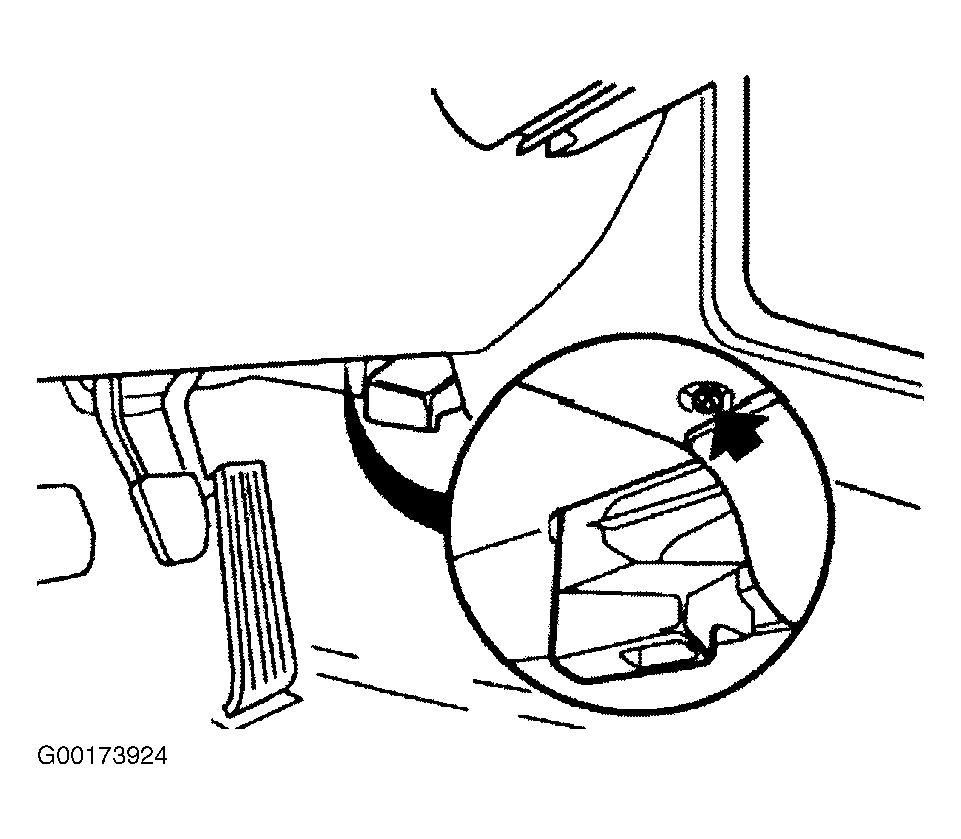

Fig 1: Locating Trim Panel Screws (318i, 318is, 325i, 325is, 328i, 328is, & M3 )

Courtesy of BMW OF NORTH AMERICA, INC.

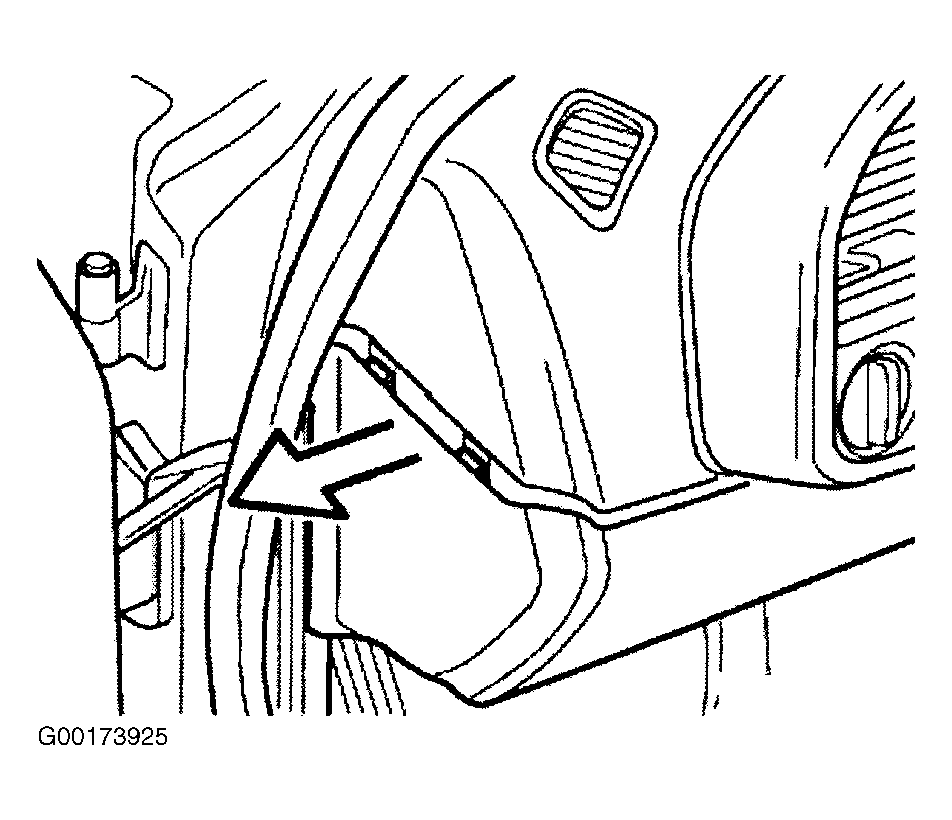

Fig 2: Pulling Bottom Trim Panel (318i, 318is, 325i, 325is, 328i, 328is, & M3 )

Courtesy of BMW OF NORTH AMERICA, INC.
