11 34 715 Replacing All Valve Seals - Cylinder Head Removed (S54)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Preliminary tasks are described in Disassembling and assembling cylinder head. Refer to 11 12 503 DISASSEMBLING AND ASSEMBLING CYLINDER HEAD - CYLINDER HEAD REMOVED (S54) .

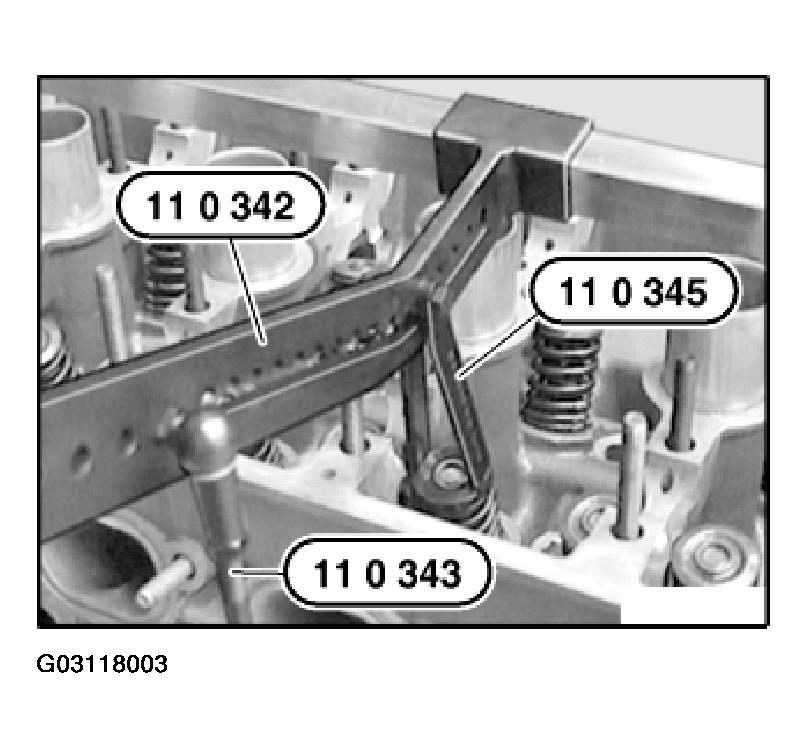

Align special tool 11 0 345 in direction to valve shaft and select corresponding groove in special tool 11 0 342.

Press down valve spring on spring plate at top with special tool 11 0 342 and hook in special tool 11 0 343 to special tool 11 1 065.

Fig 1: Compressing Valve Spring

Courtesy of BMW OF NORTH AMERICA, INC.

Remove valve cones.

Remove valve spring and spring plate.

Fig 2: Removing Valve Spring Tapers

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Incorrect installation possible. Incorrect installation will result in valve spring breakage.

The valve spring coils are narrower at the lower ends.

The color coding (3) is normally located at the lower end of the valve springs.

Only the position of the narrower coil is the decisive factor in correct installation of the valve springs (1 and 2).

Install valve springs (1 and 2) in such a way that lower coil points to spring plate at bottom.

Fig 3: Identifying Valve Springs

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: In event of damage to an inner or outer spring: replace inner and outer valve springs.

Arrangement:

Valve.
Lower plate spring.
Valve-stem seal.
Outer spring.
Inner spring.
Top spring plate.
Valve tapers.

Fig 4: View Of Valve Components
Courtesy of BMW OF NORTH AMERICA, INC.
