11 14 141 Replacing Radial Seal In Lower Timing Case Cover (S50/S54)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required:

11 1 220
11 2 380
11 2 384
11 5 090
11 7 240

Remove vibration damper. Refer to 11 23 010 REMOVING AND INSTALLING/REPLACING VIBRATION DAMPER (S54) .

NOTE: Illustrations show the S54.

The special tools and the actual procedure are identical for the S50.

Removal:

Fit special tool 11 2 384 on crankshaft.

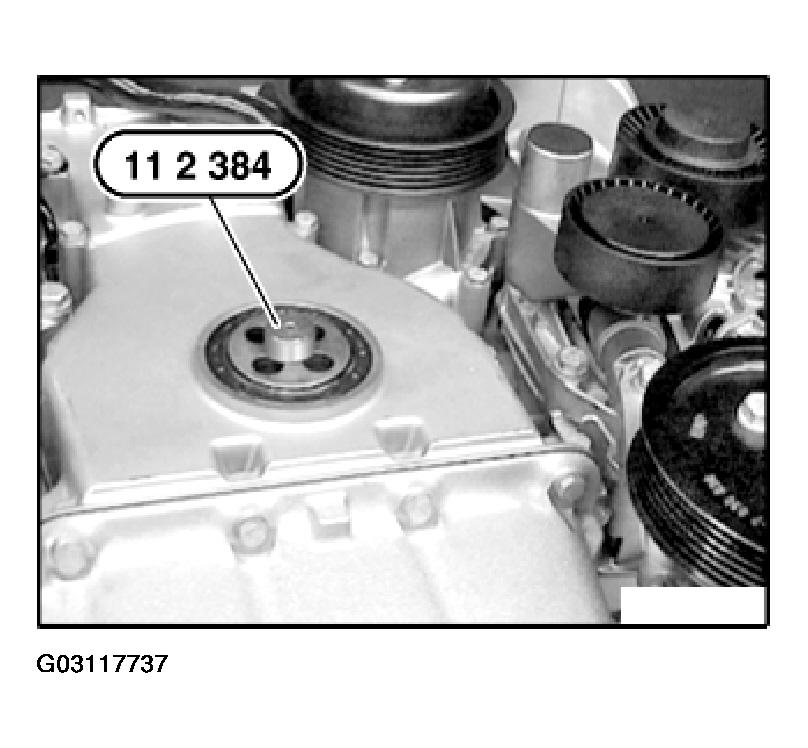

Fig 1: Installing Special Tool On Crankshaft

G03117737

Courtesy of BMW OF NORTH AMERICA, INC.

Screw in special tool 11 2 380 until it is firmly connected to the radial seal.

Remove radial seal by tightening in the screw.

Fig 2: Removing Radial Seal

G03117738

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

CAUTION: Do not touch sealing lip of new radial seal with your fingers.

Fit special tool 11 7 240 on sprocket wheel.

Oil sealing lips of new radial seal (1).

Push radial seal (1) over special tool 11 7 240 until it rests against timing case cover.

Remove special tool 11 7 240.

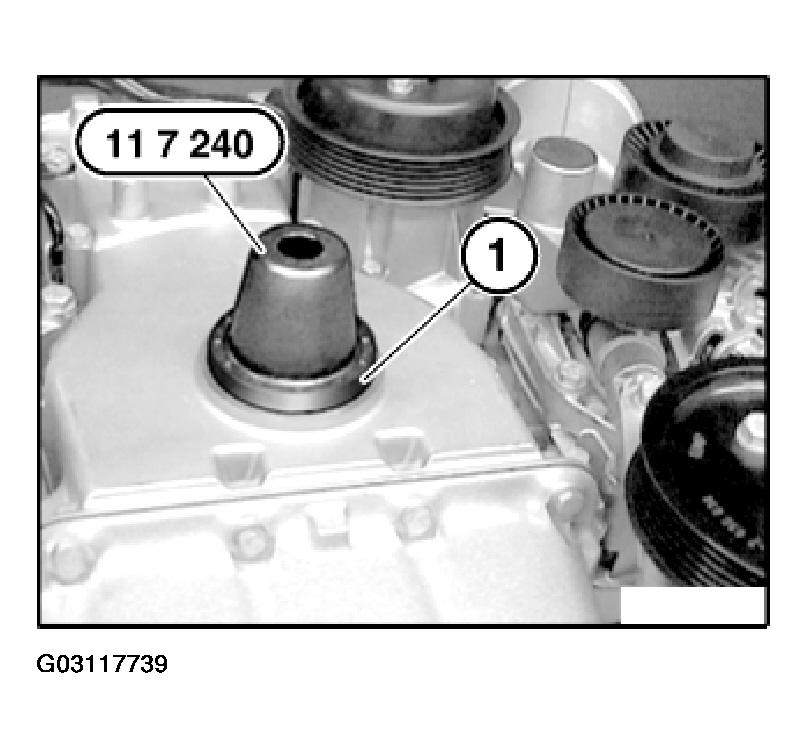

Fig 3: Identifying Fixture For Installing Rotary Shaft Seal

G03117739

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Do not touch sealing lip of new radial seal (1) when installing special tool 11 5 090.

Install special tool 11 5 090 and tighten down.

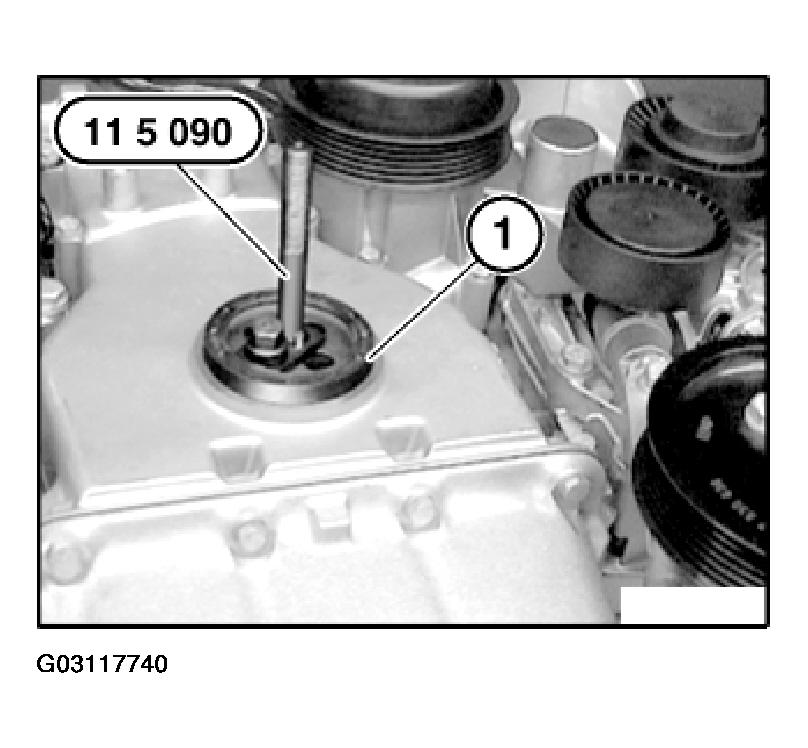

Fig 4: View Of Fixture In Timing Case Cover

G03117740

Courtesy of BMW OF NORTH AMERICA, INC.

Draw in new radial seal with special tool 11 1 220 until it is flush with timing case cover.

Fig 5: View Of Installation Bushing

G03117741

Courtesy of BMW OF NORTH AMERICA, INC.
