11 12 595 Checking A Valve Guide For Wear - Valve Removed (S50/S54)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Measure tilt clearance.

For measurement, install a new valve in such a way that the end of the valve shaft seals the valve guide.

Mount dial gauge and measure tilt clearance.

Max. permissible tilt clearance, refer to ENGINE - TECHNICAL DATA .

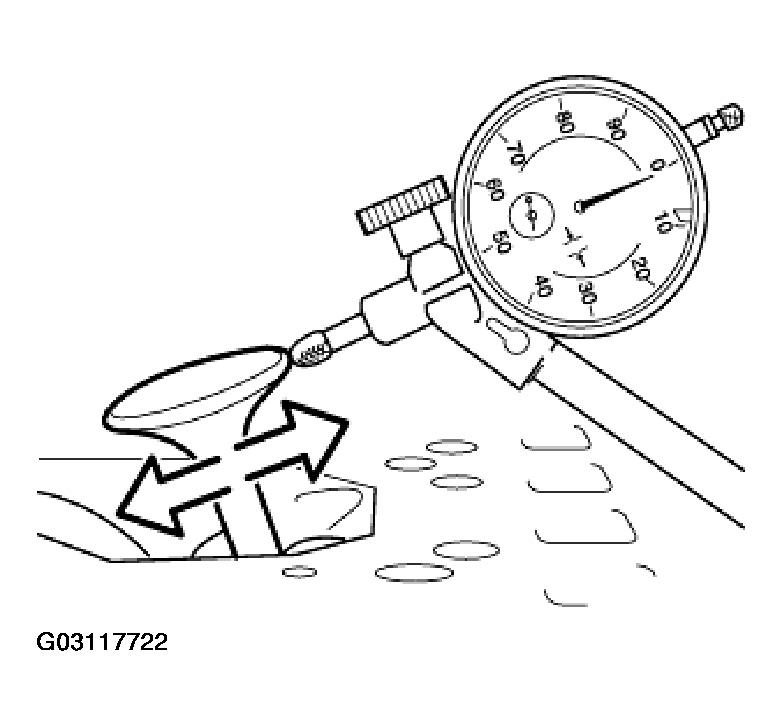

Fig 1: Measuring Tilt Clearance

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Repair valves of larger stem diameters are "not" supplied.

In event of excessive tilt clearance: replace cylinder head.
