11 21 571 Replacing Grooved Ball Bearing In Crankshaft (M52/S52/M52TU/M54/S50/S54)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required:

00 5 500
11 2 340
11 2 350

(Clutch removed)

IMPORTANT: In version with needle bearing (1) in dual-mass flywheel (2), no grooved ball bearing may be fitted in the crankshaft.

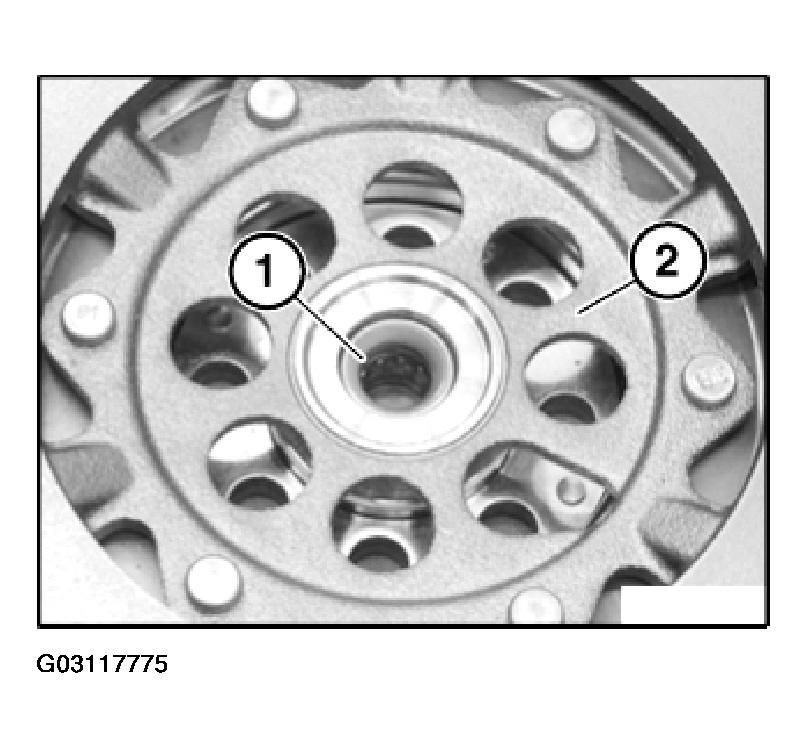

Fig 1: Locating Needle Bearing In Dual-Mass Flywheel

Courtesy of BMW OF NORTH AMERICA, INC.

Version With Grooved Ball Bearing:

Remove guide bearing with special tool 11 2 340.

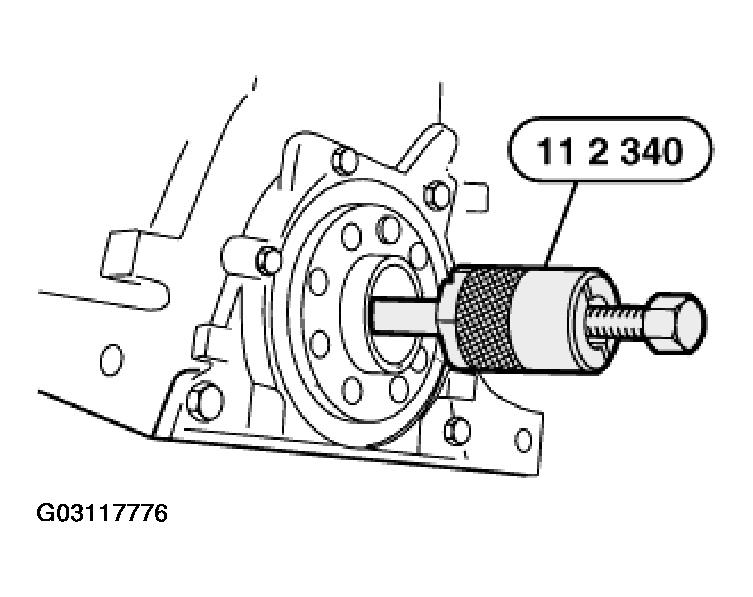

Fig 2: Removing Guide Bearing With Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Install new thrust bearing and drive firmly home with special tool 11 2 350 in conjunction with special tool 00 5 500.

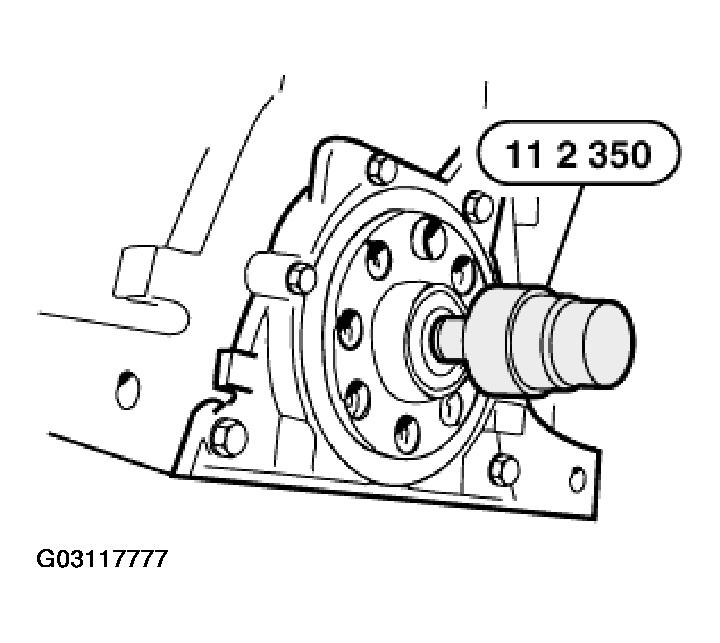

Fig 3: Installing New Thrust Bearing

Courtesy of BMW OF NORTH AMERICA, INC.
