62 21 000 Removing and installing complete instrument carrier

WARNING: This page does not describe the selected car, but rather 32 other vehicles, including the 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW 330xi, 2005 BMW 330i, and 2005 BMW 330Ci. However, it is still accessible from the selected car via links, so may be relevant.

Move steering column completely down and extend fully.

NOTE: Steering wheel remains installed. Shown without steering wheel for purposes of clarity.

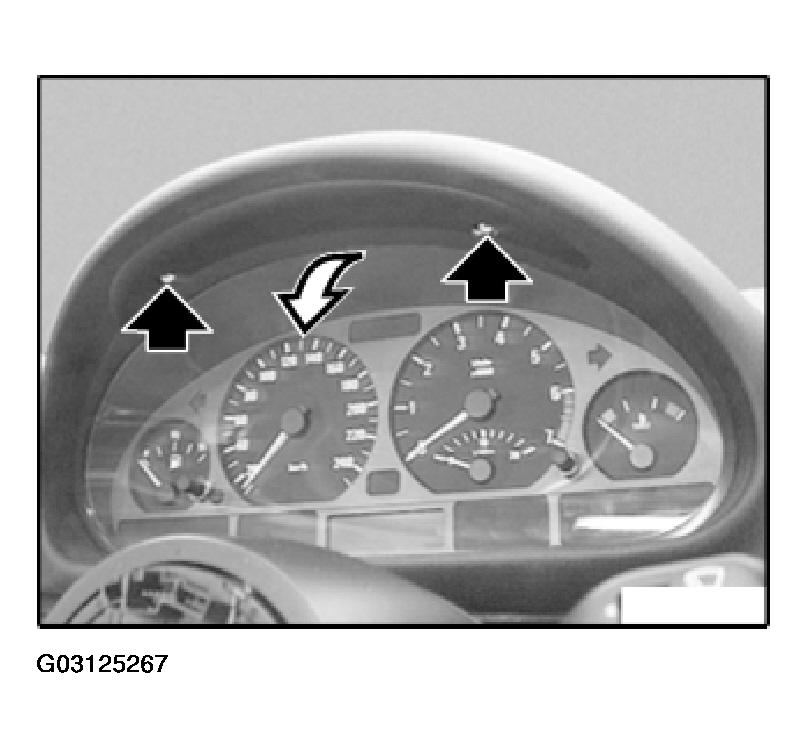

Unfasten screws and fold instrument carrier forwards.

Fig 1: Removing & Installing Instrument Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

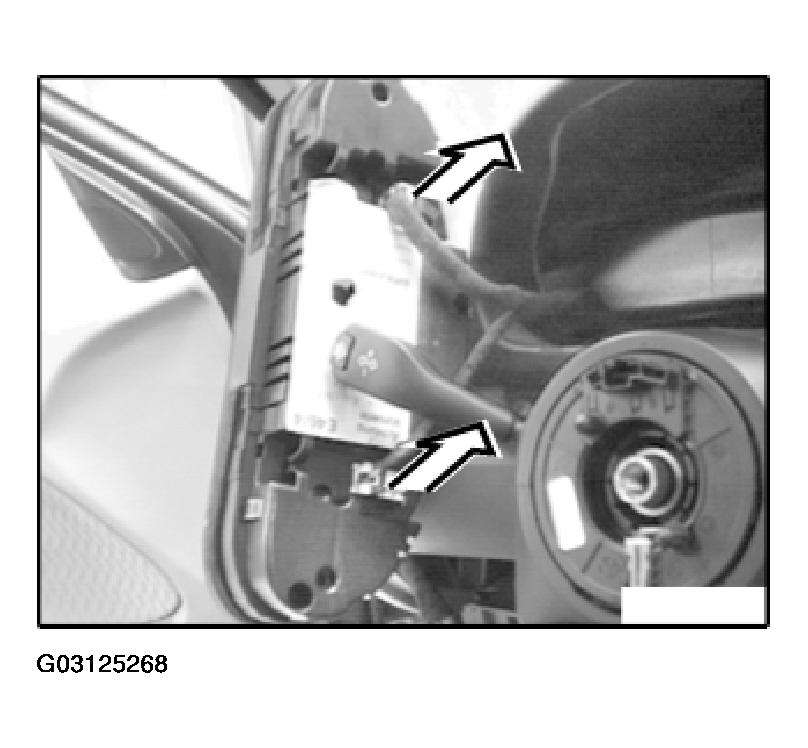

Pull off connectors.

Fig 2: Removing Connector

Courtesy of BMW OF NORTH AMERICA, INC.
