13 5 280 Plugs for fuel lines
WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2006 BMW M3, 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW M3, and 2005 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL DESIGNATION
| Note: | For sealing off fuel lines when removing and installing engine - Applicable to M62 only fitted in E39 / M52 only fitted in E38 / S50B32 only fitted in E36 / N62 only fitted in E65 / M54 in E83. |
| Series: | E36, E38, E39, E46, E60, E61, E63, E64, E65, E66, E67, E83, E85, R50, R52, R53, RR1 |
| Engine: | M52, M54, M62, N40, N42, N62, N73, S50B32, W10, W11 |
| Storage location: | B16 |
| SI number: | 1 18 96(163) |
| Order number: | 13 5 280 |

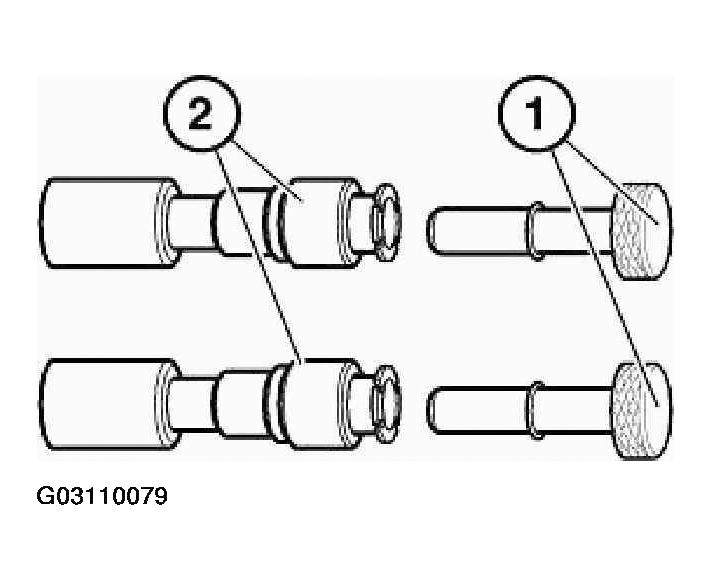

| Plugs for fuel lines | |
| Consisting of: | |
| 1 = 13 5 281 | Seal (2 x) |
| Note: | For sealing quick couplings |
| 2 = 13 5 282 Seal (2 x) | |
| Note: | For sealing fuel lines |
