67 31 531 Removing and installing/replacing drive for backrest angle adjustment (front seat removed)

Saloon/sedan, coupe, touring:

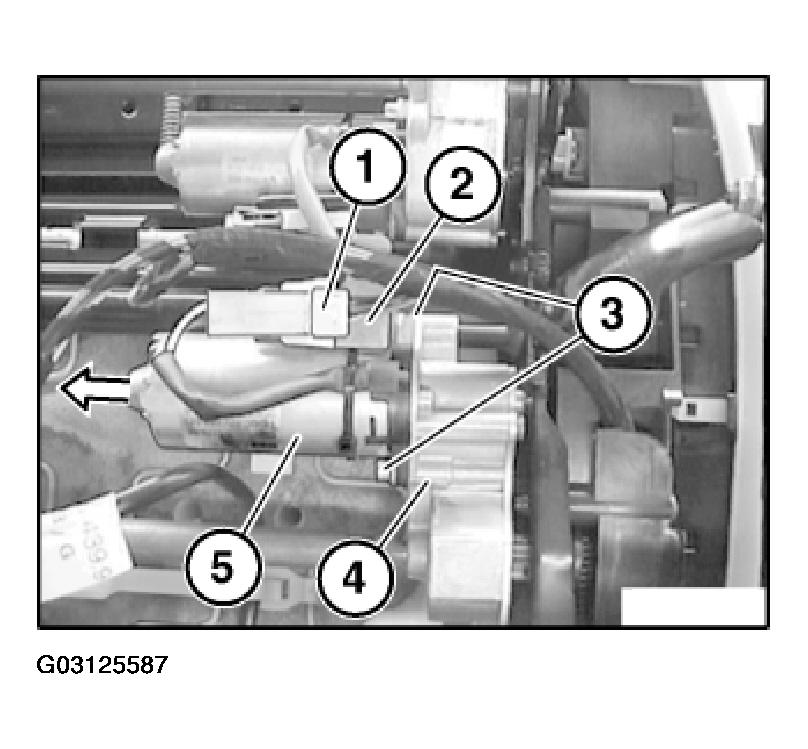

Disconnect plug connection (1).

Release screws (3).

Remove drive for backrest angle adjustment (5) with fixture for plug connection (2) in direction of arrow from flange (4).

If necessary, remove inner drive shaft from drive for backrest angle adjustment (5).

Fig 1: Removing Drive For Backrest Angle Adjustment

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

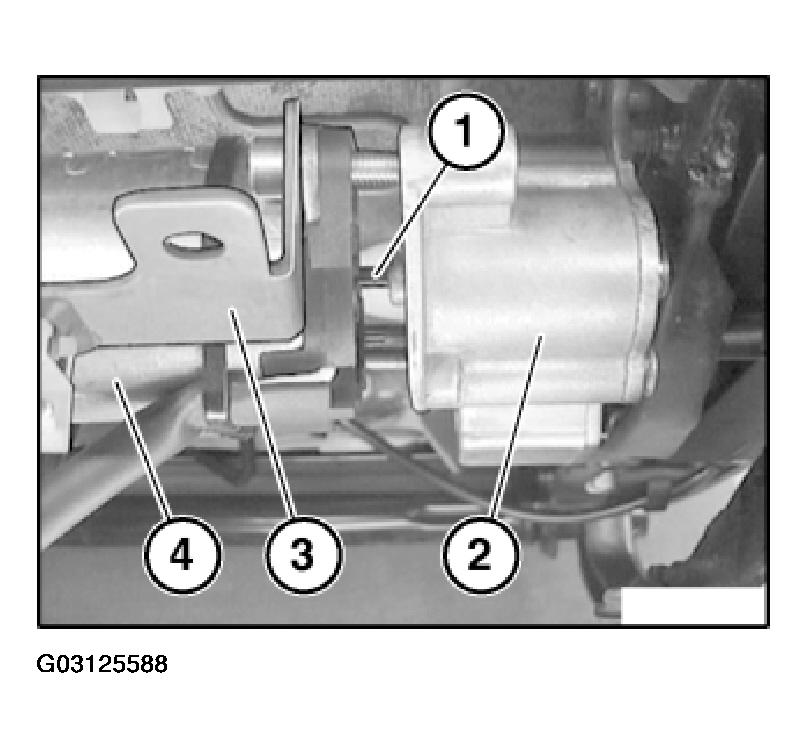

Make sure drive shaft (1) is correctly seated.

Ensure fixture for plug connection (3) and drive for backrest angle adjustment (4) on flange (2) are correctly seated.

Fig 2: Identifying Drive Shaft

Courtesy of BMW OF NORTH AMERICA, INC.

Convertible:

Remove rear panel on front seat backrest. See 52 14 198 REMOVING AND INSTALLING/REPLACING REAR PANEL ON LEFT OR RIGHT FRONT SEAT BACKREST (NORMAL/ELECTRIC)

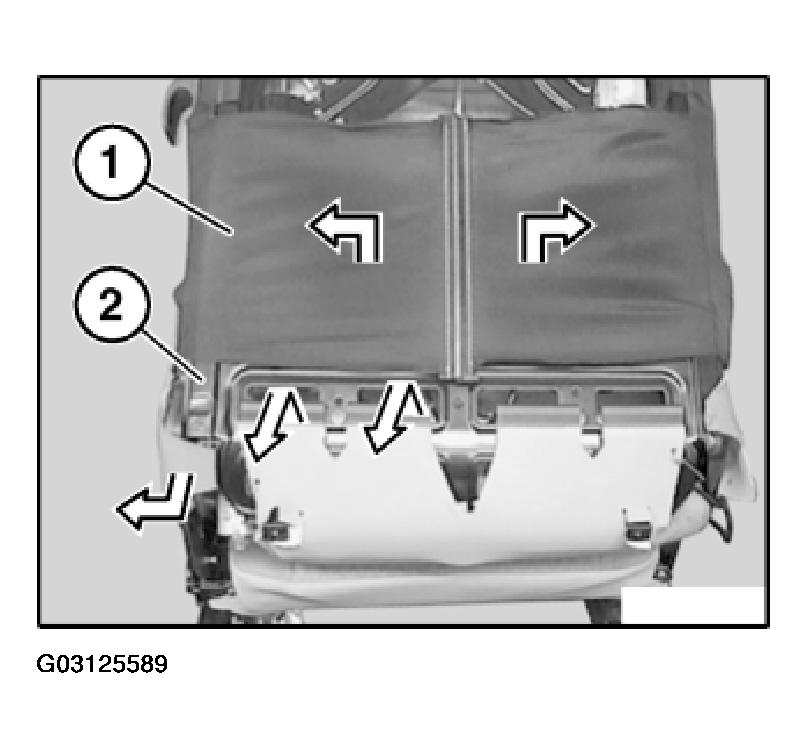

Unhook backrest cover (1) from backrest frame (2) as illustrated and fold over.

Fig 3: Unhooking Backrest Cover From Backrest Frame

Courtesy of BMW OF NORTH AMERICA, INC.

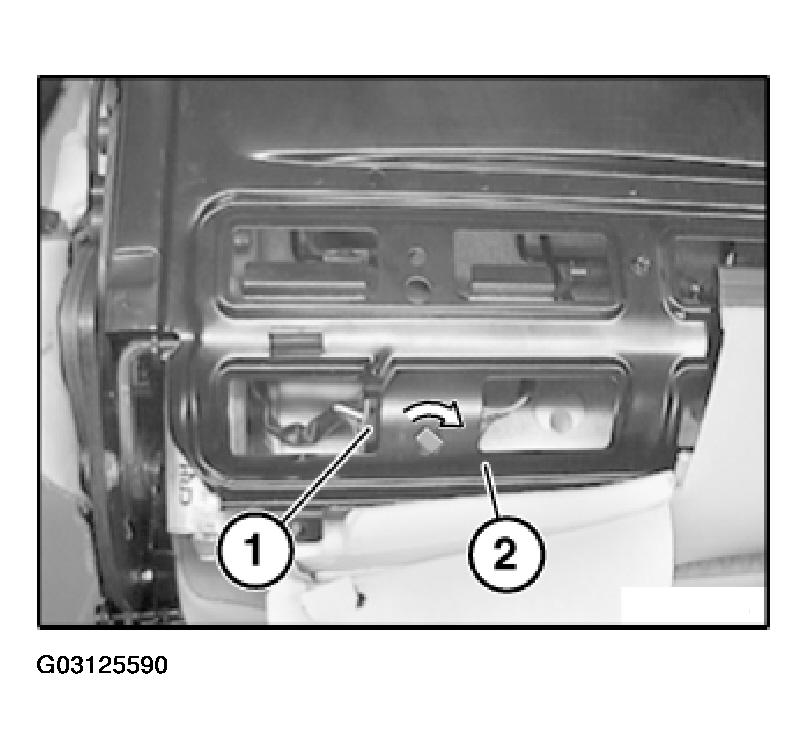

Turn plug connection (1) in direction of arrow and unclip from backrest frame (2).

Disconnect plug connection (1).

Fig 4: Turning Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

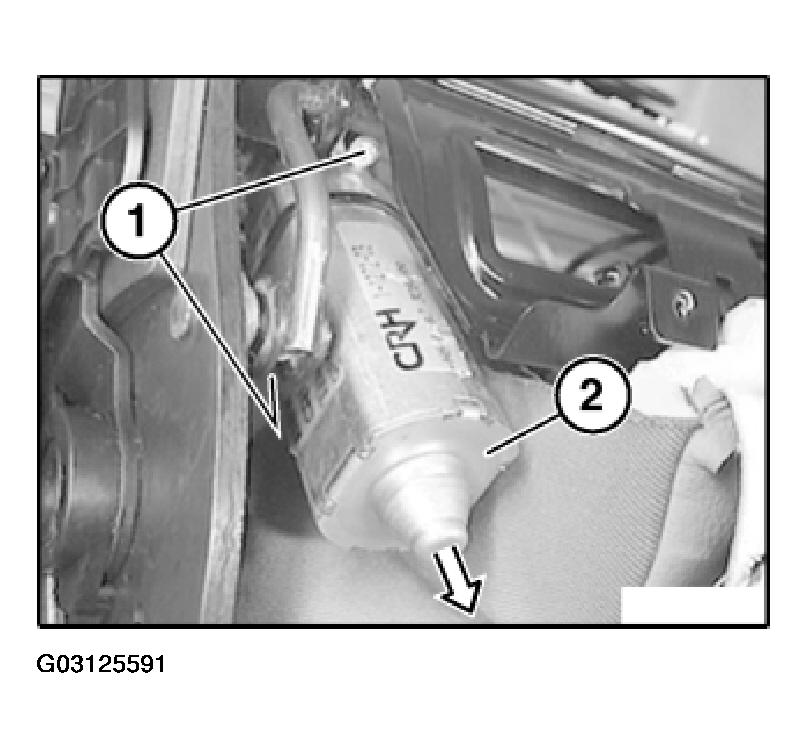

Release screws (1) and remove drive for backrest angle adjustment (2) in direction of arrow.

If necessary, remove inner drive shaft from drive for backrest angle adjustment (2).

Fig 5: Removing Drive For Backrest Angle Adjustment

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Ensure drive for backrest angle adjustment (2) is correctly seated on inner flange.

Installation:

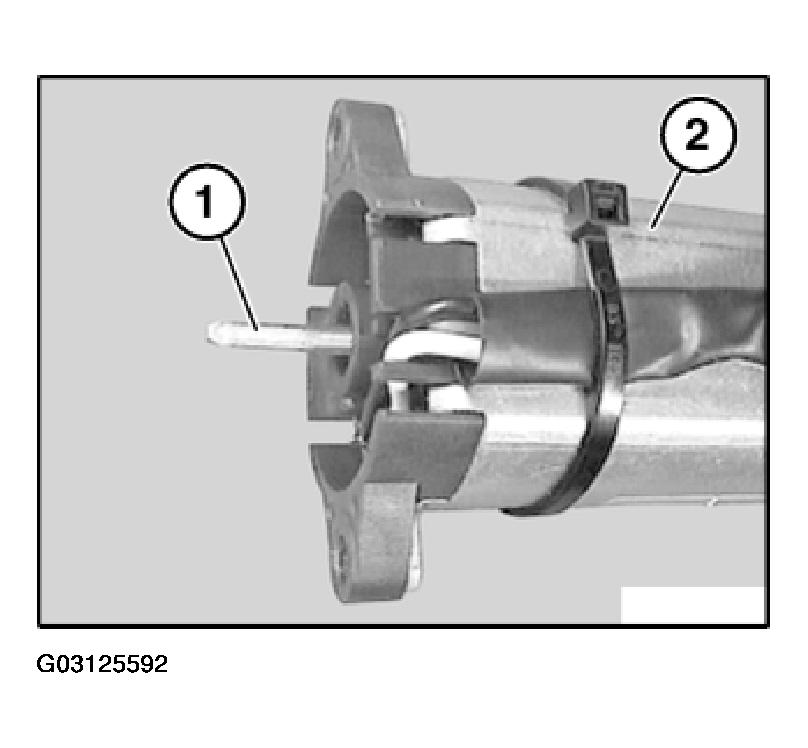

Ensure drive shaft (1) is correctly seated in drive for backrest angle adjustment (2).

Fig 6: Identifying Drive Shaft

Courtesy of BMW OF NORTH AMERICA, INC.
