63 99 076 Replacing lamp for left xenon light (saloon/sedan, touring)

WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW 330xi, 2005 BMW 330i, and 2005 BMW 330Ci. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow instructions for handling light bulbs (exterior lights).

Up to 09/2001:

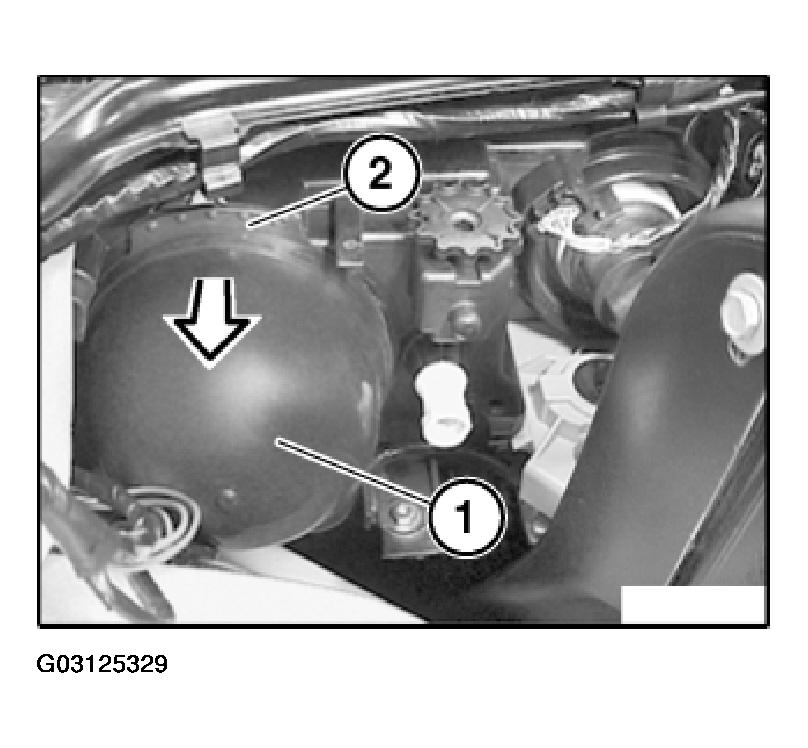

Detach cover for low beam (1) in direction of arrow.

Installation:

Ensure cover for low beam (1) and lug (2) are correctly seated.

Fig 1: Detaching Cover For Low Beam In Direction Of Arrow

Courtesy of BMW OF NORTH AMERICA, INC.

From 09/2001:

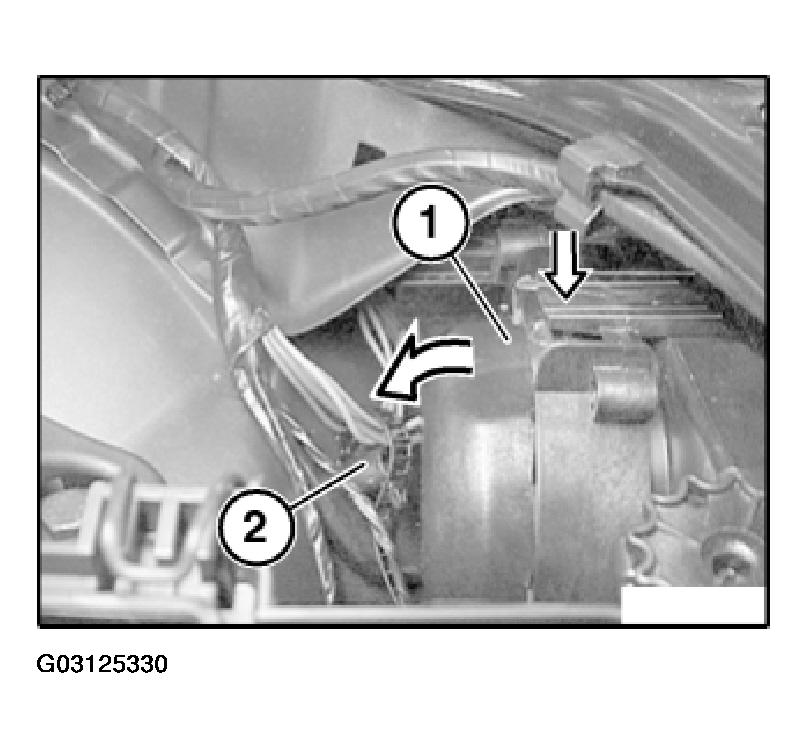

Unlock cover for low beam (1) and remove.

If necessary, open cable holder (2) and screw off.

NOTE: Feed out cover for low beam (1) carefully so as not to damage components underneath.

Fig 2: Removing Cover For Low Beam

Courtesy of BMW OF NORTH AMERICA, INC.

All:

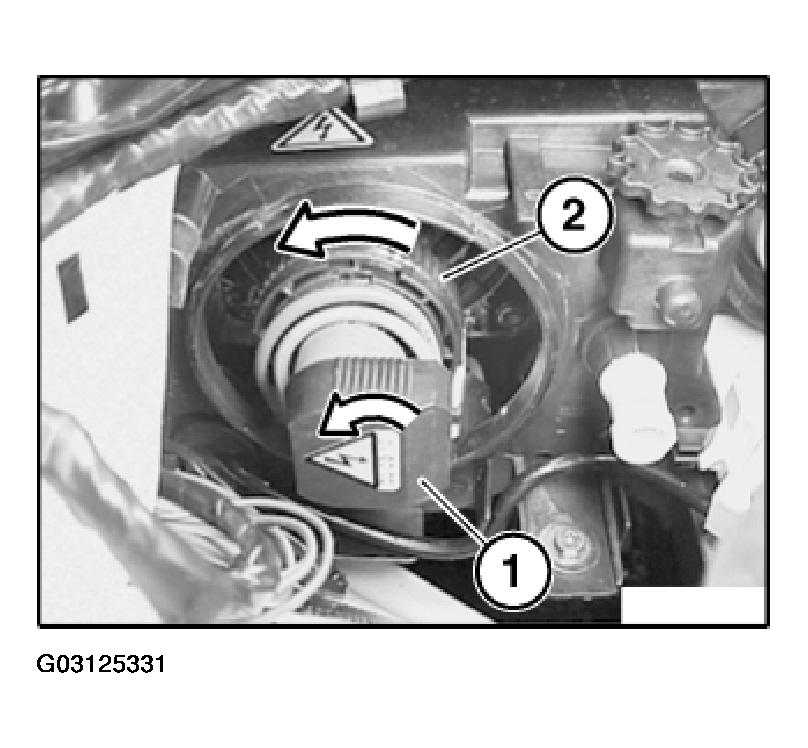

Turn ignition unit for xenon light (1) in direction of arrow and remove.

Turn retaining ring (2) in direction of arrow and remove.

Remove xenon lamp.

Installation:

Note type of bulb.

Fig 3: Removing Xenon Lamp

Courtesy of BMW OF NORTH AMERICA, INC.
